Tilt window part replacement

Start a new Discussion

Home Owner from South Lee Mass

Nov 2, 2025 6:40 am

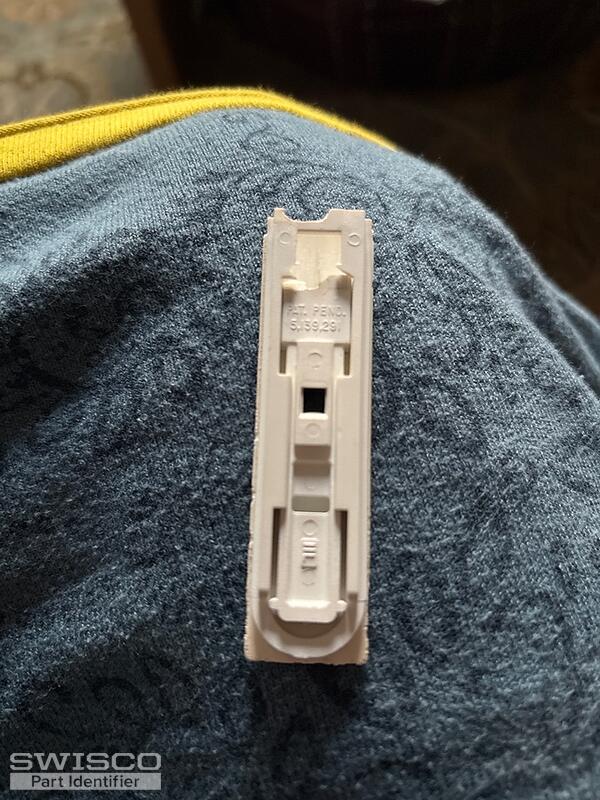

Hi, I have several window that need replacement parts for the tilt mechanism. I'm not sure what kind of window there but I think they're mastic. Here's some photos of what's existing. Wondering if you can tell me what I need? Gratefully, Trish

4 user uploaded images

4 Replies

Bob from SWISCO

Nov 2, 2025 12:09 pm

Thanks for posting. These are called tilt latches. Start by comparing to the 26-244A and 26-243A pair. These are similar, but review the dimensions and see if they match what you have.

Dimensions for 26-244A

Dimensions for 26-244A

Dimensions for 26-244A

Dimensions for 26-244A

Home Owner from South Lee Mass

Nov 9, 2025 8:16 am

Thank you.
My measurement is 2 7/8 (not 5/8) by 3/4 inch. Got anything in that range?

Bob from SWISCO

Nov 9, 2025 1:30 pm

That sounds closer to the 26-391 and 26-390 Slim Tilt Latches, Please compare.

Alternate image for 26-390

Alternate image for 26-390
