Tilt window pin guid

A contractor from Athens tx says:
July 11, 2019
No luck so far I have naught 2 different ones from you please help
Thumbnail of the uploaded file named 20190710_205231.jpg

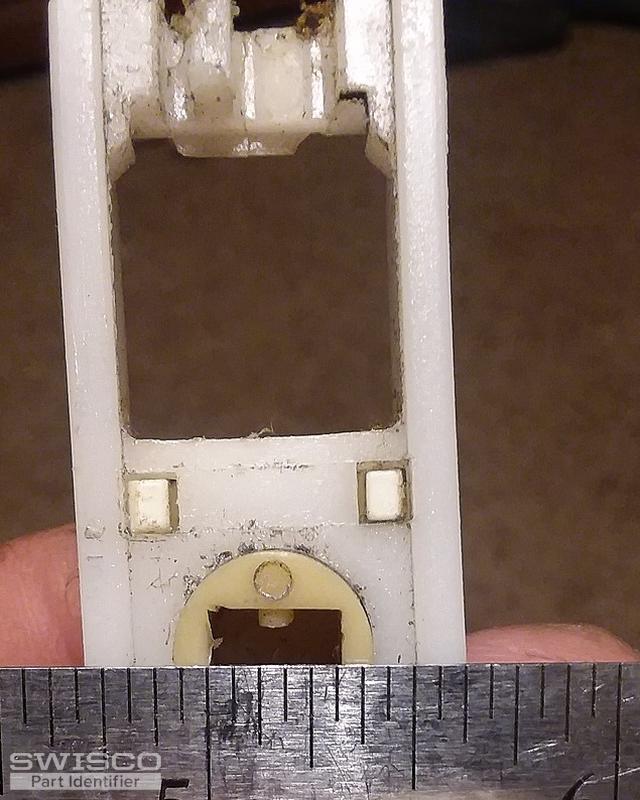

Thumbnail of the uploaded file named 20190710_205052.jpg

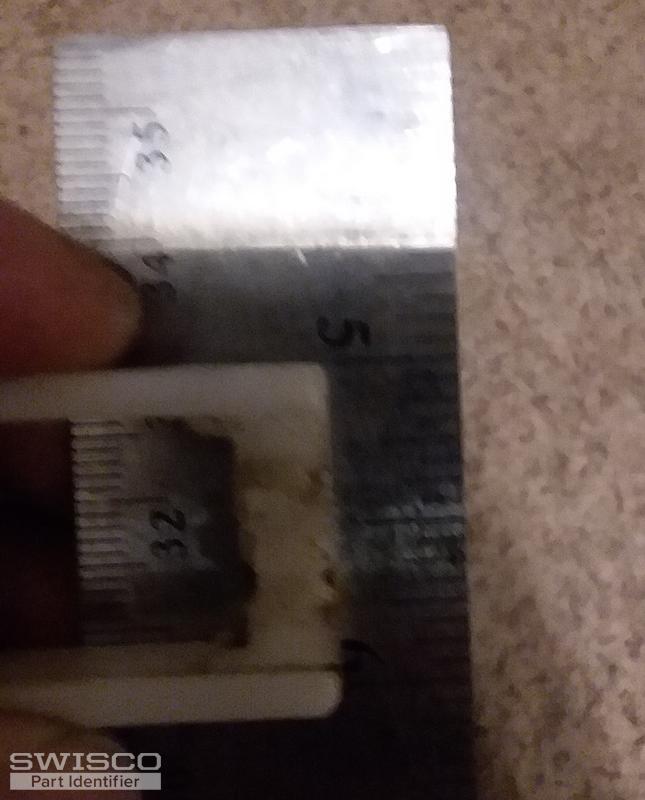

Thumbnail of the uploaded file named 20190710_205011.jpg
Profile picture of Bob
Bob from SWISCO responded:
July 17, 2019

Thanks for writing in. I can't be entirely sure what you need without knowing your pivot shoe's dimensions exactly; it's a bit difficult to read off a ruler. It looks like it might be 3/8" thick, but I can't really say how wide. Start by looking over our 15-045, 15-134, or 15-212. Compare all the dimensions to your old shoe and see if one of these options matches best.
Pivot Shoe, 3/8" Thick
Pivot Shoe, 3/8" Thick
15-212
$2.93
Pivot Shoe, 3/8" Thick
Pivot Shoe, 3/8" Thick
15-045
$1.85
Pivot Lock Shoe, 3/8" Thick
Pivot Lock Shoe, 3/8" Thick
15-134
$2.79
