Tilt window piviot shoe

A home owner from Concord NC says:

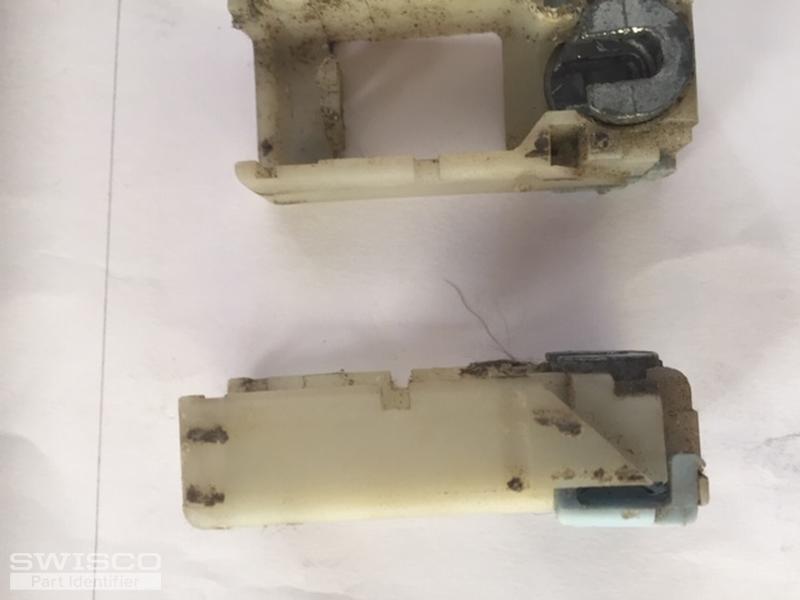

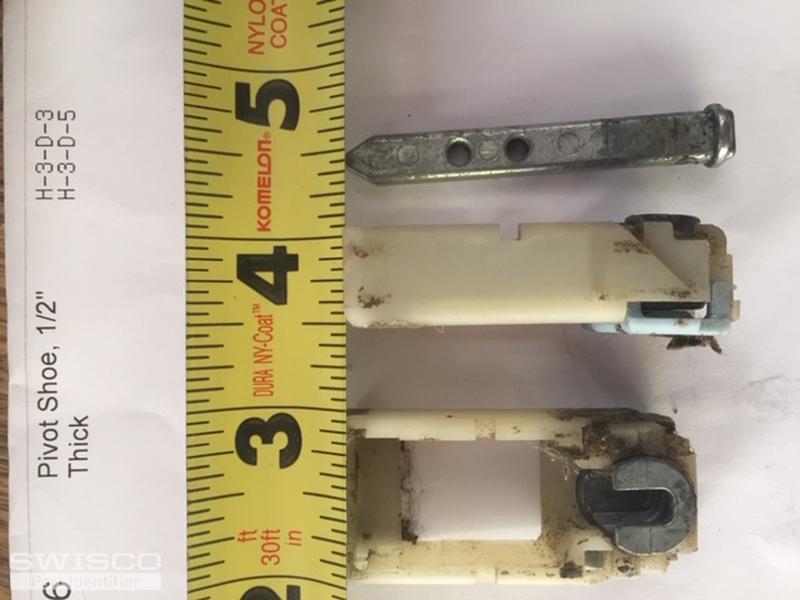

These were some of the bad ones. There is a metal piece that normally goes on the top part that is broken and missing. I didn't look closely enough and ordered the incorrect shoes originally. These have an open cam roughly 3/16.2 1/16 long. The width is 15/16. and the depth is 9/16 for most of the shoe and almost 3/4 at the base with the cam and what looks like a guide light blue in color. It does look very similar to the 15-179. Any suggestions? Thanks.
Thumbnail of the uploaded file named IMG_0418.JPG
Thumbnail of the uploaded file named IMG_0419.JPG
Thumbnail of the uploaded file named IMG_0420.JPG
Thumbnail of the uploaded file named IMG_0421.JPG
Thumbnail of the uploaded file named IMG_0417.JPG
Profile picture of Tom
Tom from SWISCO responded:

Hello! Your pivot shoe is no longer made, unfortunately. Our 15-179 is the best option we have. It doesn't have the same style cam, though, which means you'll have to use our 26-021 pivot bar to replace your old one. I'm sorry that we cannot offer a closer match.
