Tilt window pivot bar

Start a new Discussion

Handy Person from El Paso, TX

Jun 13, 2020 7:21 pm

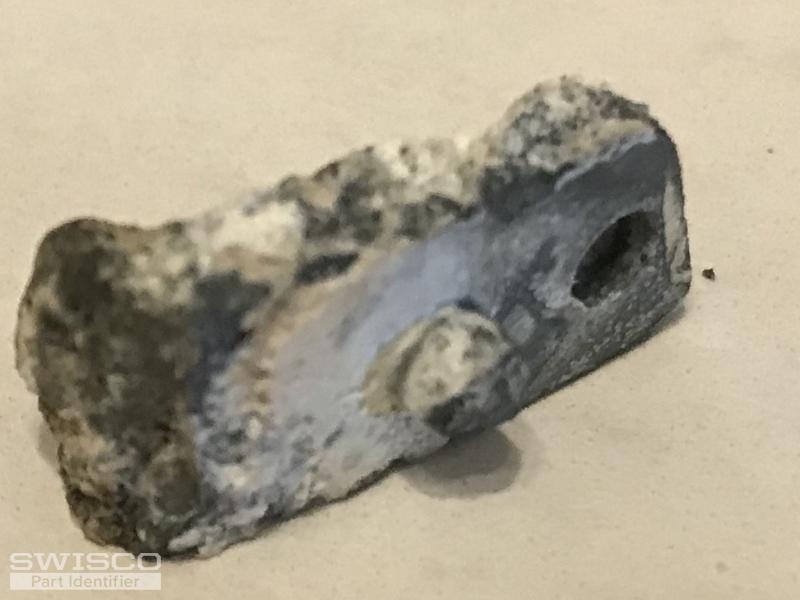

Although I found other parts I need on your site, I could not find this one. Do you have it?

4 user uploaded images

5 Replies

Bob from SWISCO

Jun 17, 2020 9:36 am

Is there another version of this pivot bar you have available that's less damaged? I'm not sure if we have a match, but we'll do our best to see what we have.

Handy Person from El Paso, TX

Mar 5, 2022 3:49 pm

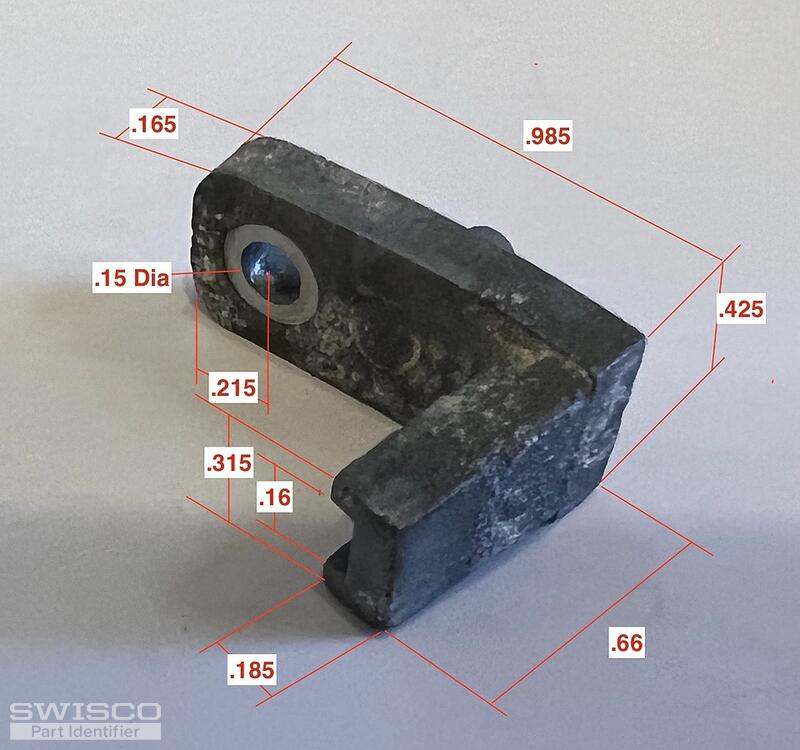

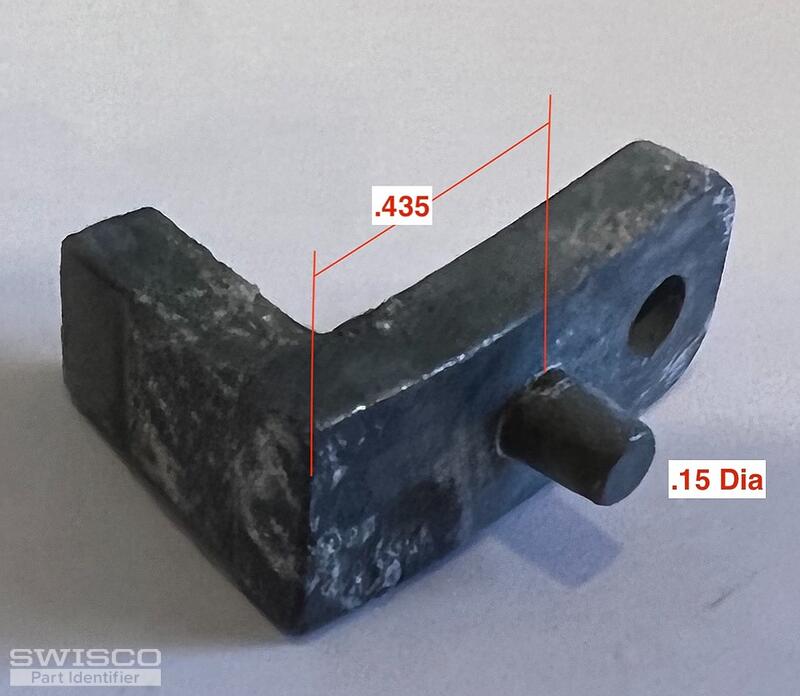

Here is one of my pivot bars that still works. Do you have this?

2 user uploaded images

Handy Person from El Paso, TX

Mar 5, 2022 9:09 pm

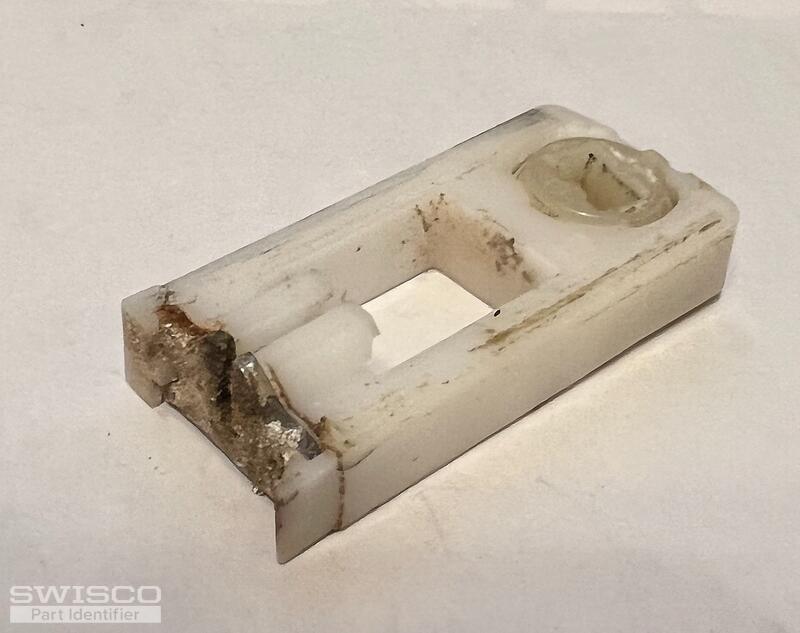

Also, I found that the pivot shoes that I had ordered (15-045) do not fit this pivot bar. The slot for the pivot bar is not wide enough

It appears that pivot shoe 15-212 would fit. See the image of my current one.

Could you confirm?

1 user uploaded image

Paul from SWISCO

Mar 8, 2022 10:24 am

Our 26-361 pivot bar is not exact size of your original, but it will fit in the 15-045 pivot shoe. For the original pivots you have, you can use the 15-212 pivot shoe instead.
