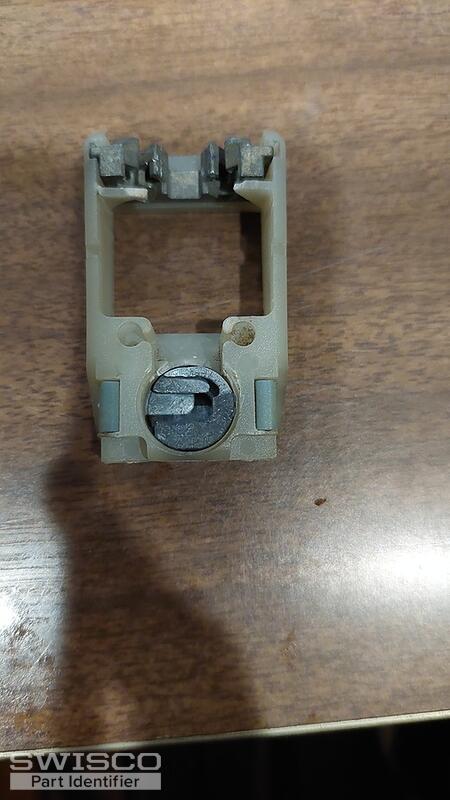

I measured it as 2 and 1/8 th long , 1/2 inch thick, and 1and 1/4 inch wide
I think product code# 15-188 is the one I need just want to know if you agree
Tilt window shoe
Quick Learner from N y.
Sep 23, 2024 10:02 pm
4 user uploaded images
2 Replies
Jasmine from SWISCO
Sep 27, 2024 12:10 pm
Thanks for posting! Your pivot shoe does remind me of the 15-188 Pivot Lock Shoe but it also has a similar design to our 15-178. The difference between these two shoes is the width and the size of the brake pad; the 15-178 has a .065 brake pad and the 15-188 has a .055 brake pad.
Be sure to double check the dimensions to confirm which of these is the right fit.
Dimensions for 15-178
Alternate image for 15-188
