Tilt windows

A home owner from Marietta GA says:
January 12, 2018
Some ropes broken. Shoe is stuck at bottom does not slide up and down track

Are there different sizes or are parts standard?
A home owner from Marietta GA says:
January 13, 2018
I definitely need 4 or so of these.

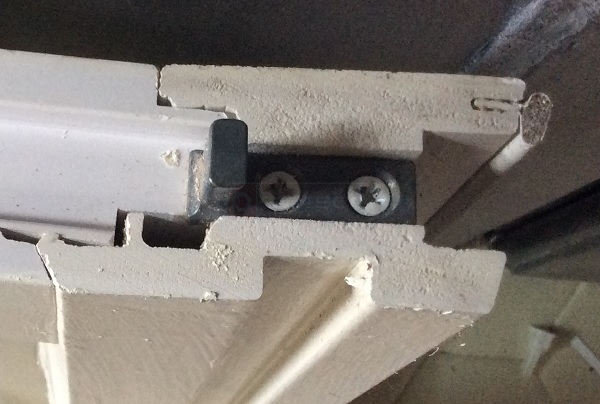

tilt window
A home owner from Marietta GA says:
January 13, 2018
The problem with most of my windows is that the pivot lock shoe is frozen in place so the window either will not go up and down or will not stay up. Tried to remove a pivot lock shoe but I do not have the wider opening in the housing to slip it out.

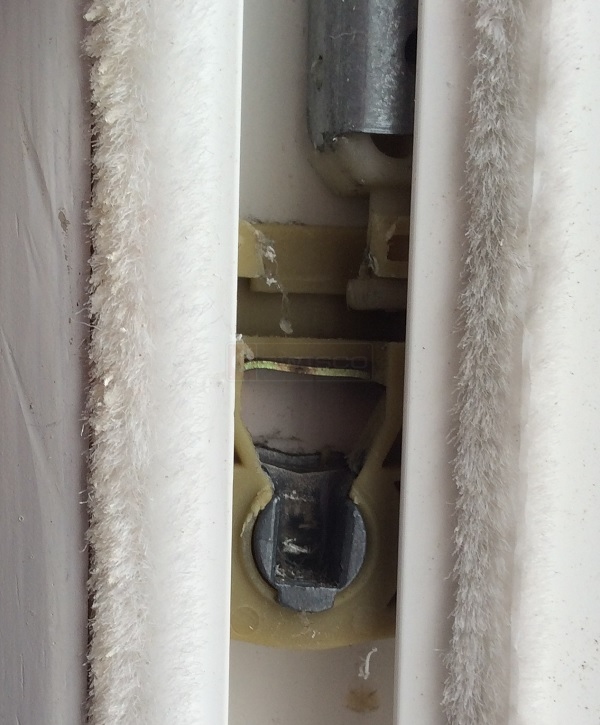

tilt shoe
Profile picture of Paul
Paul from SWISCO responded:
January 22, 2018
Thanks for all your photos. Your tilt bar shows similarities to our 26-402. I would compare dimensions to make sure our part is compatible to yours. The pivot shoe that is stuck could possibly use our 15-216 as a substitute. As for your balance channel, it appears it may have a part close to our 15-224 balance to connect to the pivot shoe. Take a look how the balance attaches at the top of the window. Is it screwed on or hooked on at the top? Also see if the track has a cut out to remove the bottom pivot shoe. I placed some additional media guides on the right hand side of this page that may help. If you should need any further help, I encourage you to take some additional photos and upload them to us to have a look at.
A quick learner says:
February 20, 2018
You guys are miracle workers! I spent a short time today and I have several windows working just like new
Side Mount Pivot Bar
Side Mount Pivot Bar
26-402
$1.38
Inverted Link
Inverted Link
15-224
$0.95
T-Lock Pivot Shoe
T-Lock Pivot Shoe
15-216
$2.55
