Top Sash Cap

Professional from Fort Riley, Kansas

Jul 25, 2018 5:16 pm

I'm looking for a sash cap, I don't know the brand of window. The cap measures; 1" total height, 5/8' wide,9/16" thick, the screw hole is 3/4" from the top. I can't find this on your webpage.

Thank you.

5 Replies

Tom from SWISCO

Jul 27, 2018 2:37 pm

Can we see a photo of your part so that we can begin with the most similar sash guides?

Professional from Fort Riley, Kansas

Aug 9, 2018 12:43 pm

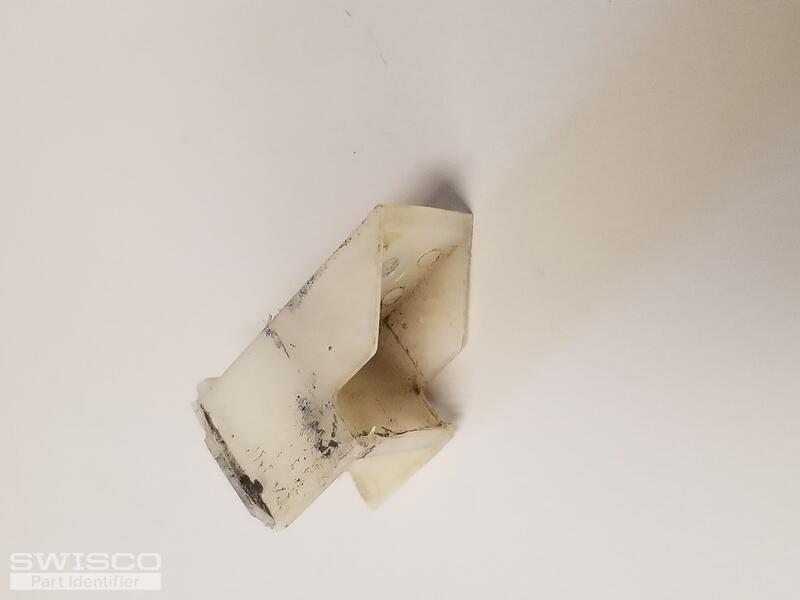

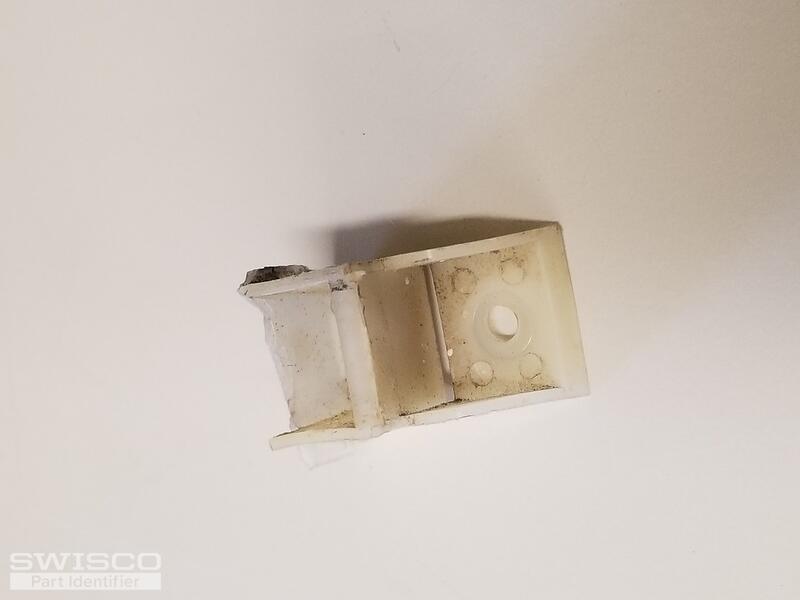

Here you go.

5 user uploaded images

Paul from SWISCO

Aug 9, 2018 3:16 pm

You might be able to use our 18-009 top sash guide as a replacement. The hole placement seems correct, as is the width and thickness. The height isn't critical. What do you think?

Professional from Fort Riley, Kansas

Aug 9, 2018 4:29 pm

Paul,

Thank you, I'll give that one a try. I didn't realize the height wasn't an issue.
