Top Sash Guide Identification

Quick Learner from Lake MAry, FL
Oct 1, 2023 6:47 pm
Hi,

Could you please help me identify this sash guide?
It is from an aluminum window.

Length: 1 3/8"
Width: 5/8"
Depth: 3/8"

Thank you,
Tony
sash1 sash3 sash2
3 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
Oct 3, 2023 2:16 pm
SWISCO
EXPERT

Thanks for posting! There is chance that we can supply you with a replacement top sash guide for your window and the measurements are extremely helpful. However, I'll need to see a photo of an undamaged guide to determine the correct replacement.

Are you able to provide a photo of the undamaged hardware?

Quick Learner from Lake MAry, FL
Oct 3, 2023 6:05 pm
Hi Jasmine,

Thank you for the fast response.

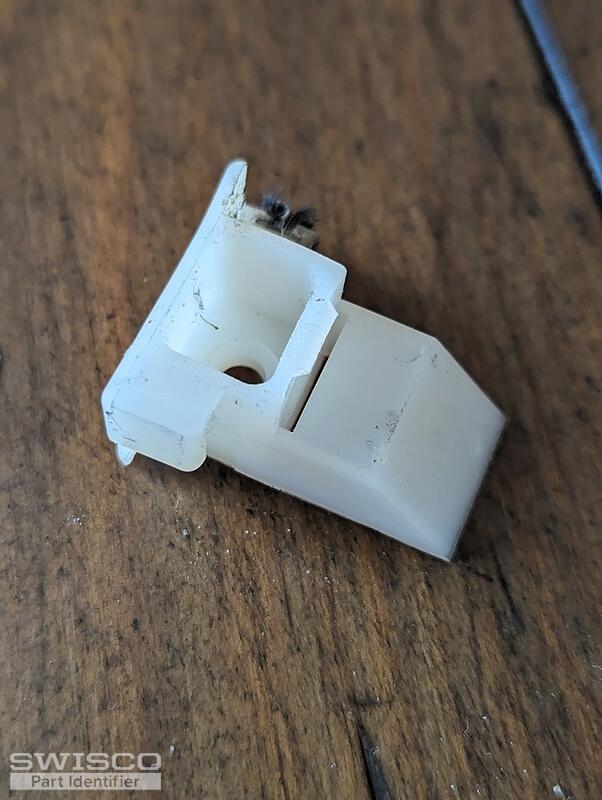

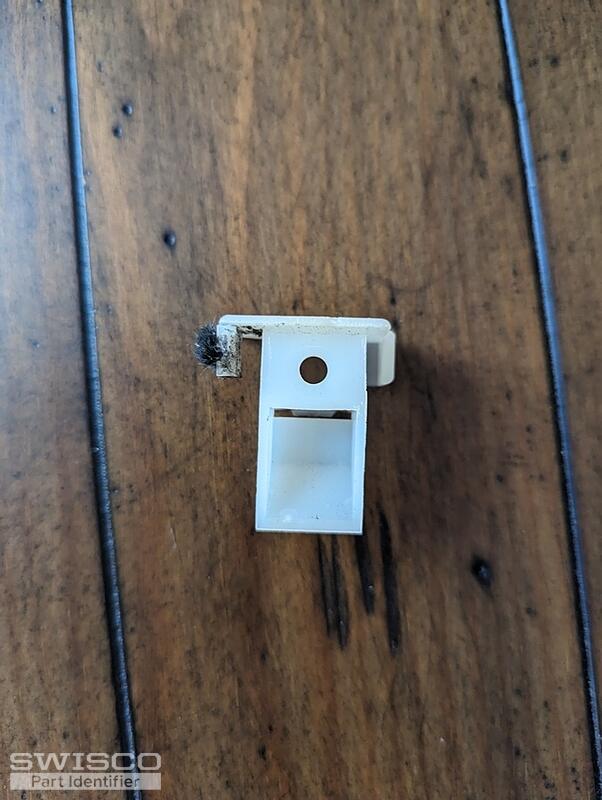

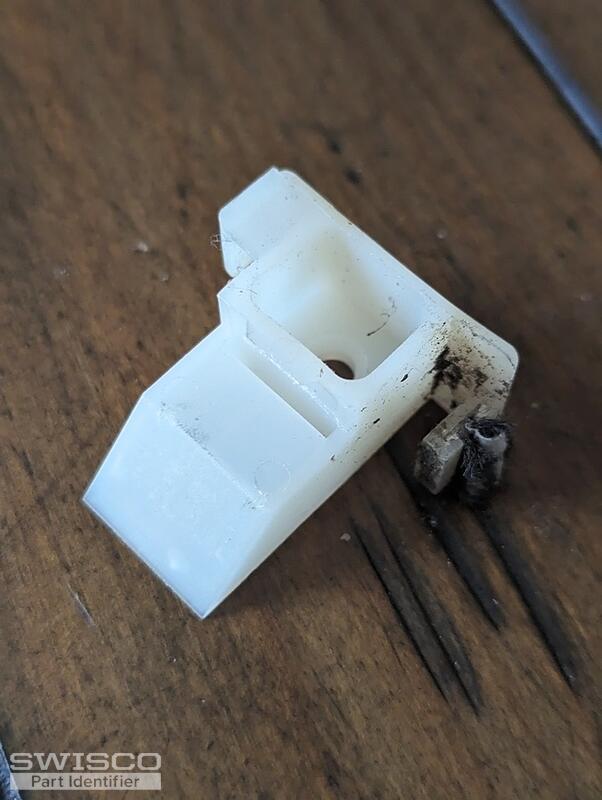

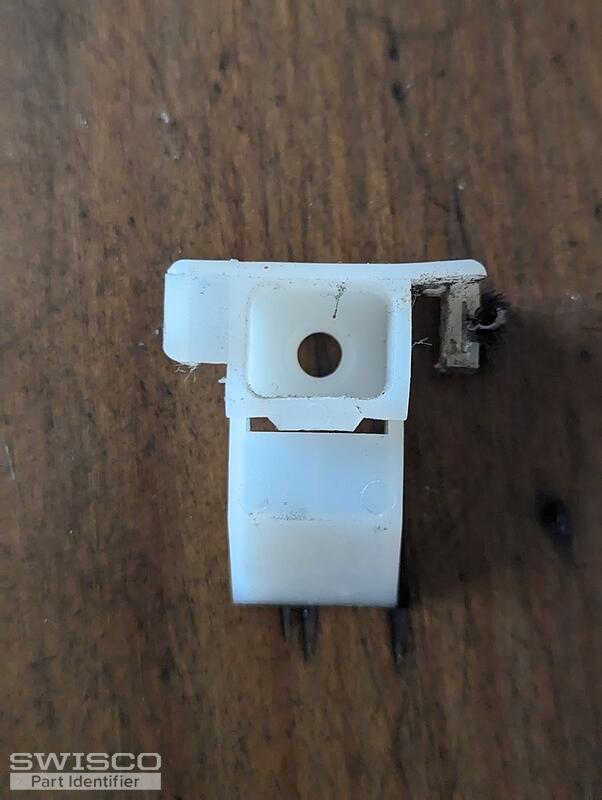

I took these from a working window.

Thank you,
Tony
PXL_20231003_215247851 PXL_20231003_215259784.MP PXL_20231003_215312197 PXL_20231003_215232805.MP
4 user uploaded images
Jasmine
Jasmine from SWISCO
Oct 4, 2023 9:25 am
SWISCO
EXPERT

I'm happy to help and thanks for the photos. Your top sash guide looks a lot like our 18-178 Channel Balance Guide Pair. Take a look over the dimensions and compare them to your existing guide to confirm. I am confident this is the replacement you'll need.

Alternate view of 18-178
Alternate view of 18-178
