Top roller assembly for patio screen door

Quick Learner from Walnut Creek, California

Dec 18, 2020 8:09 pm

I am looking for a replacement roller assembly for my patio screen door.

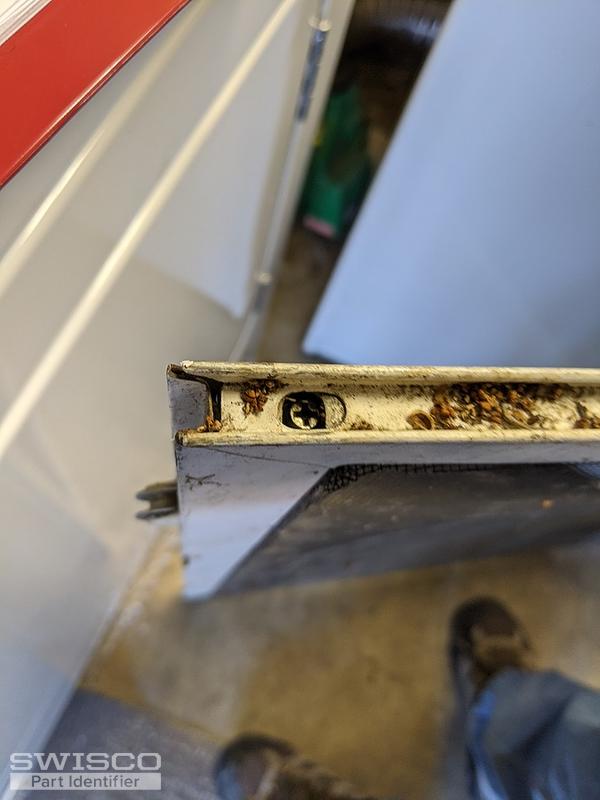

It appears to be spring-loaded with screw adjustment on the side.

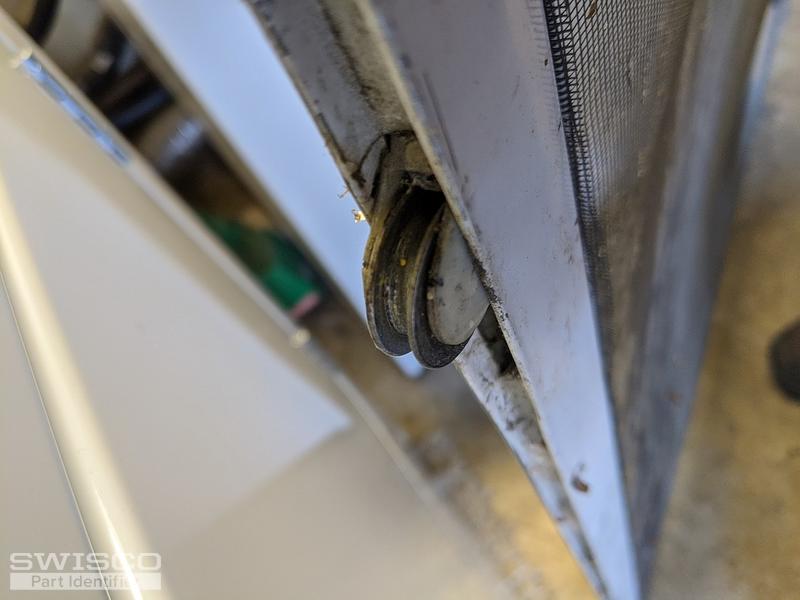

The roller wheel is about 1 inch in diameter, concave, and made of metal.
The wheel holder is white plastic.

I would also appreciate tips on how to remove it.
I try to pull it out with a plier but it would not come out.
Is there a trick to it?

Thanks for any info.

2 user uploaded images

7 Replies

Casey from SWISCO

Dec 21, 2020 9:54 am

Hello, thank you for writing in. I'm afraid I'll need to see the roller removed from the door in order to identify a replacement. We do have the following video which may assist you in the removal process.

Quick Learner from Walnut Creek, California

Dec 28, 2020 6:47 pm

Thank you for the tip.
I managed to remove the roller assembly.

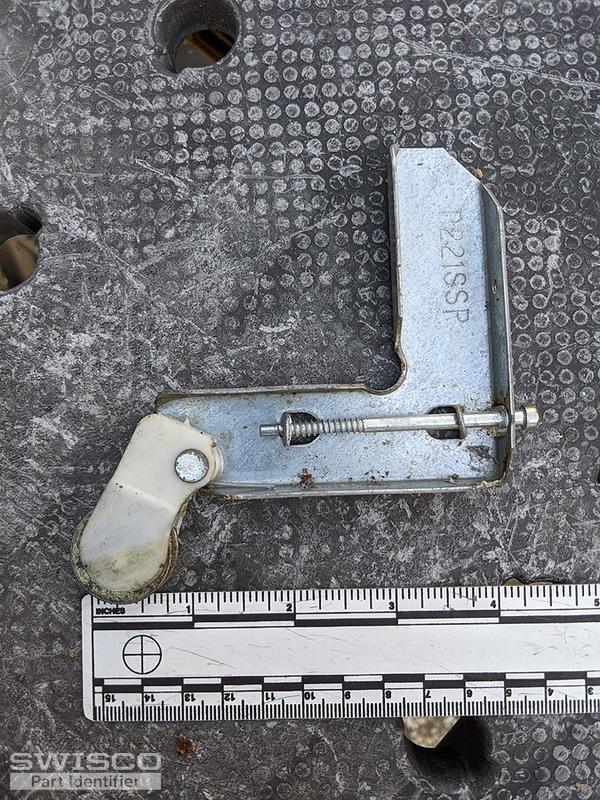

It has the stamped code B221SSP, measured about 4.25 inches on the roller side. Please see my photo.
Please advise.

1 user uploaded image

Quick Learner from Walnut Creek, California

Dec 28, 2020 6:55 pm

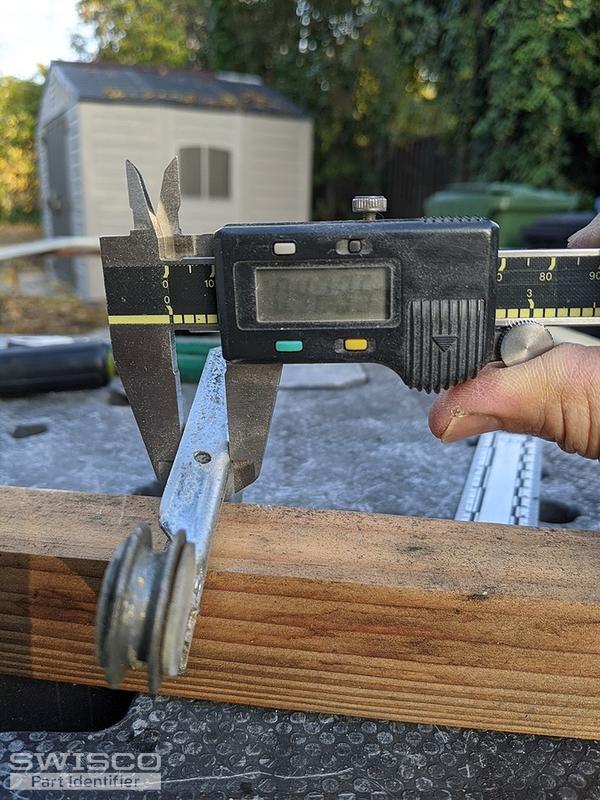

The width of the metal frame is about 0.43-0.45 inches.

1 user uploaded image

Casey from SWISCO

Dec 29, 2020 8:35 am

Great, thanks for these follow up pictures! See our 84-137. Look over the dimensions to confirm that this would be a suitable substitute. Please let me know if you have any further questions.

Quick Learner from Walnut Creek, California

Jan 9, 2021 1:03 am

Thank you, Julia.
I ordered the replacement parts per your suggestion and they match perfectly with the old parts.

Casey from SWISCO

Jan 11, 2021 8:38 am

I'm so glad to hear it! Thank you for choosing SWISCO.com. We really appreciate your business and hope you will consider us for your future hardware replacement needs.
