Top sash guide

A home owner from Irvine, CA says:
October 12, 2019

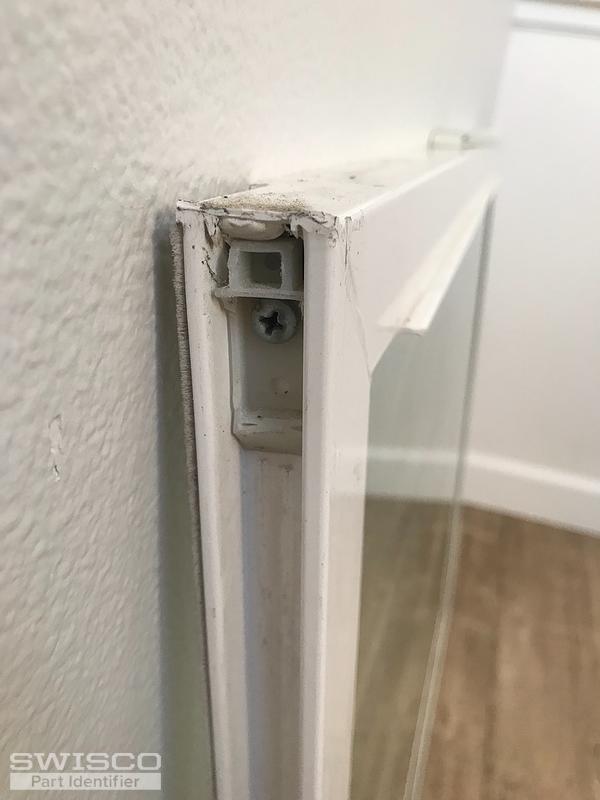

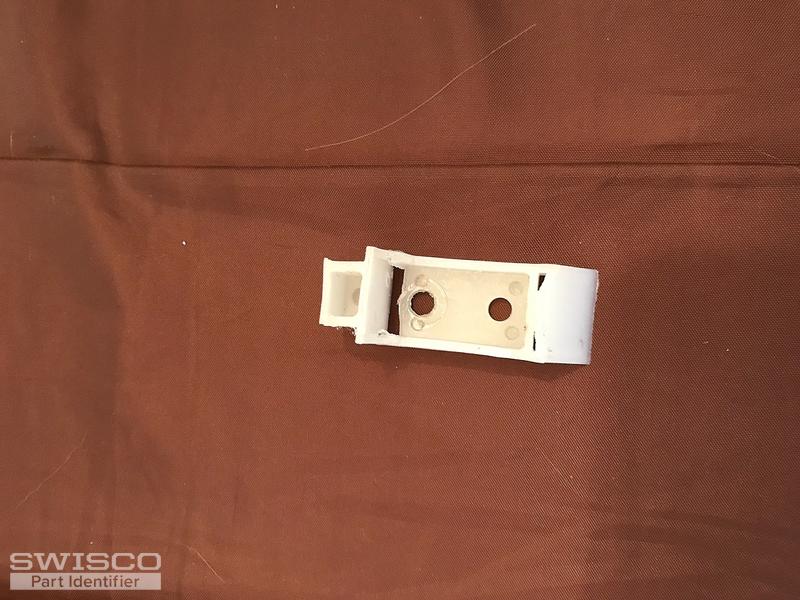

Top sash guide for pacific windows corporation.

5/8" wide x 1.75" long x 0.75" from screw to holding lip

Need help ordering replacement part. Multiple guides have broken lips and several windows in the house fall down and do not stay open.

Thank you.
Thumbnail of the uploaded file named 0CCF392E-53D8-4FDD-8DB3-D99E77AC9DB6.jpeg
Thumbnail of the uploaded file named 76B194A2-97B2-4694-A218-D746393FD91B.jpeg
Thumbnail of the uploaded file named 762F7068-7E90-4919-B71D-6595BA8383B5.jpeg
Thumbnail of the uploaded file named 315F2534-D4F8-45AB-BA19-7573BDFA804D.jpeg
Thumbnail of the uploaded file named 11B62386-AA0C-4FDF-A774-EA40E4245269.jpeg
Profile picture of Tom
Tom from SWISCO responded:
October 16, 2019

Your top sash guide isn't made anymore, but you should be able to use our 18-171 as a replacement. You'll have to trim down its top so that it can fit under your sash cap, though. I'm sorry that we couldn't offer you a better match.
A home owner from Irvine, CA says:
October 16, 2019
Thank you, Tom. Why wouldn't the 18-008 work?
Profile picture of Tom
Tom from SWISCO responded:
October 17, 2019

The shaping of the 18-008 is different than yours, the hole placements of the 18-008 doesn't match up with yours, nor do the measurements. Our 18-171 is the closest match we have to your part.
Stepped Sash Guide, Alpine
Stepped Sash Guide, Alpine
18-171
$1.35
