Quick Learner from Paducah ky

Jul 1, 2023 4:31 pm

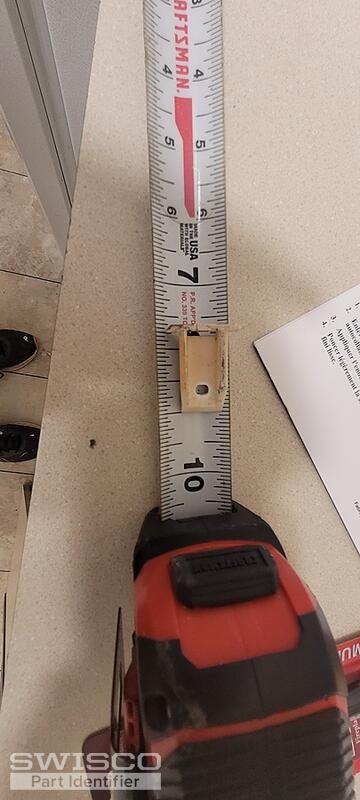

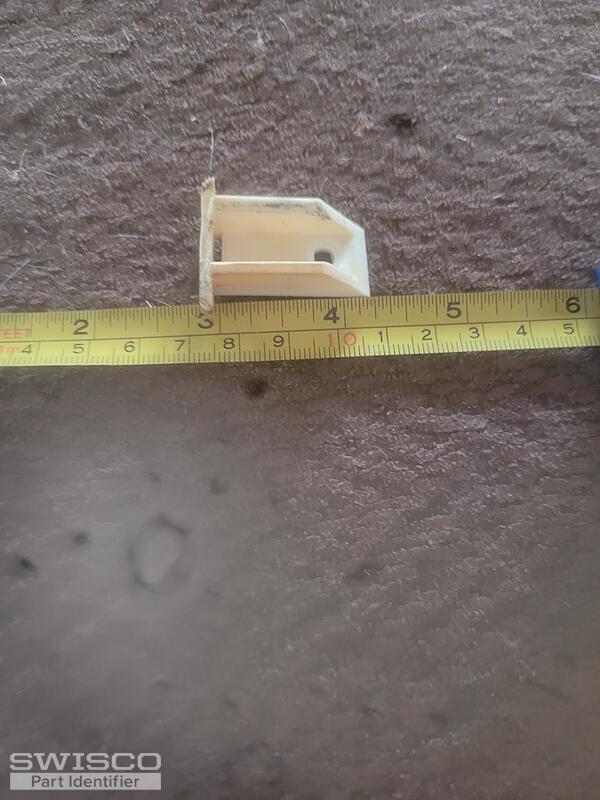

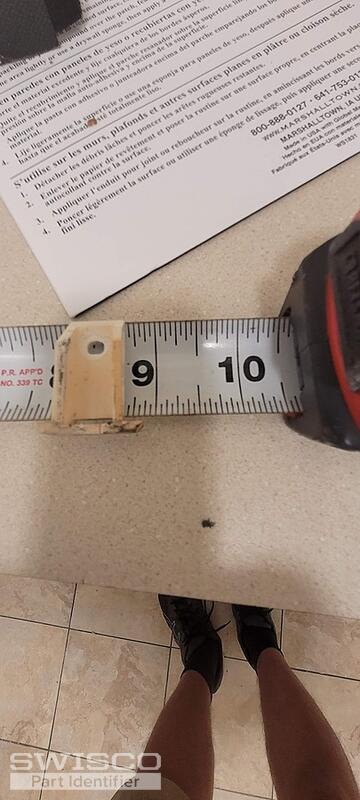

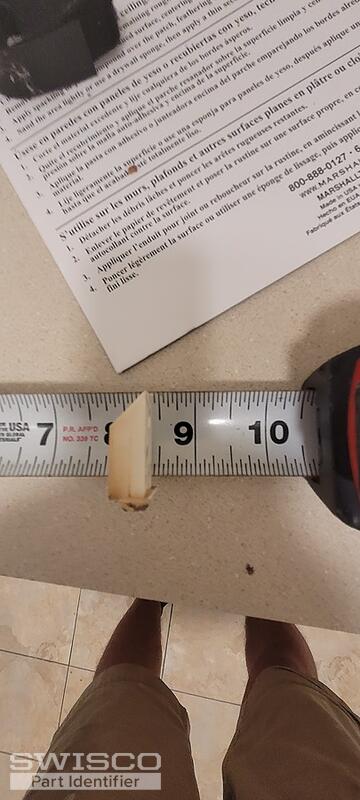

I am having trouble finding a guide that marches. Do you know which one or is there another that will work? W- 5/8 , D- 716 L-1 1/4 hole 7/8 from top, top w 1" to 1 1/16
Thank you

5 user uploaded images

8 Replies

Lauren from SWISCO

Jul 3, 2023 11:59 am

Hello, thank you for posting,

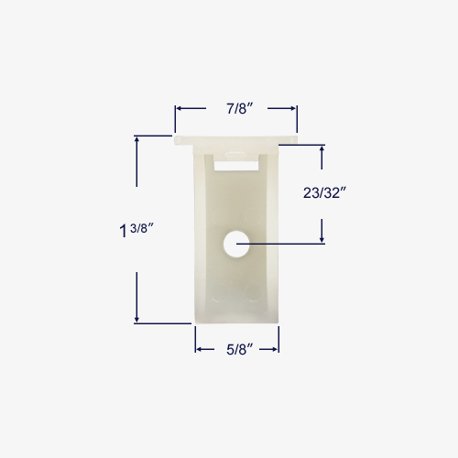

Unfortunately we do not have an exact match for this top sash guide. The closest we can provide is the 18-190, but I am hesitant it will be a direct fit based on the dimensions provided and the location of the installation hole. Take a look and let us know what you think!

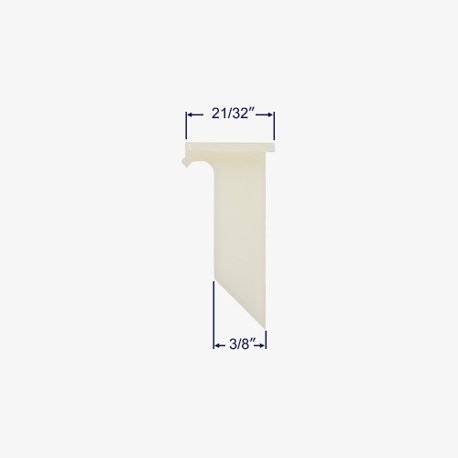

Alternate view of 18-190

Quick Learner from Paducah ky

Jul 3, 2023 3:14 pm

Thank you very much!!! I had it narrowed down to that one and will give it a try. I was hoping you had exact but at least you didn't completely shoot me down.

Thanks again

Lauren from SWISCO

Jul 3, 2023 3:34 pm

No problem, please let us know how it works out for you!

Quick Learner from Paducah ky

Jul 12, 2023 11:10 am

Lauren,

The 18-190 worked great with just a minor adjustment.

I am ready to order some 3830 balances but I dont see a difference in the 350, 390, 395, 370, etc..series.

Thank you

Lauren from SWISCO

Jul 12, 2023 11:30 am

Great to hear!

As for the balances, are you able to show us the top and bottom nylon attachments of your balance? The Series are very similar, but come down to the style of these attachments. Thank you!

Quick Learner from Paducah ky

Jul 12, 2023 12:30 pm

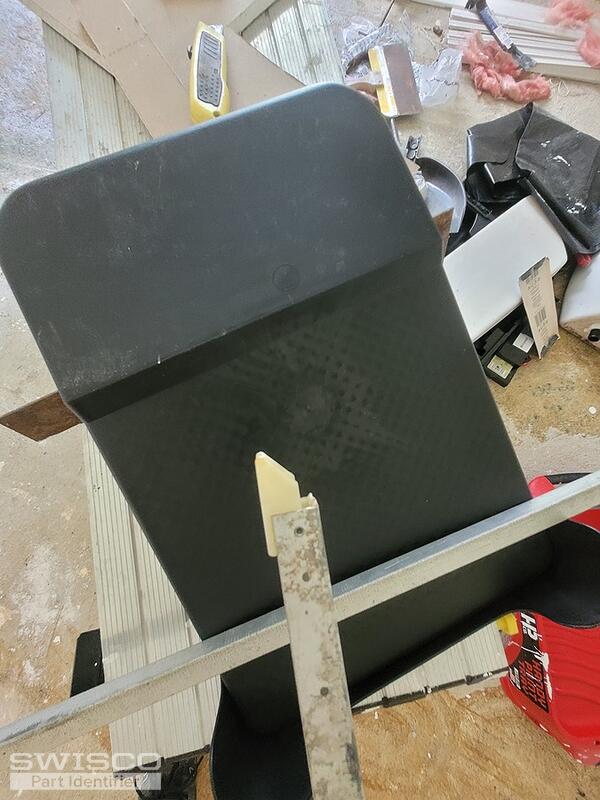

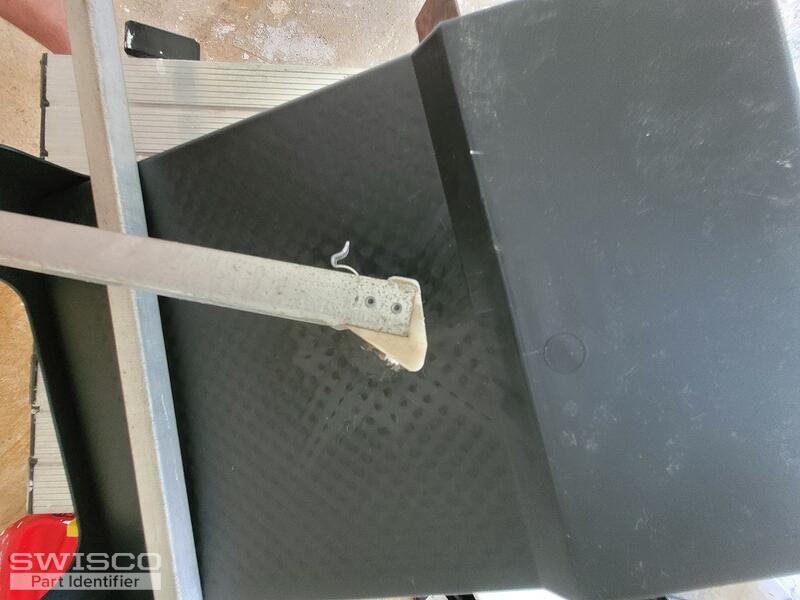

I have it narrowed to S390 or S351.

2 user uploaded images

Lauren from SWISCO

Jul 12, 2023 12:55 pm

I agree with your assessment. The main difference between these two balances is the depth of the bottom shoe attachment. Please review and compare below to determine the best fit.

The length of the metal channel excluding the nylon attachments should measure 39" and you will need a 3830 stamp option.

Let me know if you have any additional questions!

Comparison of the S351 and S390 balance shoes.
