Top sash guide identification

Home Owner from USA

Nov 16, 2015 11:22 am

I would like to order channel balances and other window parts today but am having trouble finding this top sash guide on your website.

The dimensions are as follows:

The total length is 1

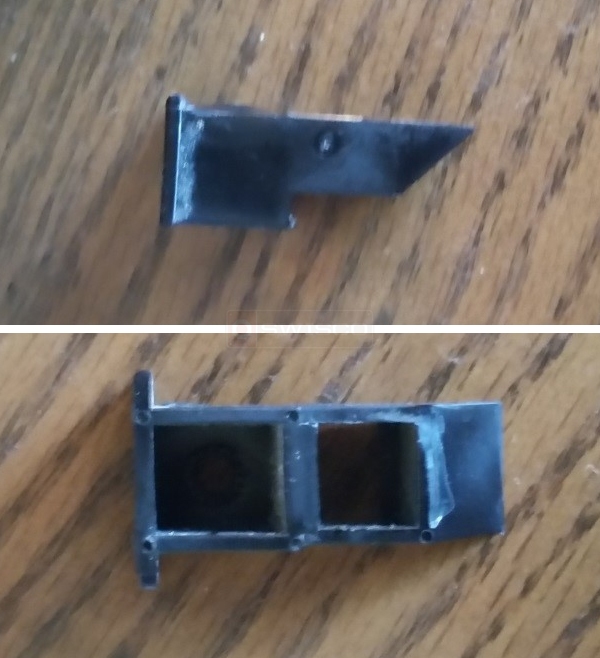

User submitted photos of a top sash guide.

4 Replies

Paul from SWISCO

Nov 17, 2015 1:11 pm

Thanks for posting. I'm afraid your dimensions didn't post, but we will need them. Can you try again? Thanks!

Quick Learner from Camarillo California

Nov 17, 2015 1:53 pm

Hi,

The total length is 1 1/2 inches. The rectangular top is 3/4 inches X 9/16 inches. The top to the center of the hole is 1/4 inches.

Thanks,

Maribeth

Paul from SWISCO

Nov 18, 2015 9:16 am

Great, thanks! The closest I could find to your style and measurements is our 18-166. However, it's still a little different. Carefully go over the other measurements we show for this part and see how they line up to your top sash guide.
