Top widow latch

Quick Learner
Jul 7, 2020 11:11 pm
Trying to identify the broken upper window latch. The second picture shows one that isn't broken
C335C172-82C2-4BDF-B648-E2F0334C6C23 D962BC4B-B064-4E70-8730-81CCE05D2AAA
2 user uploaded images
3 Replies
Bob
Bob from SWISCO
Jul 10, 2020 11:57 am
SWISCO
EXPERT

See our 26-408 Tilt Latches. Look this pair over and see if you think they could work for you.

Quick Learner
Jul 10, 2020 12:19 pm
the ones I have don't slide in from the side of the window. How are these 26-408 latches installed?
Bob
Bob from SWISCO
Jul 10, 2020 3:35 pm
SWISCO
EXPERT

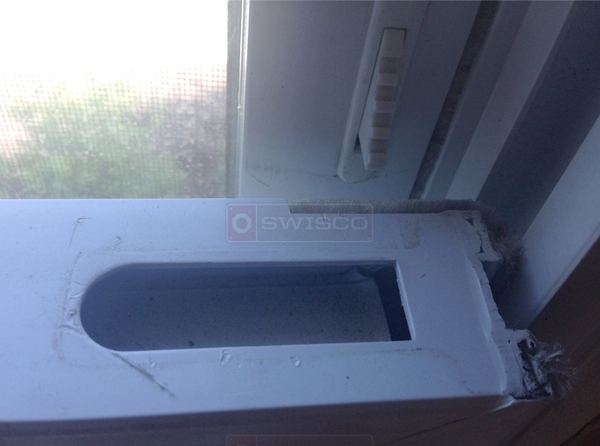

The 26-408 usually installs from the top and clicks in. If you look at the image below, you'll see how the hole looks when the tilt latch is out. The 26-408 has a kind of gap in the front that pinches around that strip of vinyl on the far right side. I'll also provide an image of that to show you what I mean.

26408

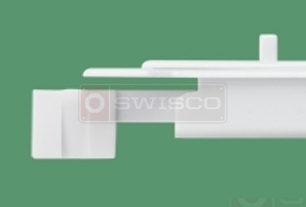

26408side

The 26-408 "scoops" into that gap at an angle. In all honesty, I've never personally removed this latch myself (these things are usually broken by the time I see them), but I would imagine you would use a screwdriver to "unclick" it out of place and slide the back end out first. Let me know if that makes sense to you.
