Top and bottom roller &guide for sliding closet door

Question

Looking to replace top roller and bottom guide on sliding closet doors.
Doors are 92-3/8" tall 36" wide

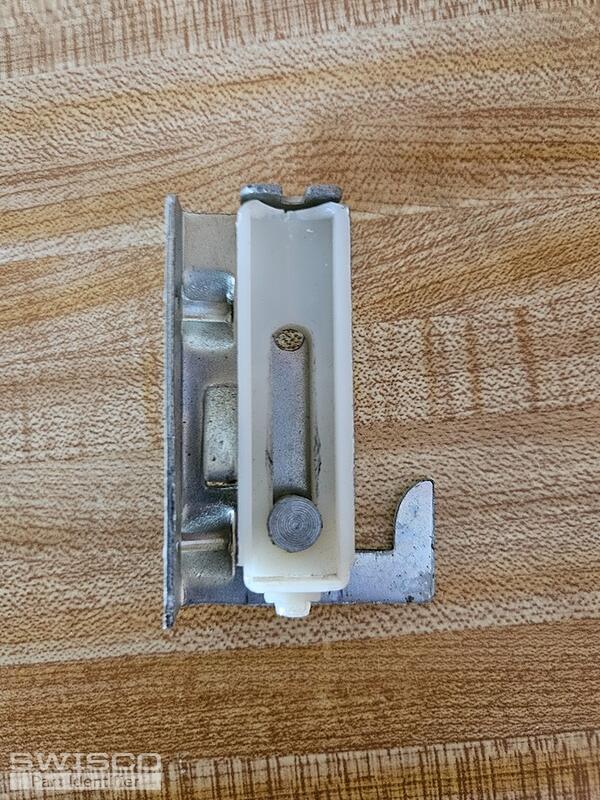

Top roller measures 2-3/4 tall 1-1/4 wide 1-3/4" wide where hook is.
Bottom guide measures 2-3/4" tall 1-3/16" wide 1-3/4" wide where hook is.
You have 23-017 and 23-018A not sure they will work for these 70's closet doors.
Thanks

Casey · Accepted Answer

Hello,

I agree that the 23-017 top rollers and 23-018A bottom guides would be our best replacement options for the parts shown in your photos. The dimensions are close but the overall width of our parts is 1-1/2" as shown below. This could be a problem depending on the clearance needed for the hooks to engage properly with your sash frame. Review the dimensions below and if you decide to give them a try, our return policy can be found here in case you run into any issues. Thanks for posting.

Dimensions for 23-017

Alternate view of 23-017

Dimensions for 23-018A

Alternate image for 23-018A
