Track window

Quick Learner from PA

Aug 11, 2017 10:39 am

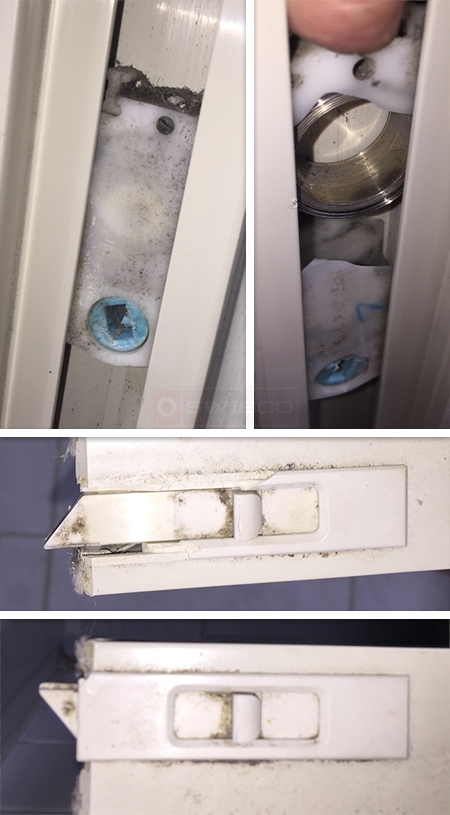

Coil shoe broke and tilt latch. Pictures of broken parts
And good parts. Shoe dimensions are:
2 5/8" long
1 3/8" wide
1/2" deep
Tan/beige in color on tilt latches

Please advise

2 Replies

Paul from SWISCO

Aug 15, 2017 4:08 pm

The coil housing pivot (the shoe) is our 15-087. If you need to replace the coil spring, take a look at the Series 180 coils and match the weight number from your old coil. As for the top tilt latches, they look like our 26-243 and 26-244. That should be everything, but let me know if you have more questions.
