Track and rollers

Home Owner from New Jersey
Hi -have a set of glass doors on a roller and track setup. The bottom track is pretty beat up, so I'd like to replace the track. If new bottom rollers are needed could also replace those per your suggestion.
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

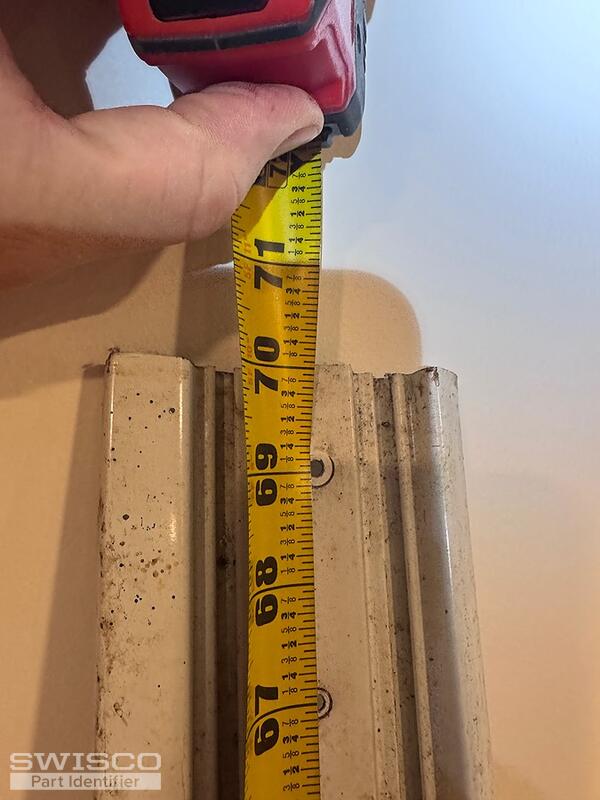

Your bottom door track is a convex style track. Since yours appears to be close to 70" in length, I suggest using the 23-242 72" Sliding Mirror Door Bottom Track. You'll need to use a hacksaw to cut down to the exact size the space requires.

Profile view of sliding mirror door bottom track
Profile view of sliding mirror door bottom track

It does not appear the bottom rollers need to be replaced but you'll need to examine them to determine that. Your exact roller is no longer made but our 23-041 Mirror Wardrobe Door Roller Assembly will work fine in its place.

Dimensions for 23-041
Dimensions for 23-041

Alternate view of 23-041
Alternate view of 23-041
