Traco Channel Balance ID

A contractor from Fort Lauderdale says:
February 9, 2020

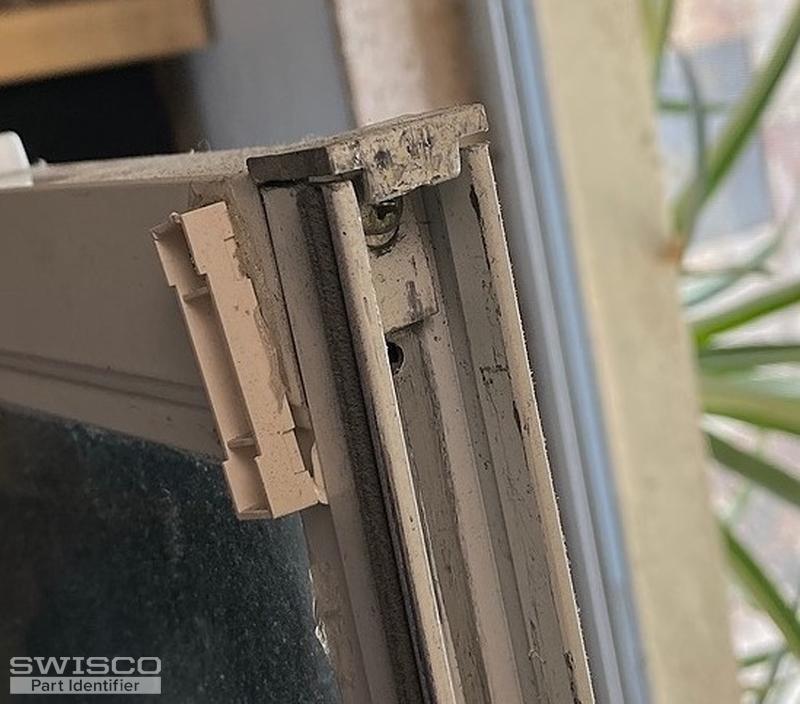

Is a Traco 2100 series, both balances are not working properly, but the the balance shoe and top don't seems to match the combinations you have in stock. The length is 24 and stamp says 2350
Thumbnail of the uploaded file named 1E0E74A2-1278-40A3-9FCF-FB6043778E12.jpeg
Thumbnail of the uploaded file named CA41939E-FA8C-4292-B5ED-1AFDBF7A1F57.jpeg
Thumbnail of the uploaded file named 33A34655-BBA6-4978-965D-AB0F16E34E94.jpeg
Thumbnail of the uploaded file named 8B276313-4768-499A-A5EA-62B42C22EB64.jpeg
Profile picture of Bob
Bob from SWISCO responded:
February 10, 2020

Thanks for writing in. We can custom build a 24" balance, stamped 2350, with the 19-041 Top. Can you tell me the depth, or heel-to-toe measurement, of the bottom nylon shoe? If this depth is 1", then you need the 15-002 shoe. If it's 1-1/8", you'll need the 15-001. Also, how many balances do you need? From there, we'll get this all started for you. Many thanks.
Channel Balance Top, New Security
Channel Balance Top, New Security
19-041
$1.30
Channel Balance Shoe, 1" Depth
Channel Balance Shoe, 1" Depth
15-002
$0.74
Channel Balance Shoe, 1-1/8" Depth
Channel Balance Shoe, 1-1/8" Depth
15-001
$0.74
