Traco old metal DH tilt

A contractor from Minnesota says:
October 30, 2018
Hello guys again,
Hope all is well.

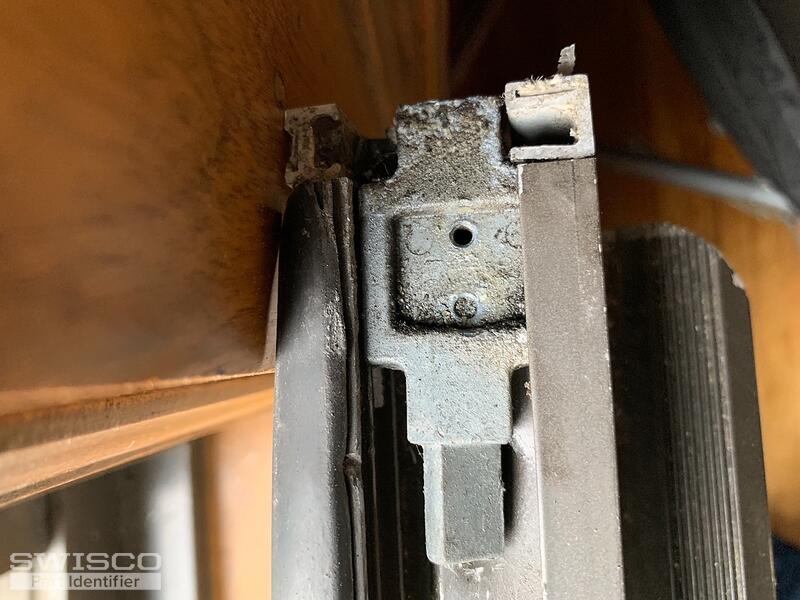

Looking for parts Old Metal Traco window DH tilt.
Need 2 pivots / 2 pivot lock shoe and 30 3/4 balance.
Thank you much.
Roman TheGlassGuru.

Profile picture of Tom
Tom from SWISCO responded:
November 8, 2018

Hey, Roman. Your pivot bar looks similar to our 26-201 , but I'm not sure about that pivot shoe. Would it be possible to see it out of the window? Can you also tell me its width and thickness? It might be a match for our 15-048 , along with a 26-028 Tamp-R-Lock, but I can't be sure.

As for the balance, it could be either our Series 900 (3/8" diameter tube) or Series 600 (5/8" diameter tube), depending on (you guessed it) the diameter of the tube.

Pivot Shoe
Pivot Shoe
15-048
$2.79
Tamp-R-Lok
Tamp-R-Lok
26-028
$0.92
Double Pivot Bar, Traco
Double Pivot Bar, Traco
26-201
$3.90
