Traco window. I need 4 spring balances which are 18

Handy Person from Manassas, VA

Feb 10, 2018 2:25 pm

This is a Traco window. The spring balance channel is 9/16 inch wide and 18 inches long. These are the markings on the side of the channel. 17DS 29 BSI VM

If you need other photos to match up this part please let me know as soon as possible. Thank youl

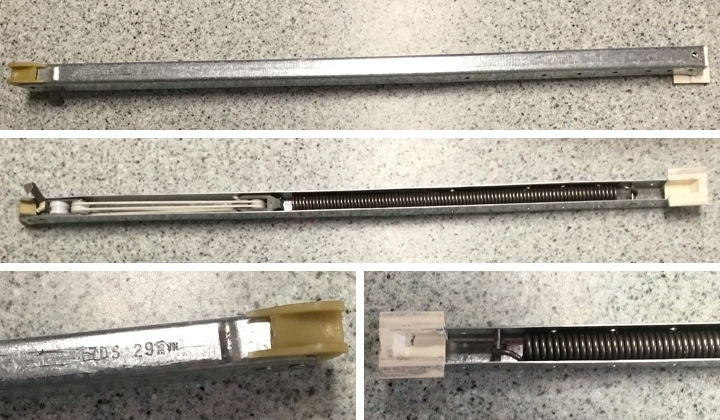

User submitted photos of a window balance.

5 Replies

Handy Person from Manassas, VA

Feb 10, 2018 6:25 pm

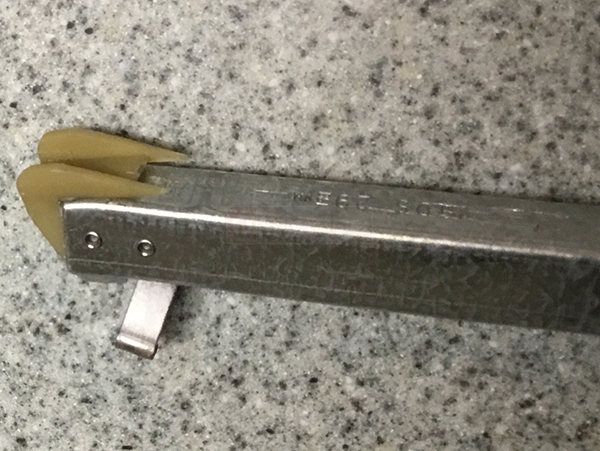

This is the photo of my one end piece on my channel. I have been looking at the end pieces on your web site and I don

Tom from SWISCO

Feb 15, 2018 2:16 pm

We may be able to help, but we will need a bit more information. First, can you confirm the exact weight of your sash? Can you also tell me how many of these you need?

Quick Learner from Manassas, Virginia

Feb 15, 2018 7:11 pm

Tom, I actually need 4 channels that are identical to the one I sent you in the photos. I cannot give you an exact weight of the sash at this time because the house is in Florida and I am in Manassas Virginia. I could only guess the weight of the sash at being 20 pounds. I am including a few photos that have a different view of the channel. If it would help I could measure the length of the spring that is in the channel. If you have any suggestions please let me know. Dan

Tom from SWISCO

Feb 20, 2018 10:00 am

Okay. In that case, I think I'll go with our 1775 option, based on your old stamp of 17DS29. This can support sashes weighing 29 through 32 pounds. I believe this will work, but since this has to be specially made I just wanted to be 100% sure. Knowing the length of the spring won't tell us anything, I'm afraid. I will email you a special order link for 4 of these right now.
