Trayco windows

A home owner from Ottawas, ON says:
July 26, 2020
I am looking for tilt window pivot shoes, for Trayco windows. I believe the paart # is 05-015 required 20 pieces for all the windows. Do you have these in stock?
Profile picture of Tom
Tom from SWISCO responded:
July 29, 2020

I'm afraid that 05-015 isn't one of our product codes. Can you show me a picture of the shoe in question? Can you also tell me its width and thickness? That will allow us to match it up to something in our inventory. Thanks!
A home owner from Ottawas, ON says:
July 31, 2020
The measurements are 2" tall,, 1" wide, 5/8" deep at the thicjkest part.
Thumbnail of the uploaded file named DSCF6505[1].JPG
Thumbnail of the uploaded file named DSCF6506[1].JPG
Profile picture of Tom
Tom from SWISCO responded:
August 3, 2020

I'm afraid that we don't have anything that's 1" wide and 5/8" thick. I would double check those measurements just to be safe, especially the width. Just eyeballing your photo it looks bigger than 1".

The closest match we have would be the 15-173, I suppose. However this is only 9/16" thick, not 5/8".
A home owner from Ottawas, ON says:
August 3, 2020
Your nright, got a better ruler this time. 1 1/4 wide. Thickness stay the same
Thumbnail of the uploaded file named DSCF6513[1].JPG

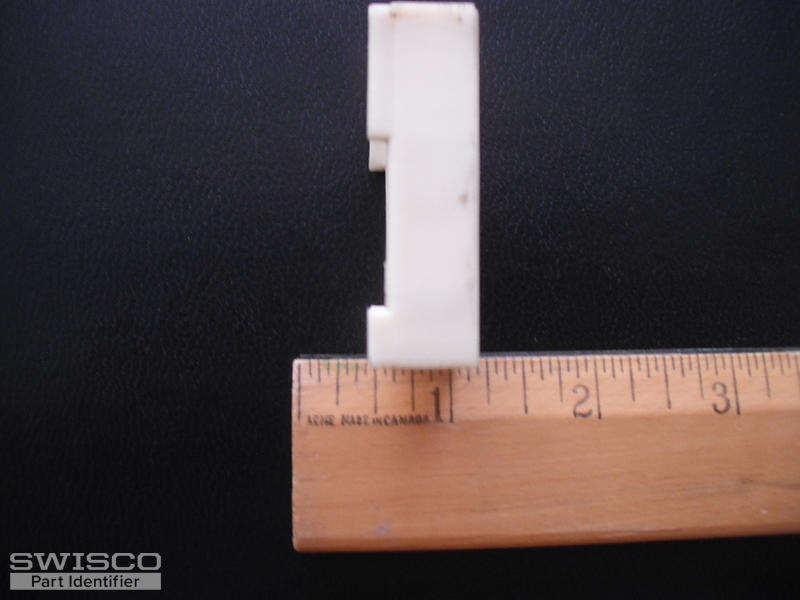

Thumbnail of the uploaded file named DSCF6515[1].JPG

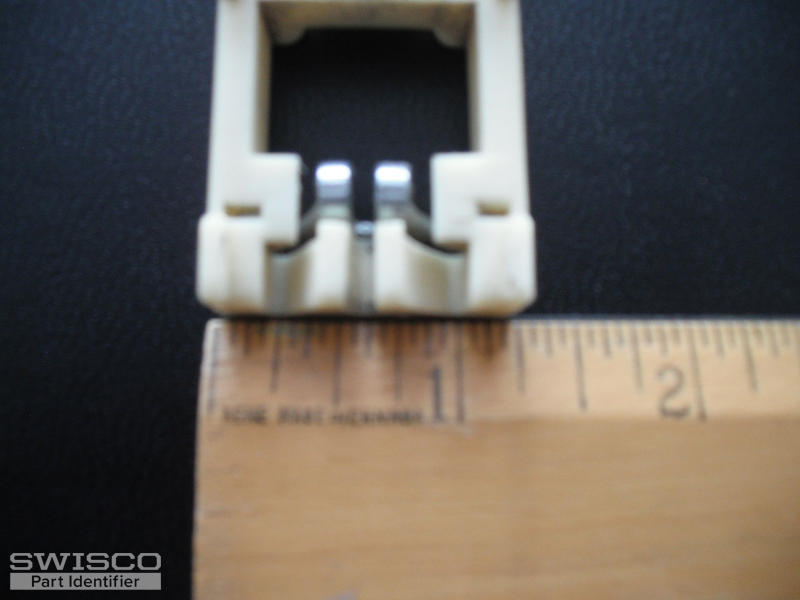

Thumbnail of the uploaded file named DSCF6514[1].JPG
Profile picture of Tom
Tom from SWISCO responded:
August 3, 2020

Thanks! I thought that might be the case. With this data in mind, I recommend the 15-047. This is 1-1/4" wide and 5/8" thick. The style is a little different but I don't think that will matter. It should be compatible with your balance and pivot bar the same way, so as long as it fits in the track I don't foresee any issues.
