Trouble figuring out correct spiral balance.

A from Salisbury, MD says:

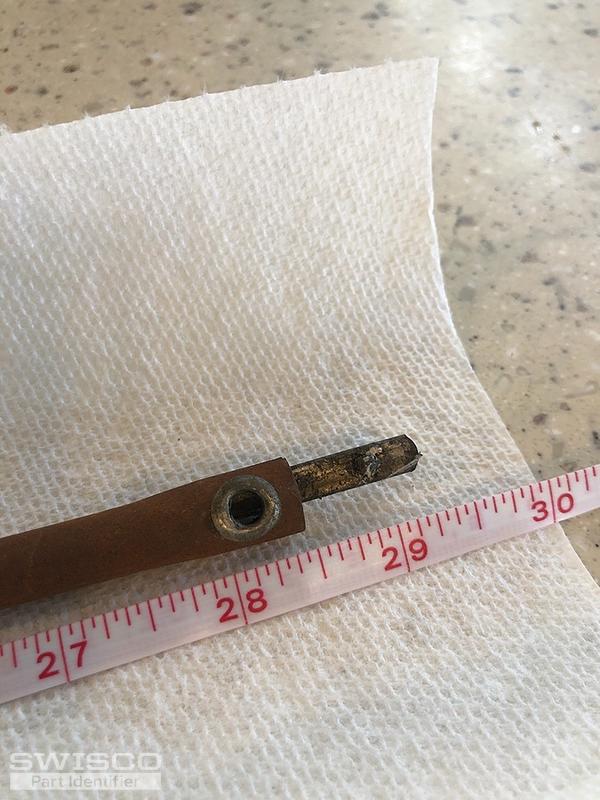

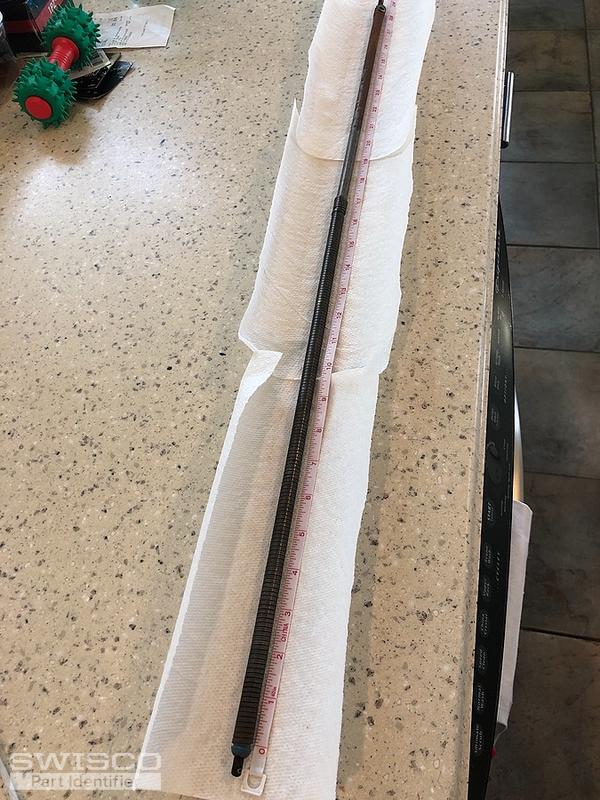

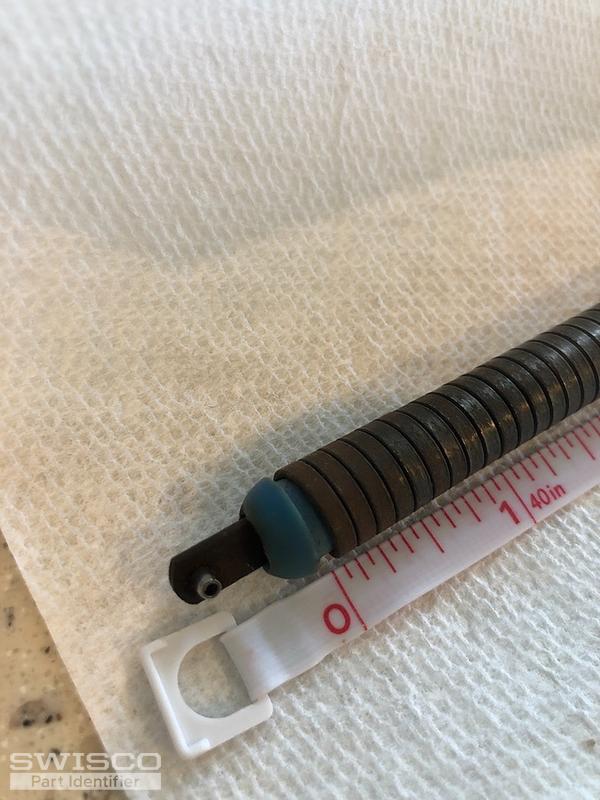

Good morning! I have a roughly 28.5" long blue tip, spiral window balance that is 3/8" wide out of a tilt window. When I ran these figures through your part finder, I couldn't find this exact one. Do you guys have any advice? Thanks!
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Bob
Bob from SWISCO responded:

Hello there. One rule with spiral balances is that if you ever encounter one that has a length ending in a X-1/2" increment, it's best to round up. Therefore, you're going to need either our S300-29 or S600-29. Now comes the question of diameter. You cite your spiral balance's diameter at 3/8", but it's missing its outer tube, which was likely a plastic sheathing that eroded away. Our spiral balances use a metal outer tube instead that is more durable. I suspect that your outer tube's diameter was indeed 5/8"--especially since the 5/8" spiral balances are the only ones that use blue tips. Therefore, you would need our S600-29. Let me know if you have further questions.
