Trouble opening ATERM windows

A handy person from Nashua, NH says:

July 22, 2017

My home has ATERM sliding windows. All but 2 slide open from left to right when unlocked in the lower right. However, 2 windows do not slide open. Each of these windows seems to be held up from sliding from the bottom right corner as if the window were locked. I have unscrewed and removed the locking retainer in the bottom slide but the window still seems held up by something preventing it from sliding. Do you have any suggestions or tips how to get the sliding window to slide open?

Very best regards,

- Kevin -

Paul from SWISCO responded:

July 26, 2017

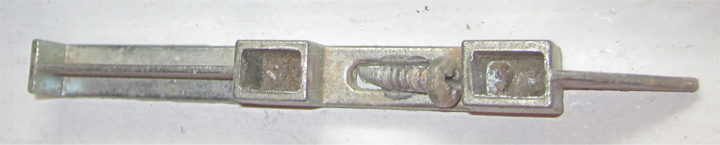

You have the old and discontinued Acorn 2500 Series Thermal sliding window. The photo shows the 90-140 keeper, and the lock is 90-139. Their drawing doesn't show any other security-type lock. One possibility is that the 87-061 roller assembly's wheels might be frozen.

A handy person from Connecticut says:

May 30, 2023

Looking for the age on ATHERM sliding windows. Mine have a couple of issues and I'm wondering the age of them to see if I can fix them. A general year they were made would work or timeline where they made similar models. They are metal sliding windows the lock says 'ATHERM'. Thanks.

Paul from SWISCO responded:

May 31, 2023

You are referring to the sliding lock bolt used by Acorn for their Series 2500. Unfortunately, the company closed just before the turn of the century. There are just a few parts that remain in our inventory, such as the 87-061 roller assembly, 90-139 lock bolt and 90-140 keeper.

Acorn Keeper

90-140

$4.82

Acorn Lock Bolt with Spring

90-139

$14.35

Acorn Slider Roller Assembly, 5/8" Flat Wheel

87-061

$7.01
