Trouble with 39-017, does not perfectly match old operator

Quick Learner from New jersey

Sep 29, 2017 4:42 pm

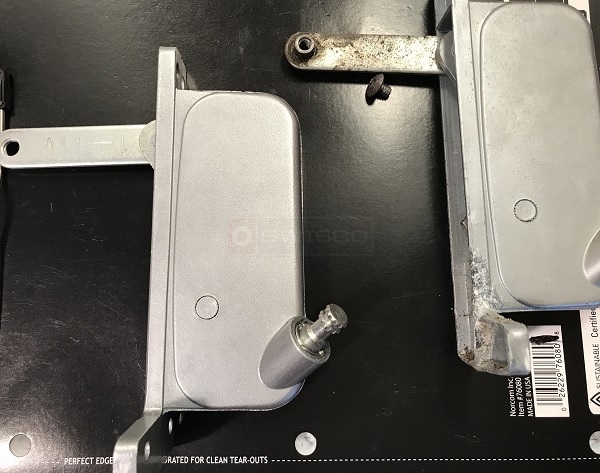

Hi, I recently received a panam/Daryl window crank 39/017 there is very little difference between the old crank and the new crank, except for where it attaches, the screw and the rivet. What hardware do I need?

Thanks and have a great day!
Lynn C

2 Replies

Tom from SWISCO

Oct 5, 2017 12:42 pm

Hey, Lynn. You should be able to convert the 39-017 to replace your operator by using our 33-207 bushing and 33-207 shoulder screw. You'd install them at the end of the link arm.
