Truth 30744 awning operator, cover, and crank handle

Question

Hello,

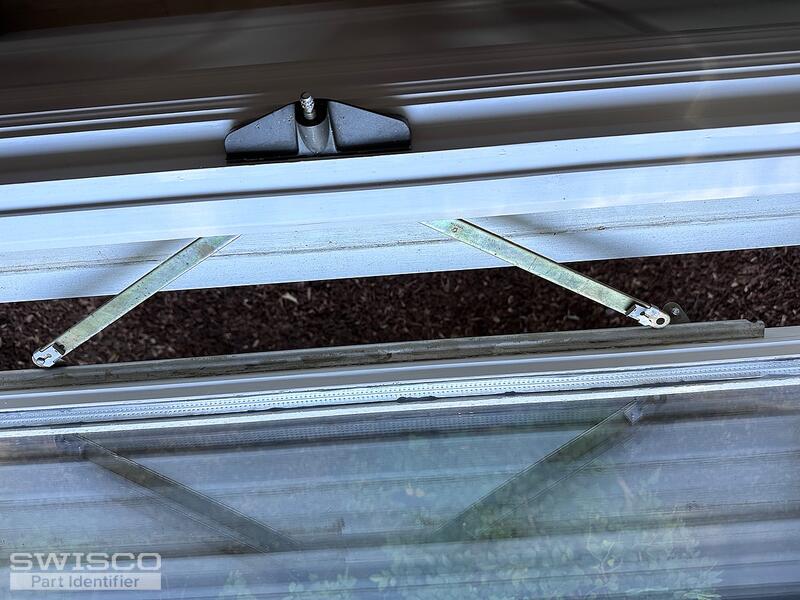

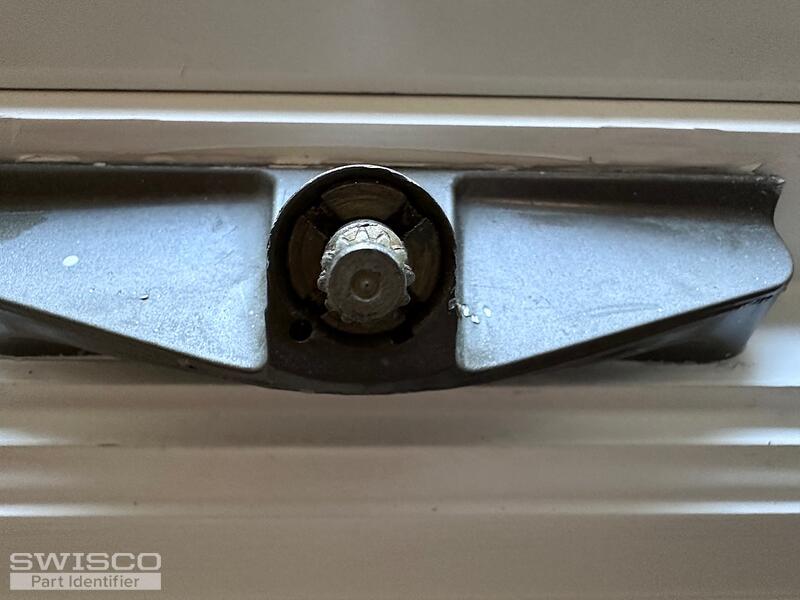

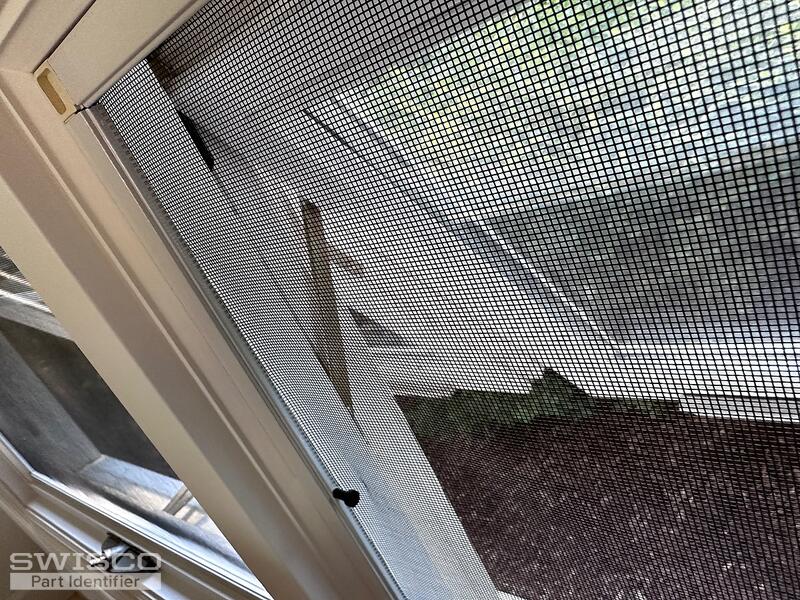

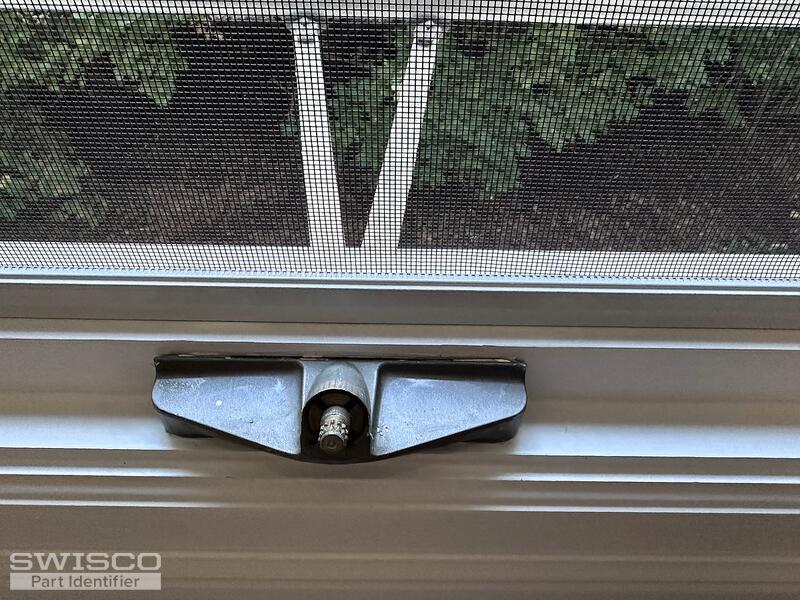

I'm having trouble removing the cover from the old operator. I just wanted to quickly replace the cover and the crank, but it seems to be stuck. Additionally, one of the window arms is no longer connected to the pin, and I am having a hard time closing the window. Could you please point me to the replacement parts, if available?

I really appreciate your help.

Thank you,
Daria

Casey · Accepted Answer

Hello,

Your photos resemble the 39-348 awning operator. Unforutnately, the cover on this assembly is not removable but we do offer the 39-205 folding handle. The end of the arms connect to the 36-078 shoe studs, which are held in place by take-out clips. If the clip on one side is damaged, see the 39-106. Thanks for posting.

detail of 39-348

Dimensions for 36-078
