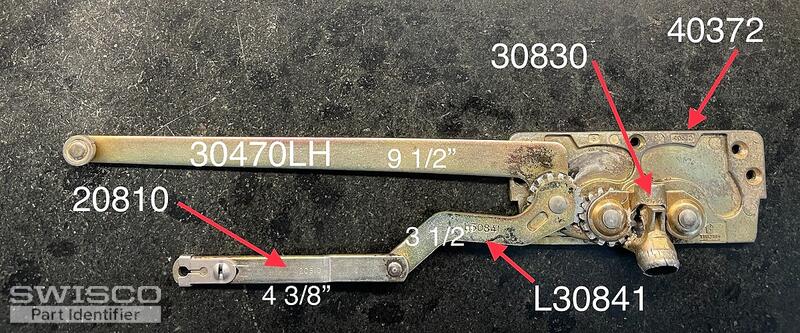

Large arm: 30470LH (9 1/2")
Small arm: 20810 (4 3/8") and L30841 (3 1/2")
Plate: 40372, Yoke: 30830
The small arm has an upward offset.
Truth 9.5" dual arm operator right hinge casement window
Handy Person from Chicago
May 30, 2022 7:43 pm
1 user uploaded image
2 Replies
Casey from SWISCO
Jun 2, 2022 10:06 am
Hello,
Take a look and compare the specifications of the 39-031 and 39-032 EntryGard operators to yours. Please note that the link arm of our operators has a downward offset. Past customers have still been able to install our operators but it may require a bit of manipulation to attach the arm to the sash bracket. Thanks for posting!
