Truth Awning Crank

Question

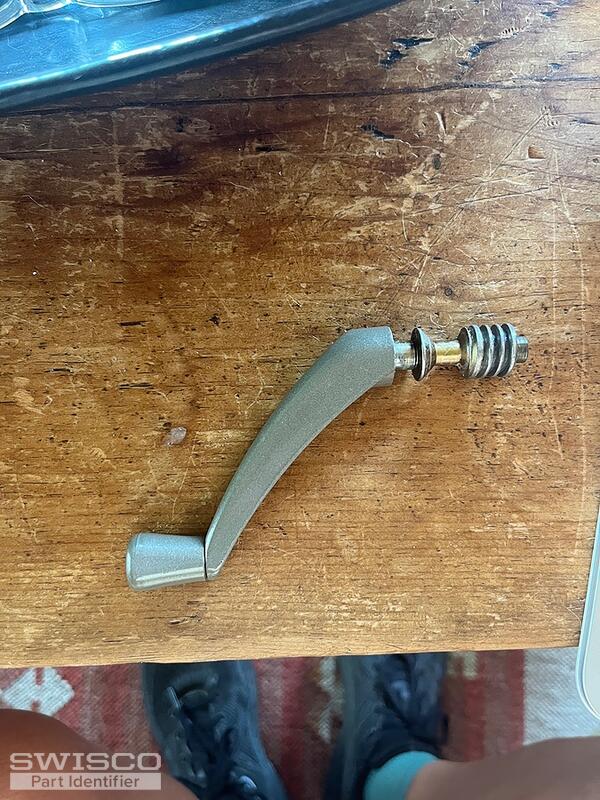

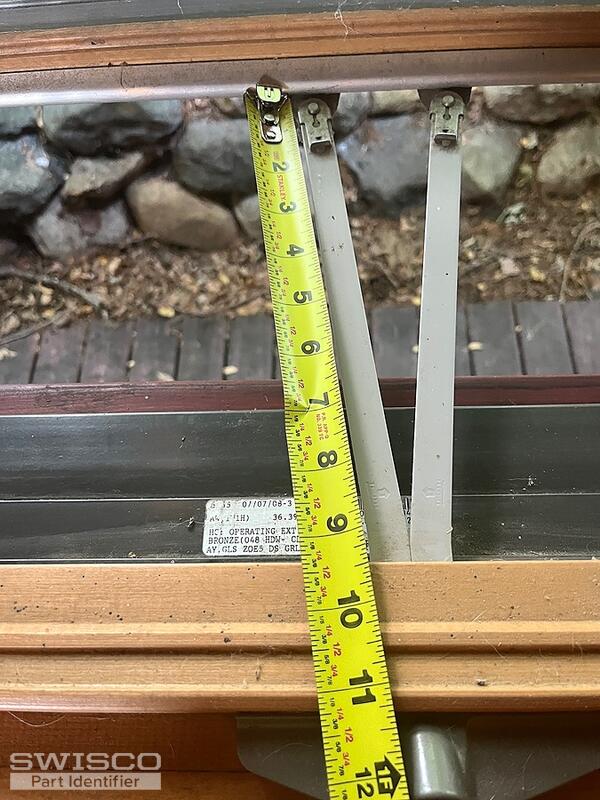

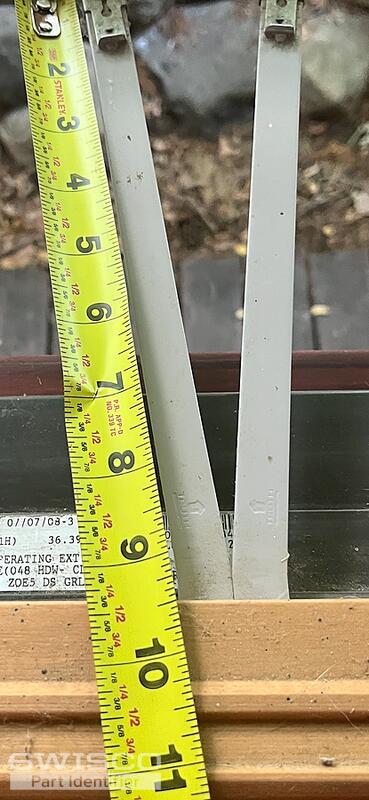

Hi,  I am trying to replace this awning window operator.  The handle comes right out with the insert connector.  It is stamped Truth on both arms, but I see no part numbers.  There are two arms that are about 10 inches extended fully and about 23" when closed.   The window dates to 2008, if that's any help.  Thank you.

Lauren · Accepted Answer

Hello, thank you for posting,

Please start by reviewing the 39-348 awning operator to see how it compares to your original. The operator arms connect to the 36-078 shoe stud that engage with the sill track. Also see the 39-114L for a new handle.

Let us know what you think and if you have any additional questions.
