Truth Casement Hinge replacement : SWISCO.com

Quick Learner from Keystone, CO

Aug 23, 2023 11:51 am

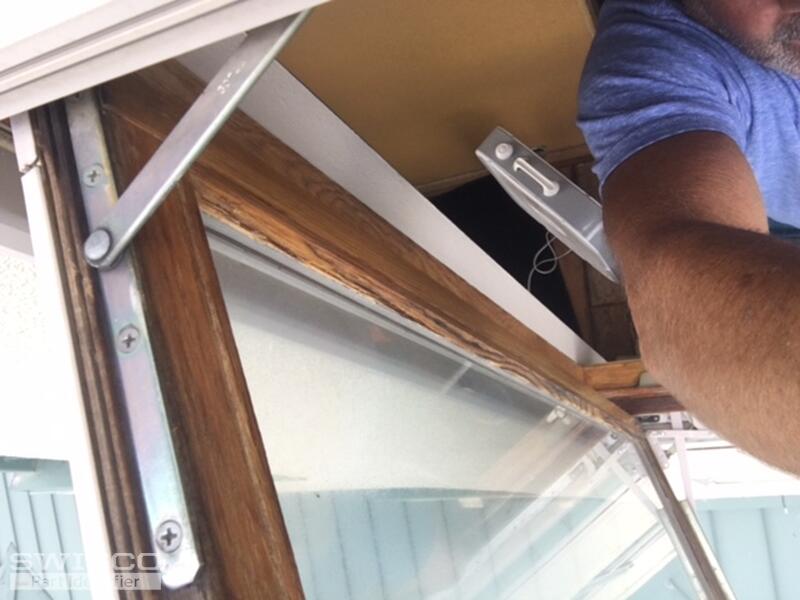

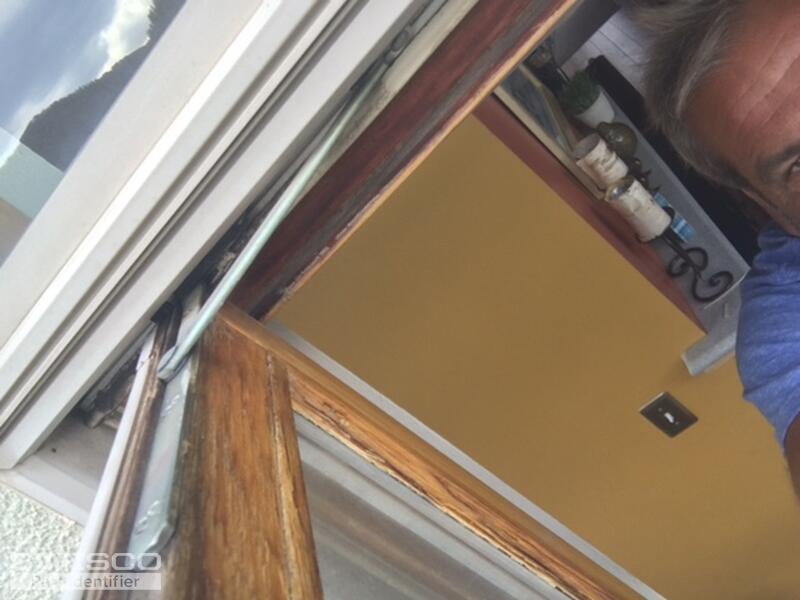

We have new cranks TH 23077 (Right) & TH 23076 (left). We now need the window hinges. Attached are pictures & dimensions of our old. We only see 30744 on the hinge.... Please help

Dimensions on ours is:

Stationary window bracket- 7.3/4", swivel arm - 5.5"
window track is 31" long

1 user uploaded image

4 Replies

Jasmine from SWISCO

Aug 23, 2023 3:53 pm

Thanks for the photos. Your operator resembles our 39-031 Truth Dual-Arm Operator (the opposite handed version is part 39-032). These operators are compatible with the 39-107 cover along with the 39-114L non-folding crank handle or the folding crank handle, part 39-205.

Compare the dimensions from your existing operator to those shown on the diagram below.

Dimensions for 39-031

Quick Learner from Keystone, CO

Aug 23, 2023 4:59 pm

We have the operator arms, covers & handles. We need the casement hinge below the operator arm for the top of the window and the bottom. Dimensions are in earlier conversation

4 user uploaded images

Jasmine from SWISCO

Aug 24, 2023 9:59 am

My apologies for that oversight. I cannot guarantee that we have an exact replacement for the hinges you have but our 36-048 or one of our other hinges should work well as a replacement.

Start with reviewing in comparing the measurements for part 36-048 to determine if this might be a suitable replacement for your hinges. It is likely that you may have to drill new installation holes. In which case, we do express exercising caution as there is a risk of drilling into the glass if you drill to far into the frame.

You will need to replace both the top and bottom hinge at the same to to ensure the integrity of the function of your window. These can be used for the right and left side.

Detail of 36-048

Additional dimensions for 36-048
