Truth Casement Window Hinge

Handy Person from Jones, OK

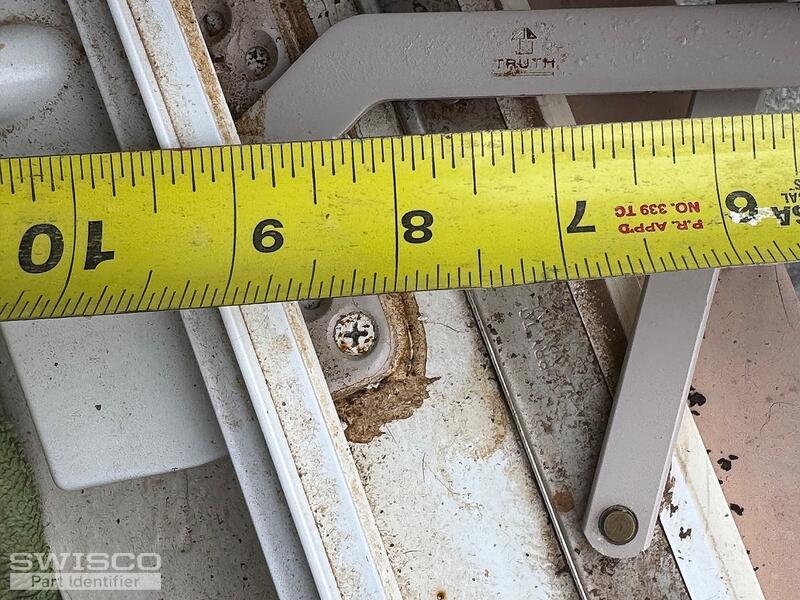

I need replacement hinges for a Truth casement window. House was built in 1986 and I suspect these windows were part of the original construction. I don't see any hinge hardware that has the dogleg angle to it as seen in the photos. Full window size is 34" width, but there are two windows in that space - the hinge that is rotted out is on the right-hand window when facing the windows from the inside of the house. The window is on the second story. on a side of an A-frame house that that is virtually inaccessible from the outside due to roof pitch and skylights impeding ladder placement.
4 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

Please start by reviewing the style and dimensions of the 36-048 2-bar hinge set that has a 10" sill track. We also carry the 36-049 with a 14" sill track. Note that both the top and bottom hinges will need to be replaced at the same time.

Take a look at the video below for more information. Let us know if you have any additional questions.
