Truth Casement operator

Thanks for reaching out to us. Your operator appears to be a match for our 39-333. This is an egress operator made by Truth. Review its specs and see how well they match up.

Dimensions for 39-333

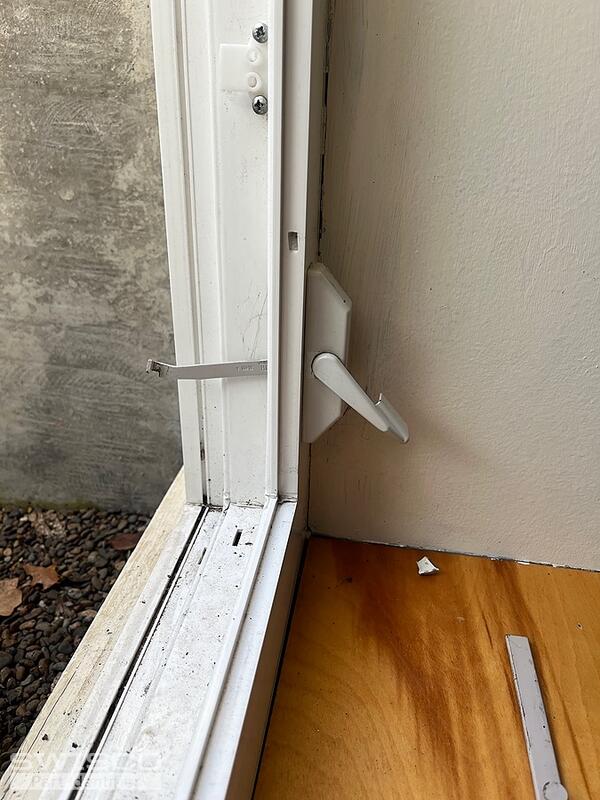

I'm not sure about the lock. Would it be possible to see a clearer photo of the locking arm?

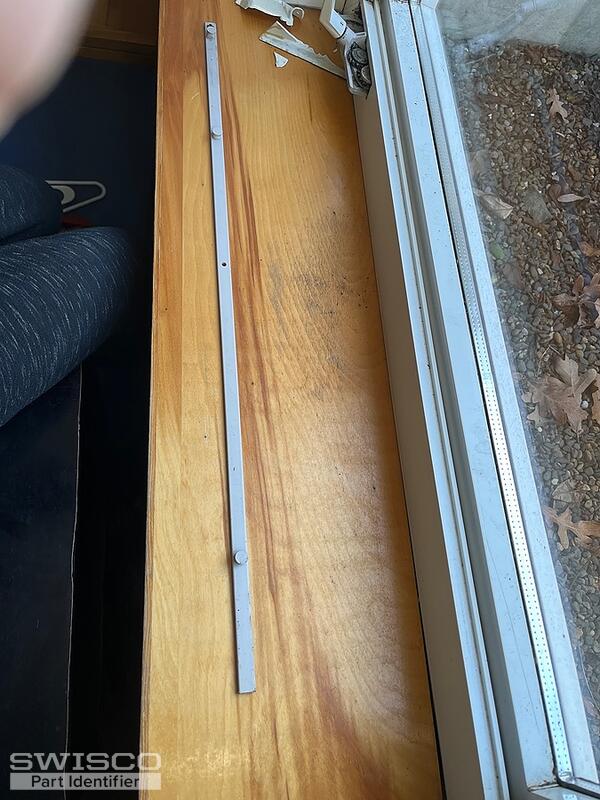

As for the bar, that sounds like the tie bar. Seeing a photo of that would also be helpful. I specifically need to see how many lock points it has. They'll look like little rollers.

Thank you! That's a huge help. I think this tie bar is a match for our 38-954. This is 26.9" long and has two interlock rollers and one lock drive point, which seems to be the case for your part as well. Look it over and see what you think!

Dimensions for 38-954

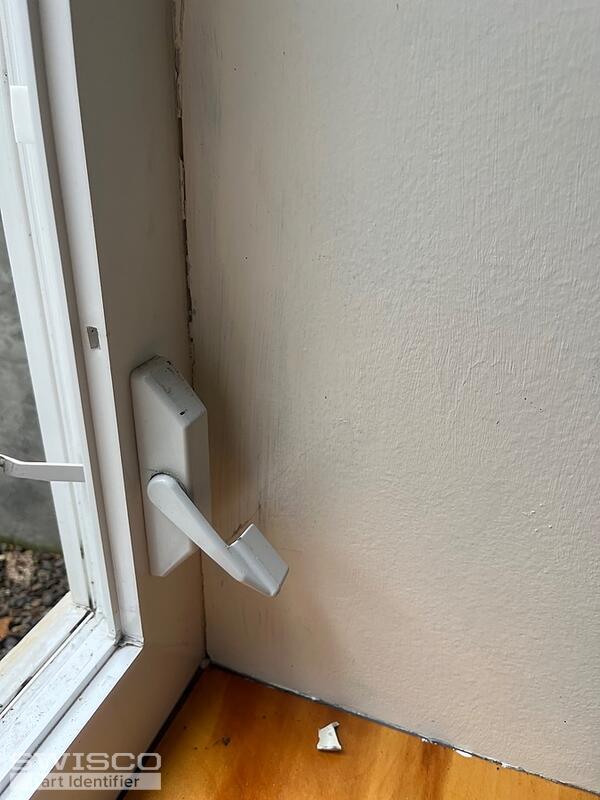

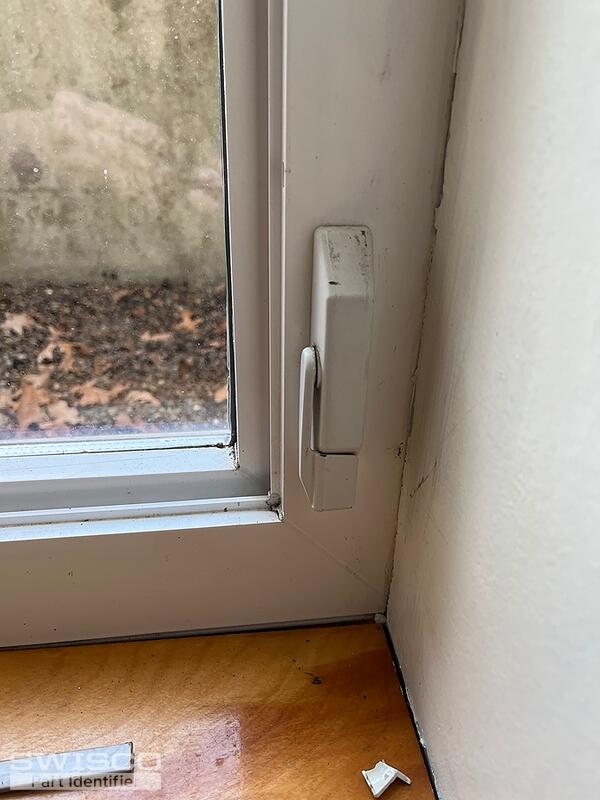

Sure, that's the lock itself. It resembles our 38-092. We also sell the 38-091 for the opposite side.

Operators do not generally need to be adjusted but the problem could be with the hinges if replacing the operator didn't correct the problem. Take a look at the 36-048 hinge set and 75-034 adjusting wrench to see if these parts could correct the problem.

Detail of 36-048

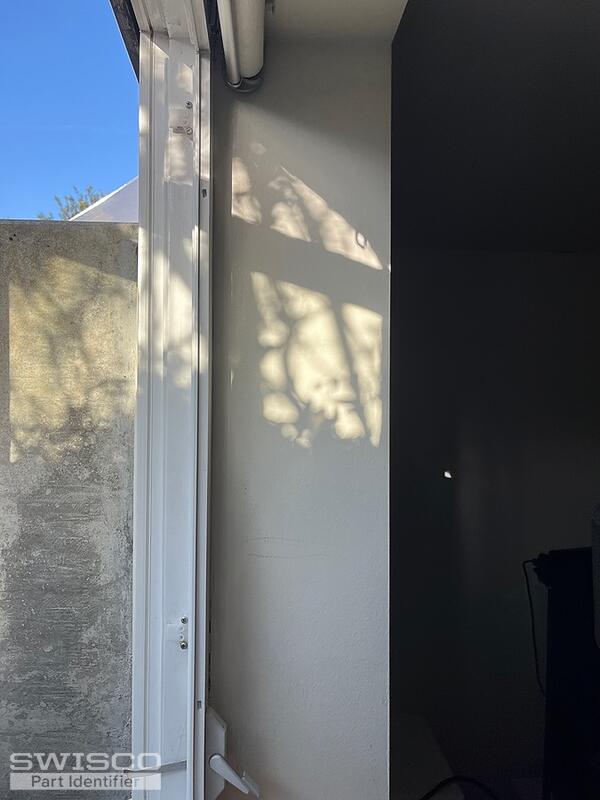

I can't be sure based on your photos but there should be a piece under the arm that attaches to the hinge base that you could adjust using the 75-034.

If not, you could also consider using new 36-048 hinges as long as the 10" base matches yours. Please note that you would need to replace both the top and bottom hinges.
