Truth Entry-Gard 20810

Quick Learner from Seattle Wa

Mar 20, 2021 9:37 pm

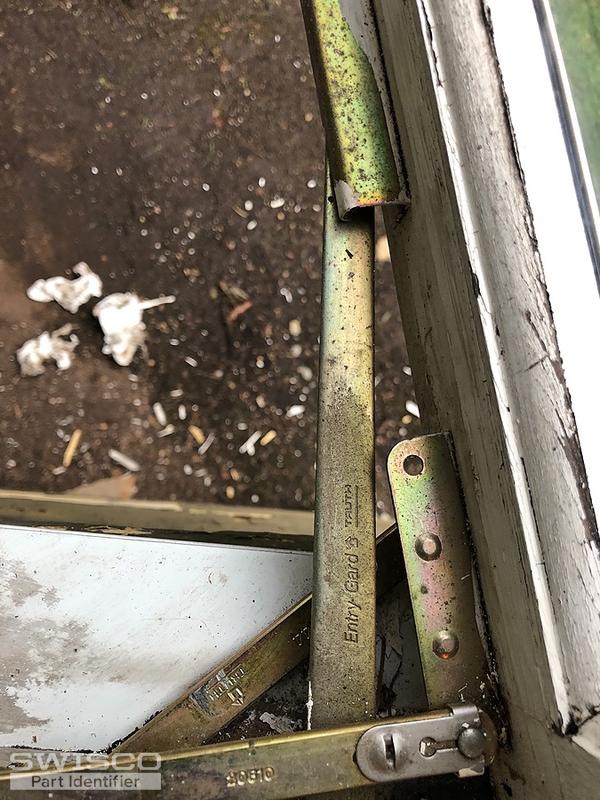

We have two windows that use the Truth Entry-Gard 20810 system. The handle and enclosure are loose, and turning the handle generally just spins, without consistently driving the arm. I am not sure what parts I need to make the functional again. Any advice would be appreciated!

Thanks, Dev

5 user uploaded images

4 Replies

Casey from SWISCO

Mar 23, 2021 10:02 am

Hello,

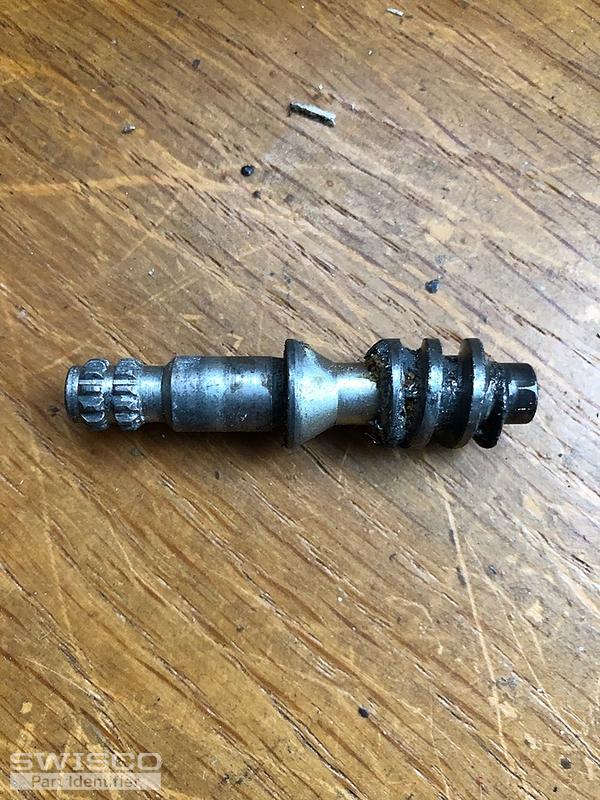

Since your worm gear broke off of your operator, you'll need to replace the entire assembly. Your photos resemble our EntryGard 39-031 and 39-032 but you'll need to confirm that the dimensions on our product pages match up to yours. Thanks for posting!

Quick Learner from Seattle Wa

Mar 23, 2021 11:08 am

Thanks -- Are the EntryGard 39-031 and 39-032 systems compatible with the folding crank arms?
https://www.swisco.com/Truth-Kit/pd/Replacement-Window-Operator-Accessories/39-107FK

Casey from SWISCO

Mar 23, 2021 12:46 pm

Yes, these EntryGard operators use the 39-107FK folding handle and cover.
