Truth Entry Gard associated hardware

Question

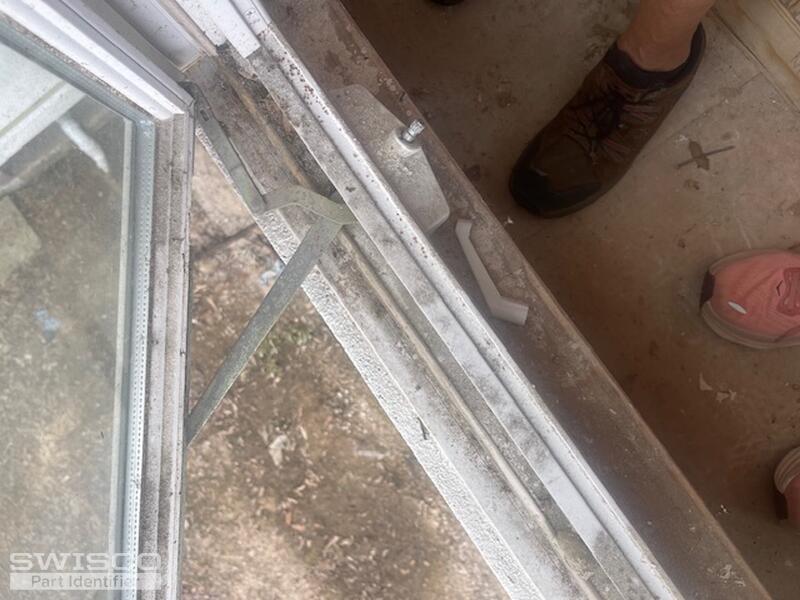

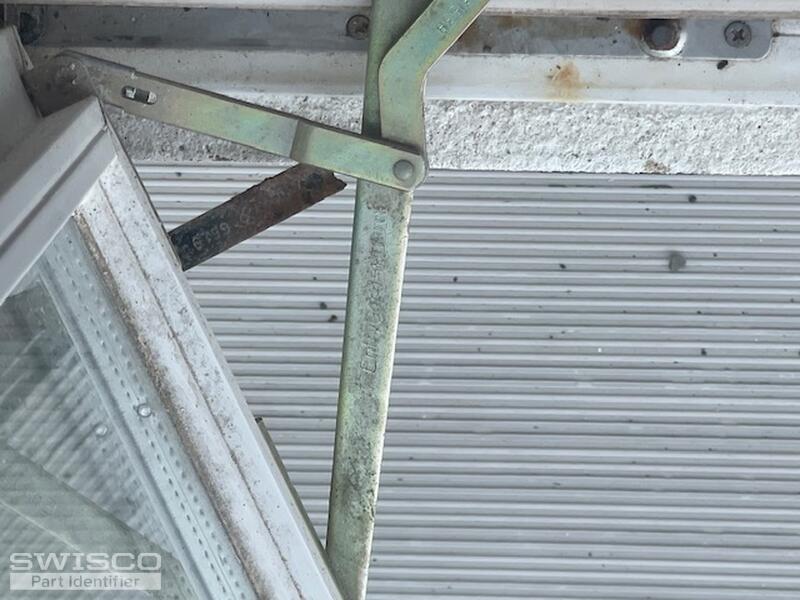

There is a main "Entry Gard" arm. But there is a smaller arm at the top of casement window and at the bottom. The top is fine. The problem is that the home sat for 5 years and the bottom small arm rusted off. #6799 in the pictures. Its a 6" piece that connects to a screwed in piece on the bottom opening of window that has rusted through.
We also are in need of 16 white handles.

Emily · Accepted Answer

Hi there!

Start by taking a look at the 36-048 hinge set with a 10" base that mounts to the sill. Review the specifications and see if they match what you need to repair your window. Just note that we recommend you replace the top and bottom hinges at the same time.

As for the handles, see the 39-114L or 39-205, depending on the style you prefer.

Detail of 36-048

Additional dimensions for 36-048

Alternate view with measurements

Alternate view of the gear hole

Side profile view with measurements.

Alternate image for 39-205
