Truth EntryGard operator wheel

Handy Person from Portland, OR
Hello Swisco,

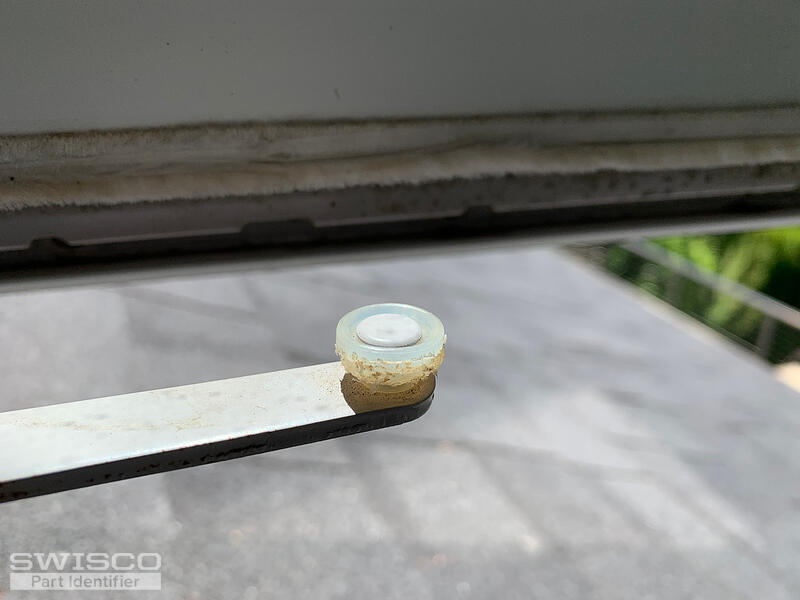

I have a Truth EntryGard operator wheel which is getting bound up on the track holes. The wheel spins freely, but the edge of the wheel is chewed up. I'm guessing the wheel is no longer the correct diameter and that's what's causing it to get bound up.

I see the wheel is riveted on to the end of the operator arm and it doesn't look like you sell replacement wheels. So... I need to purchase a whole new operator? If so, please help me select the correct part based on my photos and let me know if you need any additional information. Thanks!
4 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

Thanks for posting! You are correct, since the wheel of your operator is damaged, you would need to replace the entire mechanism. Unfortunately, I'm not sure it is sold separately anywhere.

Your operator appears to have a shortened link arm, so there are two possible recommendations I can make. Take a look over the dimensions for the 39-156 Caradco Window Crank and the 39-333 Egress Operator. Carefully review and compare them to determine which might be the best fit for your repairs.

I've also tagged a few of the other compatible hardware parts below.

Dimensions for 39-156
Dimensions for 39-156

Dimensions for 39-333
Dimensions for 39-333

Handy Person from Portland, OR
I have the shorter 2 13/16" link arm so will try the 39-333 Egress Operator. I might as well get a new track while I'm at it, and the folding handle and cover kit looks nice too. Thanks much, Jasmine!
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Okay, great! I'm happy I could be of help. Please don't hesitate to reach out with any other hardware repair projects you might have.

Have a great weekend!
