Truth Sill mounted scissor opener

Question

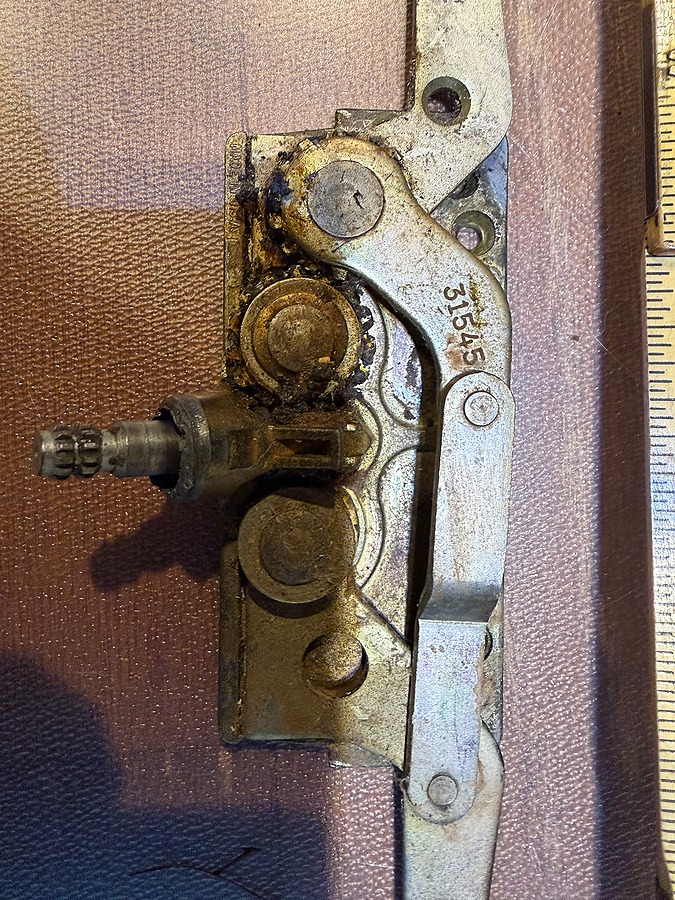

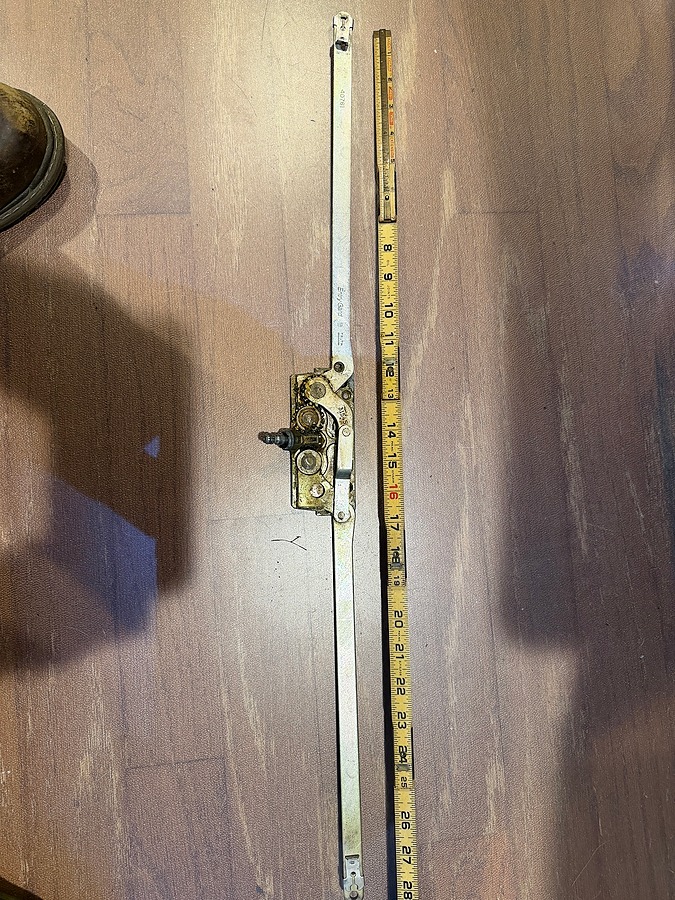

The window is a Marvin awning type.from aproximately 1994.. The operater is a truth sill mounted with 45179 on the base plate, 40761 on the left arm from the interior and 40762 on the right arm fronm the interior and 31545 on the left short arm and 21221 on the right short arm. Total spread or the arms is 28 1/2". The arms have holes for pins and clips that snap int to slots on the pins. The plate is 4 1516" wide and 2 1/16" deep.

Tom · Accepted Answer

Thanks so much for reaching out to us. Your operator here appears to be a good match for our 39-462. The dimensions match up, too. Look it over and let me know if you had any follow-up questions, we're always here to help!

Dimensions for 39-462
