Truth Window crack assembly

Quick Learner from Seymour, CT

Apr 26, 2021 5:31 pm

I am looking for a part or way to fix or replace the crank to this Truth window. the window opens, but when I close it, the assembly screws itself out of the window.

2 user uploaded images

4 Replies

Tom from SWISCO

Apr 29, 2021 1:50 pm

Looks like your worm gear has stripped out, which cannot be repaired or replaced. You need an all new operator.

We can help, but before I recommend anything I will need you to remove your current operator from the window in its entirety so that we can get a good look at it. Please note that I have to see it without obstruction. If any details are cut off or covered, we won't be able to help.

Quick Learner from Seymour, CT

Nov 7, 2021 9:35 am

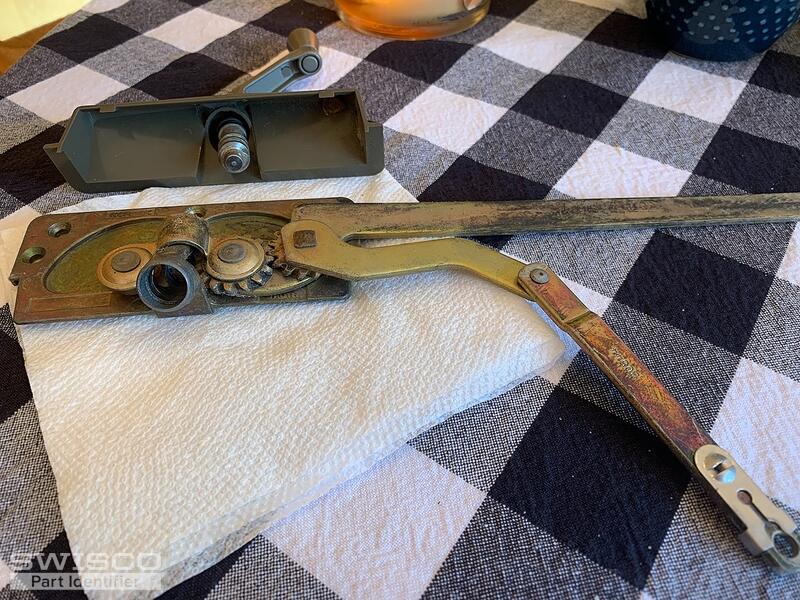

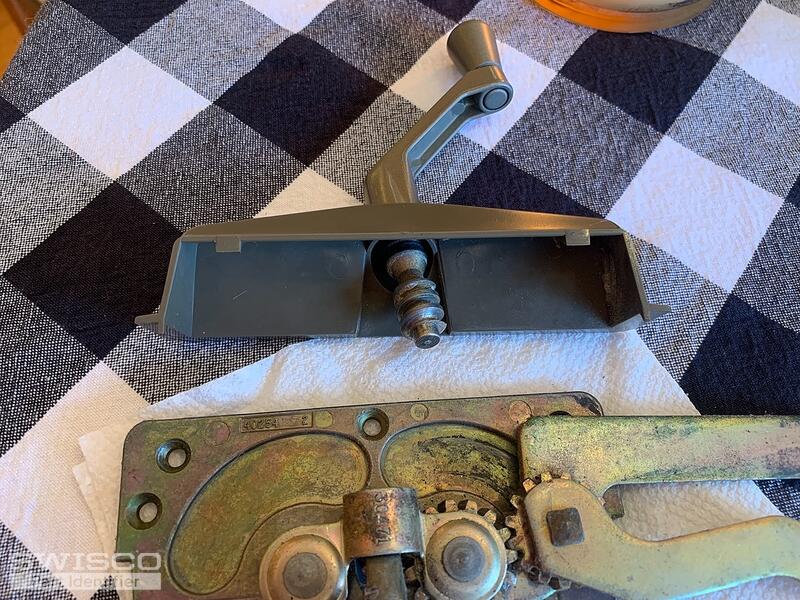

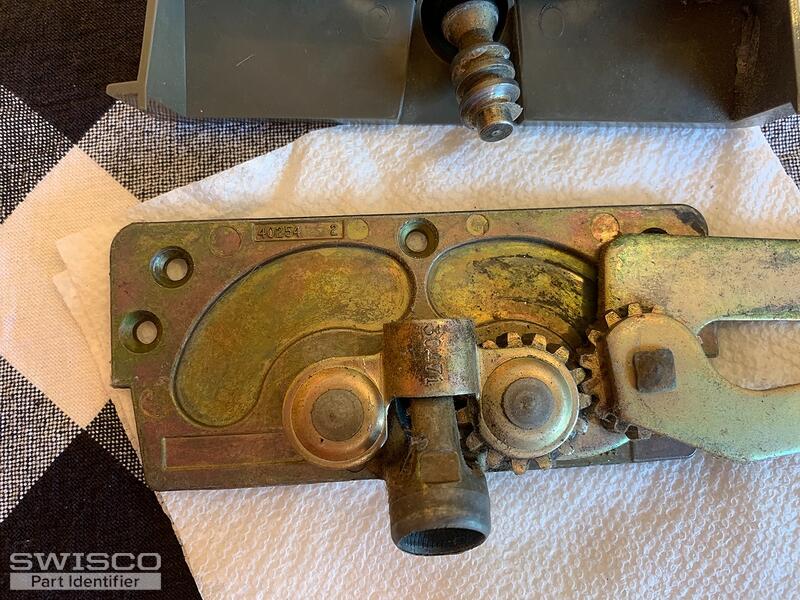

I finally was able to remove the hardware. Let me know if this helps the fix. I am also looking for another crank for other windows, hopefully in the same color. Thanks!

4 user uploaded images

Tom from SWISCO

Nov 10, 2021 10:43 am

That's a huge help, thank you very much. What you show here appears to match our 39-031 and 39-032 EntryGard operators. I believe these are just what you want, but review our dimensions just to be sure.

Dimensions for 39-032
