Truth casement operators

Question

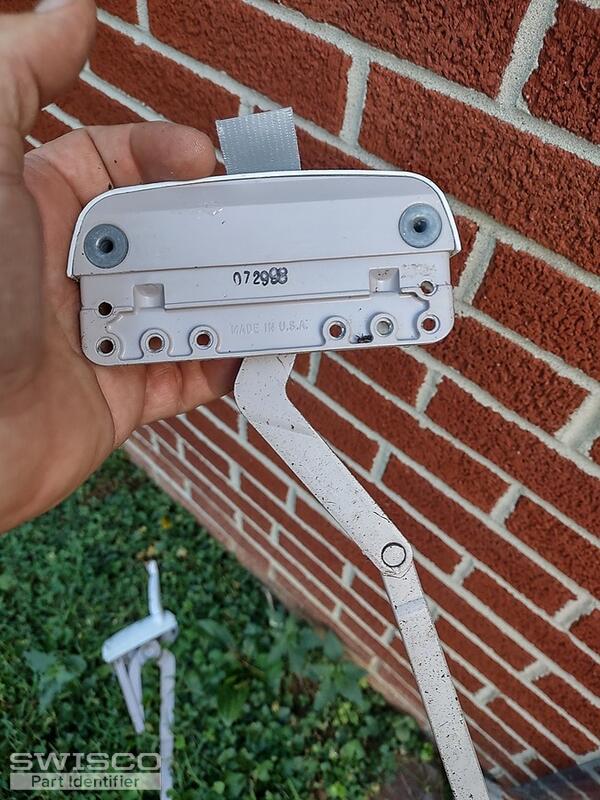

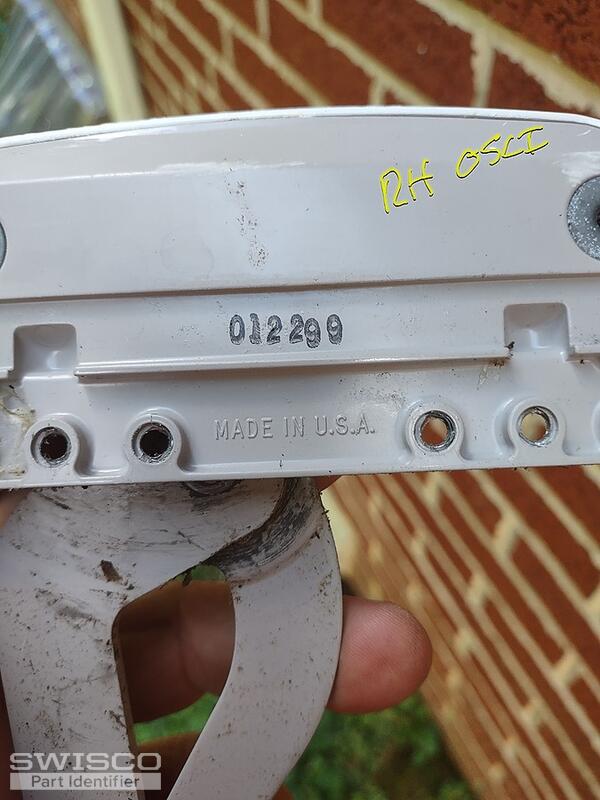

Hello, can you identify these two casement operators?

Jasmine · Accepted Answer

Thanks for writing in! Your single arm operator can be replaced with the 39-220B Encore Dyad Sill Mount Operator; the opposite handed version is the 39-221B. The dual arm crank can be replaced with the 39-253RB; the opposite version of this operator is the 39-253LB.

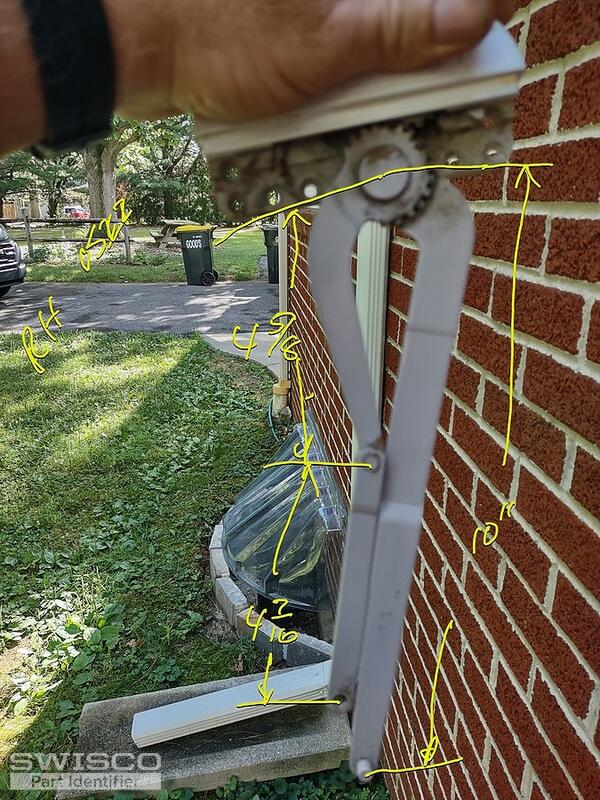

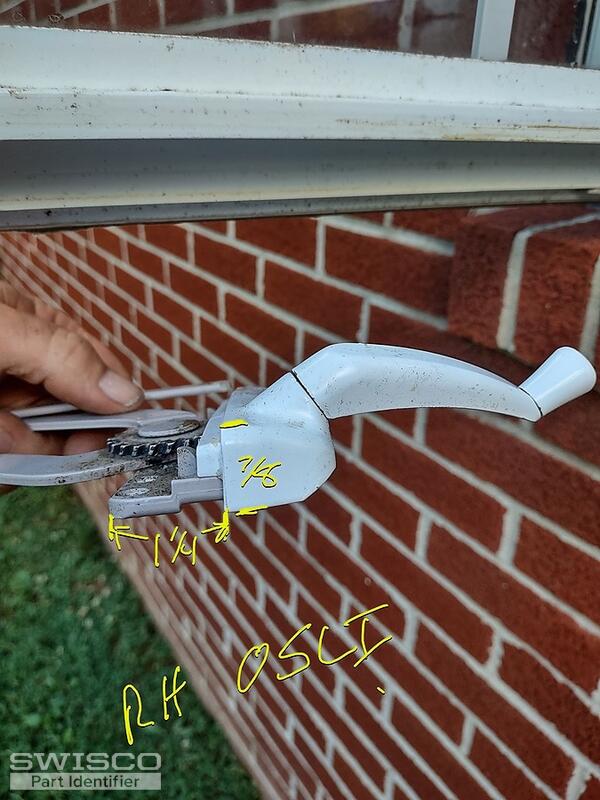

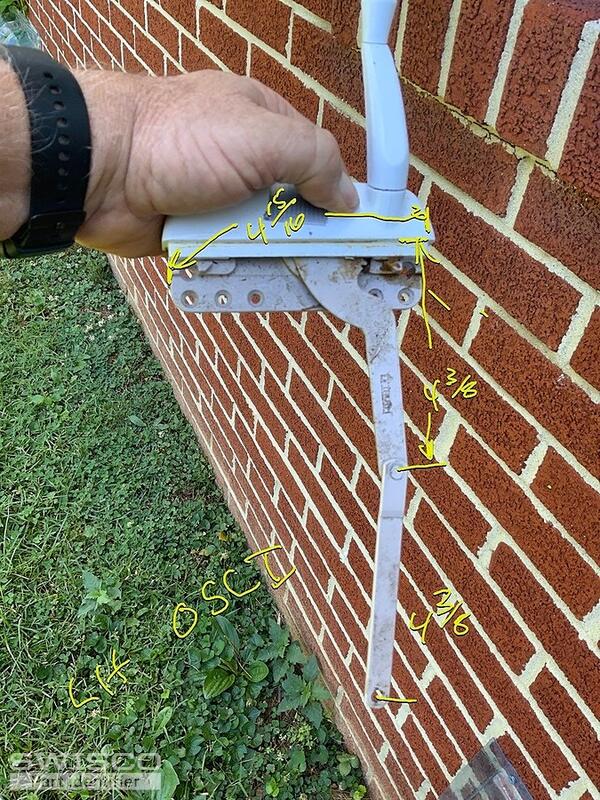

To confirm that these are the correct replacements for your operators, be sure to carefully look over each of their dimensions below.

Each of these are compatible with either the 39-375 and 39-376 folding cover kits or the 39-451 and 39-452 non-folding cover kits. You'll find the other compatible hardware in the 'related items' for both style operators on their respective product pages.

Dimensions for 39-253RB

Detail of 39-220B
