Truth casement window hardware

A home owner from Minnesota says:

May 4, 2023

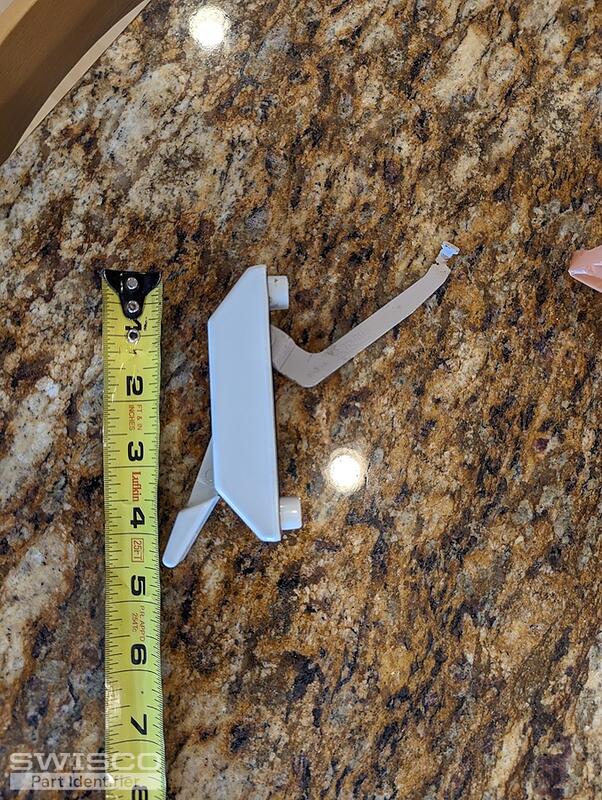

I'm looking for Truth casement hardware circa 1999. The interior box looks like your 38-099 but, I don't have any of the mechanics on the right side of the spec drawing.

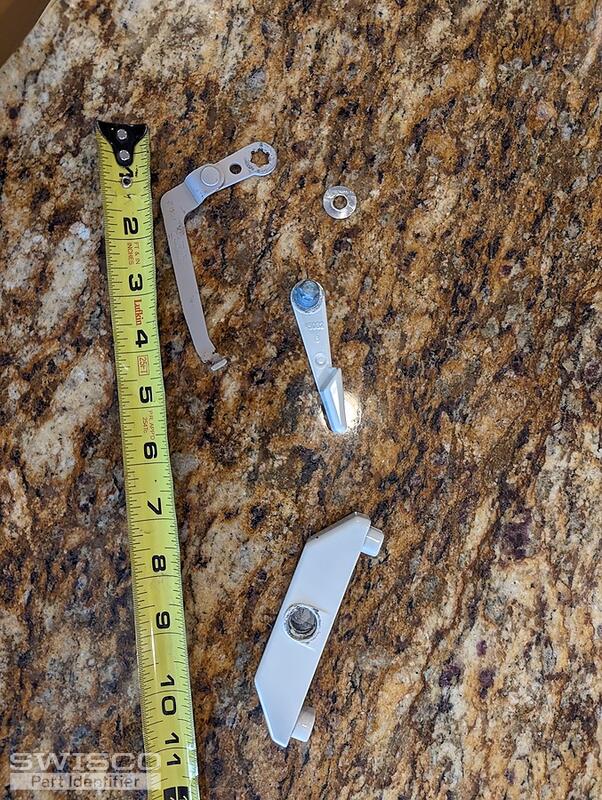

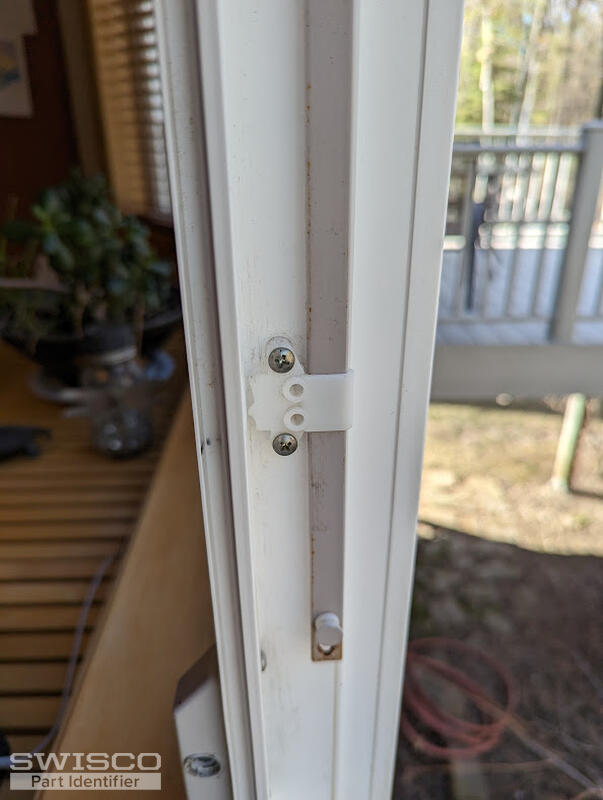

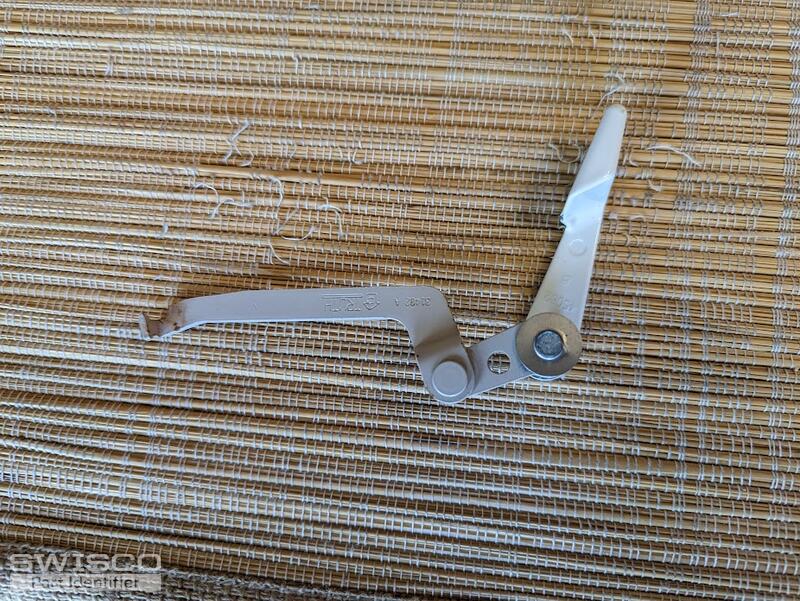

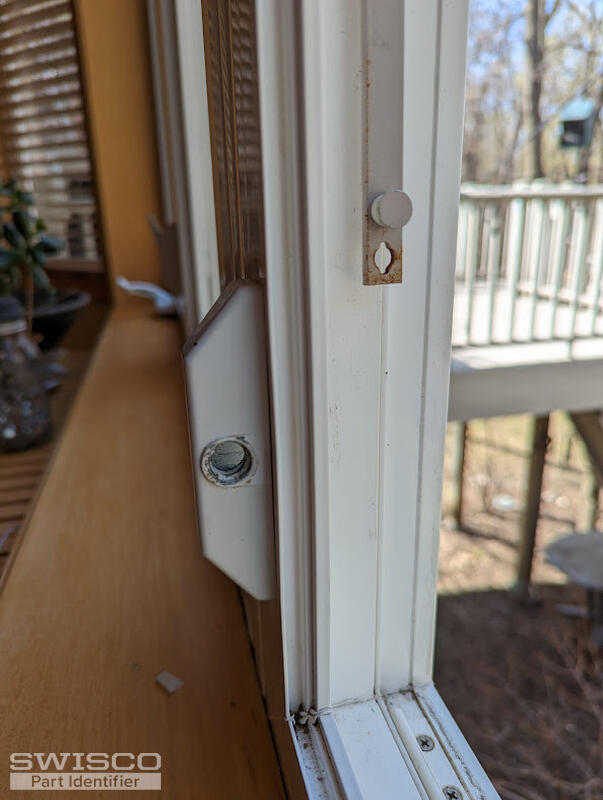

The bar from the second photo attaches directly to the tie bar in photo 3. I do have a slightly broken tie bar guide in photo one - but is that important?

Thumbnail of the uploaded file named PXL_20230504_155704646.jpg

Thumbnail of the uploaded file named PXL_20230504_142202270.jpg

Thumbnail of the uploaded file named PXL_20230504_142046011.jpg

Thumbnail of the uploaded file named PXL_20230504_180629268.jpg

Thumbnail of the uploaded file named PXL_20230504_180740742.jpg

Casey from SWISCO responded:

May 4, 2023

Hello,

Take a look and compare the dimensions of the 38-092 multi-point lock shown below to yours. We also offer the 39-448 tie bar guide. Review the specifications of these parts and the related videos for more information. Thank you!

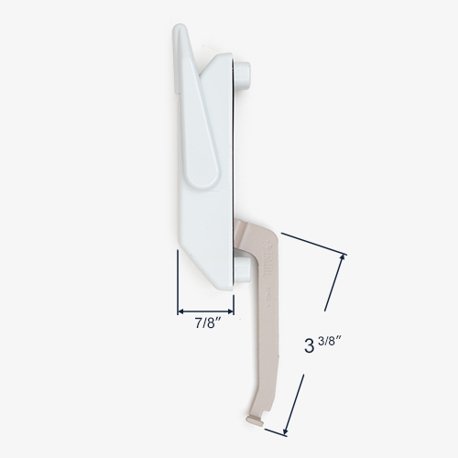

Dimensions for 38-092

Multi-Point Sash Lock RH, 24 Series

38-092

$27.30

Multi-Point Sash Lock LH, 24 Series
