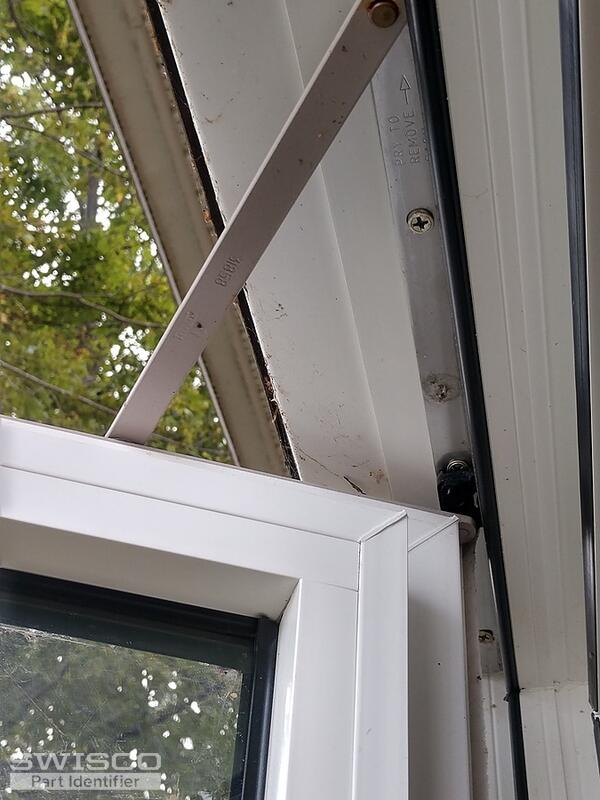

Stainless part of hinge slide is 13" long w 4 screw holes. Markings include #40987 and words " pry to remove sash. Slide arm has #31858 and is 7 3/8" long.

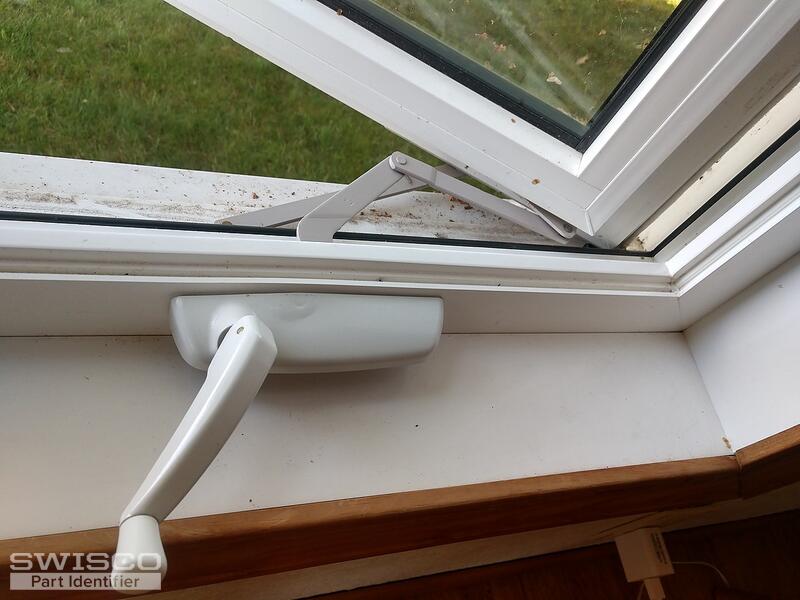

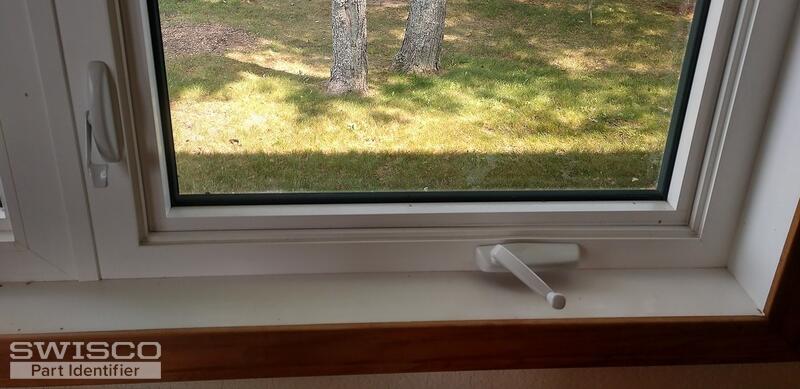

Crank operator has # 31876 Truth on bottom of an arm. The hole to insert crank into window frame is 4 7/8" long. Your assist is much appreciated.
Tom from SWISCO responded:
August 31, 2021
We don't sell 13" hinge sets anymore, unfortunately. That's an older size that is not available to us these days. We do sell 14" hinges that may work just as well, though. See our 36-004-14 for the style we have. |
