Truth entry guard dual arm operator

Home Owner from Colorado

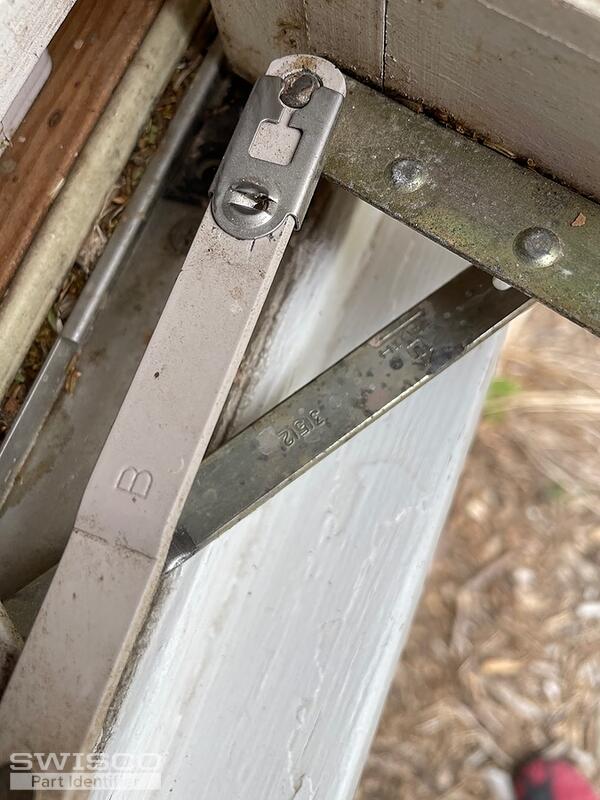

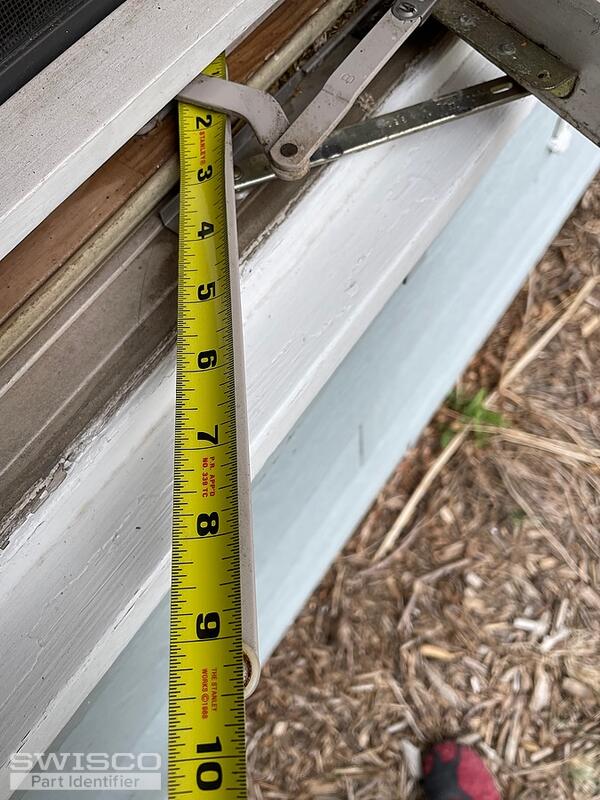

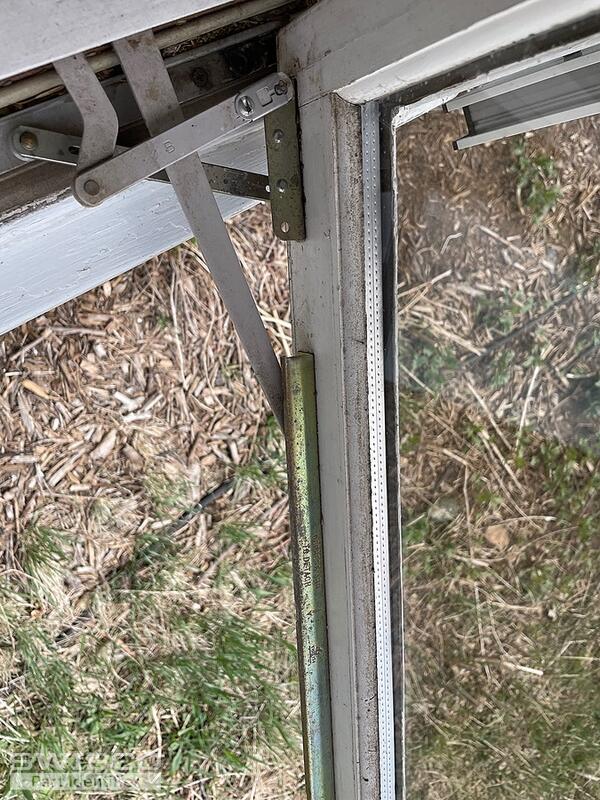

I'm looking for truth entry guard dual arm operator. I saw a few on your site, but can't tell if they're the right size. The mechanism as a B on it and the part underneath as the numbers 31512 (both are visible in picture). The picture is of the operator on the window I can open?the one I need to replace won't open easily so I didn't want to mess with it?so I'm looking for the operator that opens the opposite direction of the one in the picture.

Can you help me find the right one?

Thank you!

3 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

At first glance, your operator appears to match our 39-031 and 39-032. However I can't quite tell if yours is the right side, either. Ultimately you will have to carefully review the dimensions we show to determine whether they align or not. I'm more concerned with the small arm than the long arm, since the long arm size is pretty standard.

Dimensions for 39-032
Dimensions for 39-032
