Truth entrygard window operator

Question

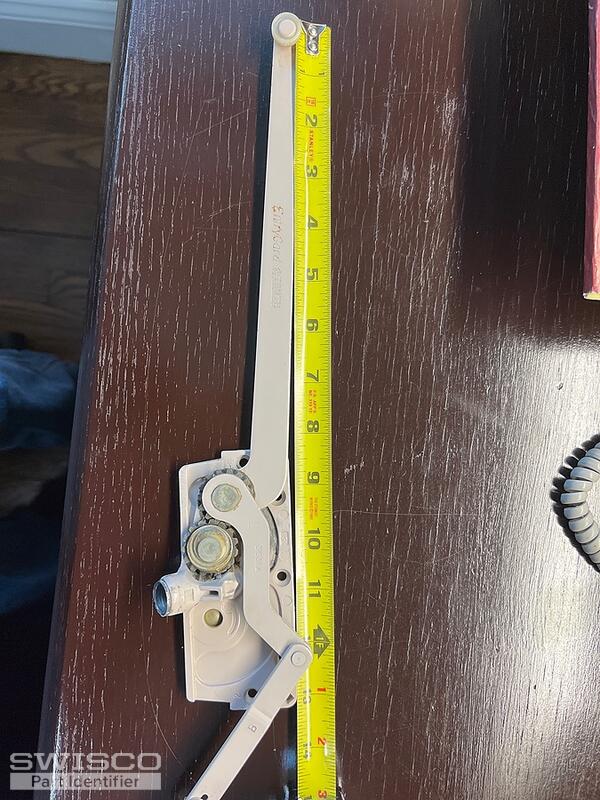

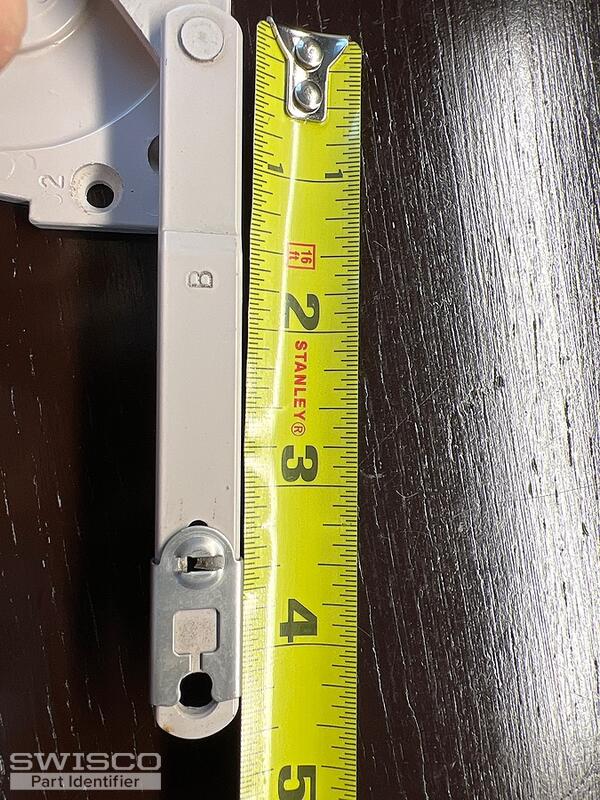

Please advise on the correct window operator. Long arm #40753 and short arm # 31538A. Looks like long arm from center of the mounting hole to the end of the arm is 10-3/4. Short arm from end to end looks like 4-7/16. However the arm looks to be angled up
Your Part number 39-031 indicates the link arm measures 4 7/16 inches overall with a downward offset. But from the product description photos I can't tell. Please advise what is the correct part I need and also include the operator handle and cover. This looks like to be tan in color

Emily · Accepted Answer

Hi there!

It looks like your link arm has an upward offset. We don't carry a version of the 39-031 with that kind of offset but you should still be able to get our operators to install by manipulating the arm to connect it to the sash bracket. For a handle and cover, see the 39-107 and 39-205.
