Truth hardware awning operator 16''
Home Owner from Newton, Ma
Dec 30, 2025 1:55 pm
if I can get away with it, I was just like to replace the rotary gear and handle. However, if I need to replace the whole awning operator, I will. The way that they have this installed I would have to remove the bottom sach of the window.. However, I'm not sure what part number this is. It could be 39-140. thanks, Randy
3 Replies
Quick Learner from Newton, ma
Dec 30, 2025 2:04 pm

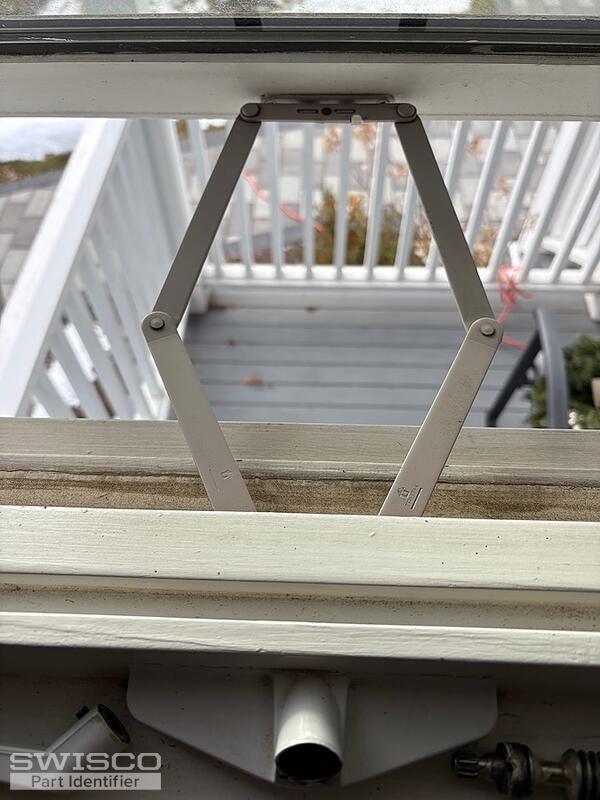

I couldn't find a place to submit photos so I'm doing it here. This is for a truth hardware awning operator. The scissor arms measure 16 inches when closed. The gearbox housing case measures 5 inches across. Hope this helps, thanks Randy.
4 user uploaded images
Casey from SWISCO
Jan 5, 2026 3:36 pm
Hello,
I agree that your photo resembles the 39-140 as long as the 16" arms match yours. With that being said, unfortunately, the entire operator will need to be replaced since the spline the handle attached to is broken. We apologize for the inconvenience, but please let us know if you need anything else.
Dimensions for 39-140
