Truth hardware crank awning

Start a new Discussion

Contractor from Chicago

Aug 5, 2024 2:58 pm

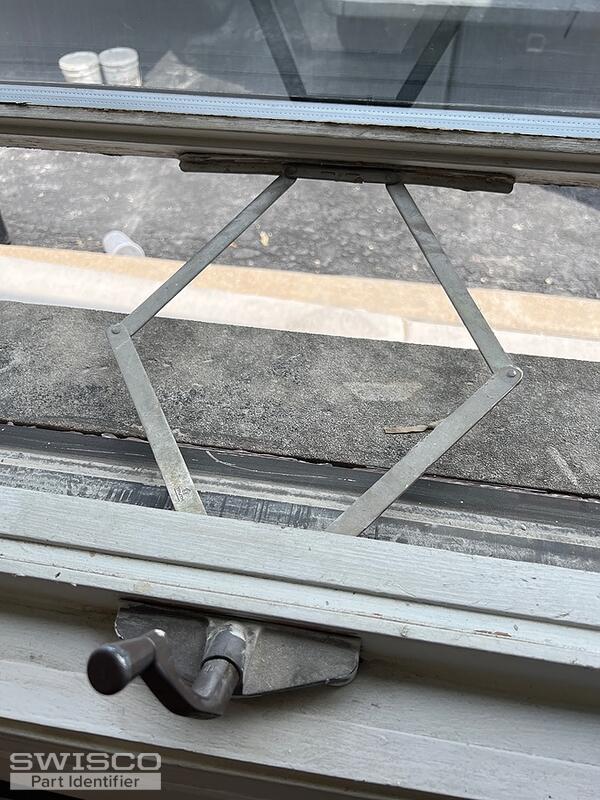

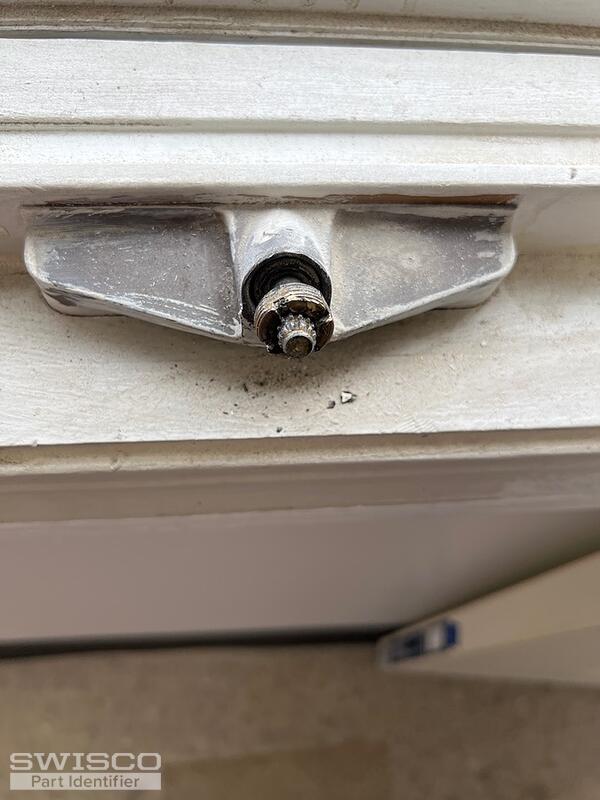

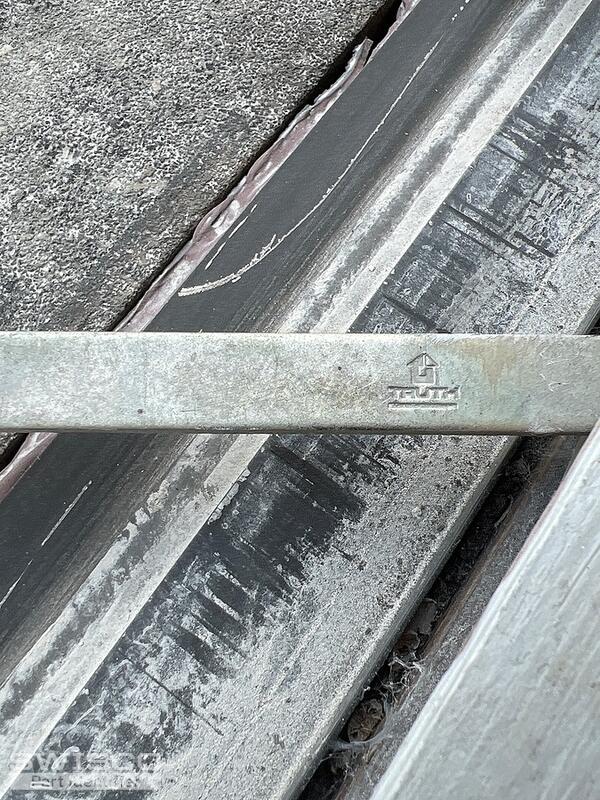

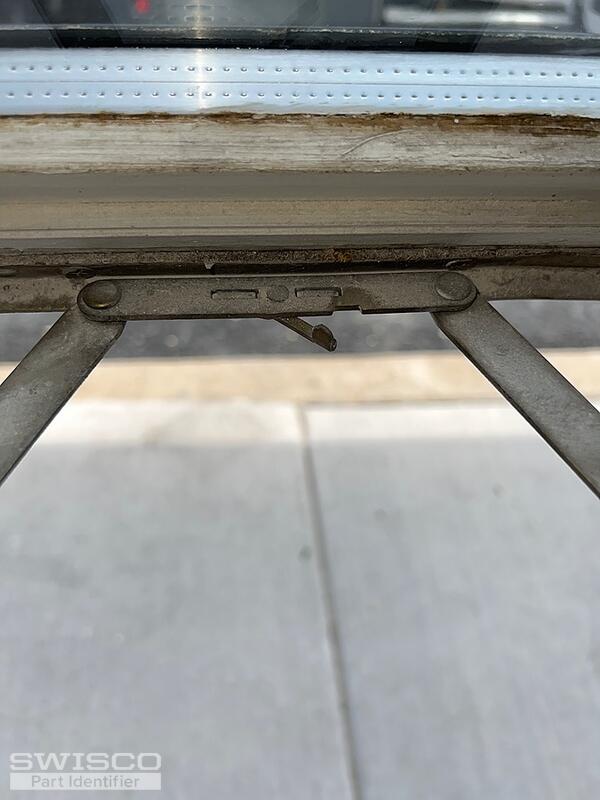

I need new crank mechanism for this awning window, please advise whatcha part to order,

Thank you,

Jason

5 user uploaded images

2 Replies

Jasmine from SWISCO

Aug 6, 2024 1:12 pm

Hi Jason,

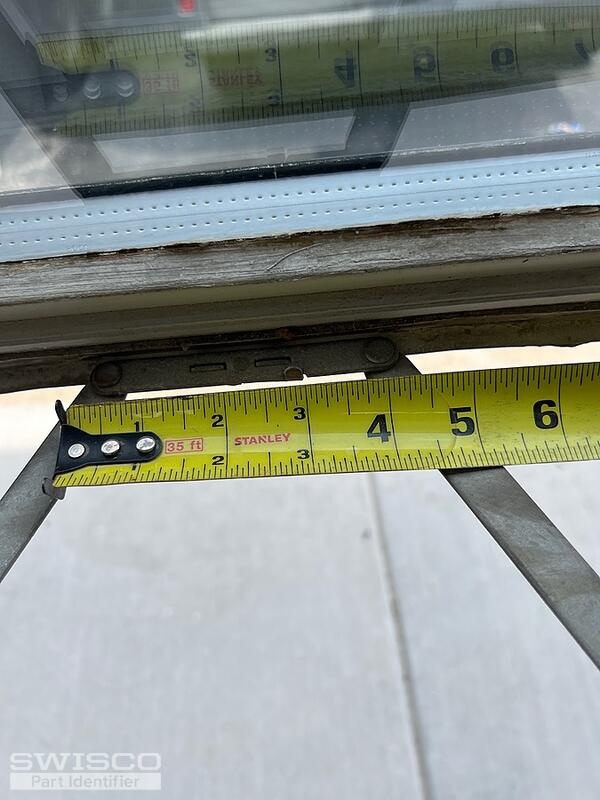

The awning window crank you have reminds me of the 39-083 Dual Arm Crank. Be sure to compare the wingspan measurement from your operator to confirm that this is the replacement you need.

Please also need the 39-170 Window Sash Bracket and the 39-114L Crank Handle.

Dimensions for 39-083

Dimensions for 39-083
