Truth operator

Home Owner from PA

May 1, 2021 4:58 pm

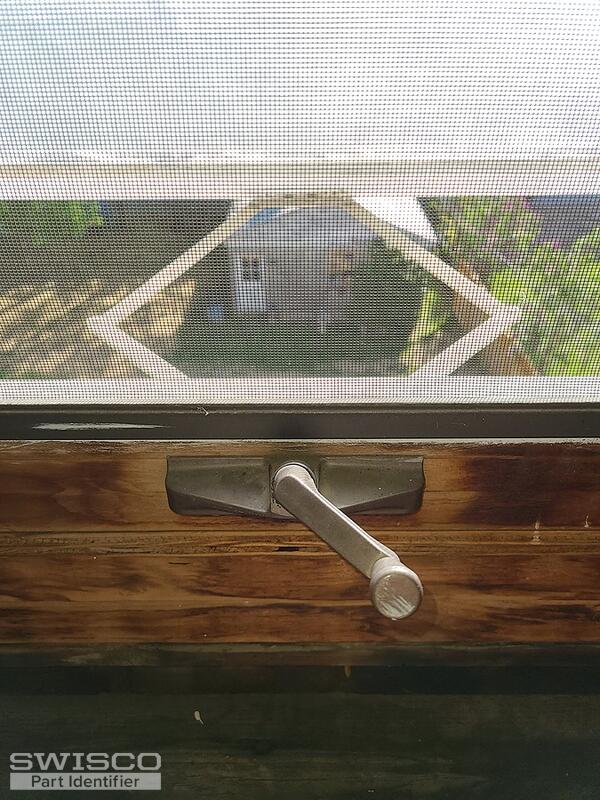

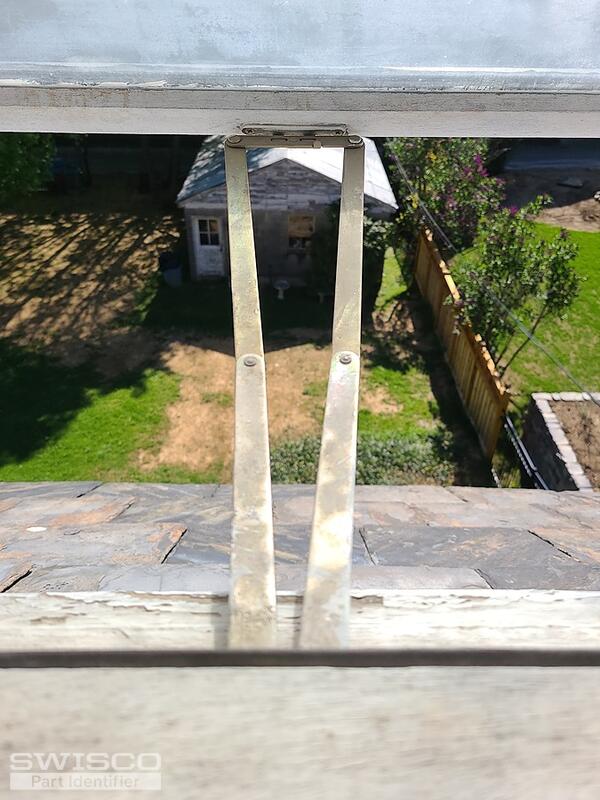

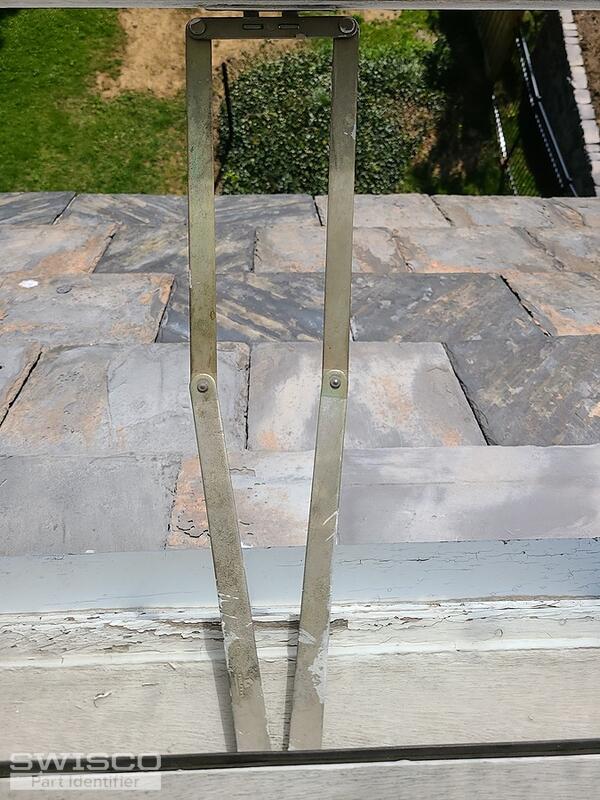

Trying to identify this truth casement window operator part number. Guessing its about 25 years old as thats when i bought this house. Measurement of arm linkage are 8 5/8" long outer leg rivot to rivot, 7 3/4" long inner leg measured from rivot to edge of sash. Hop8ng for part number and price availability.

Thanks

4 user uploaded images

3 Replies

Home Owner from PA

May 1, 2021 5:42 pm

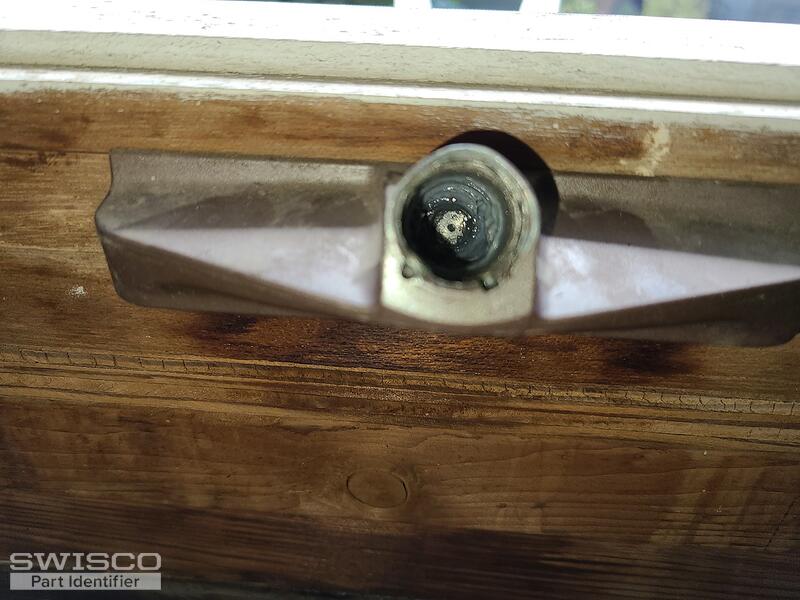

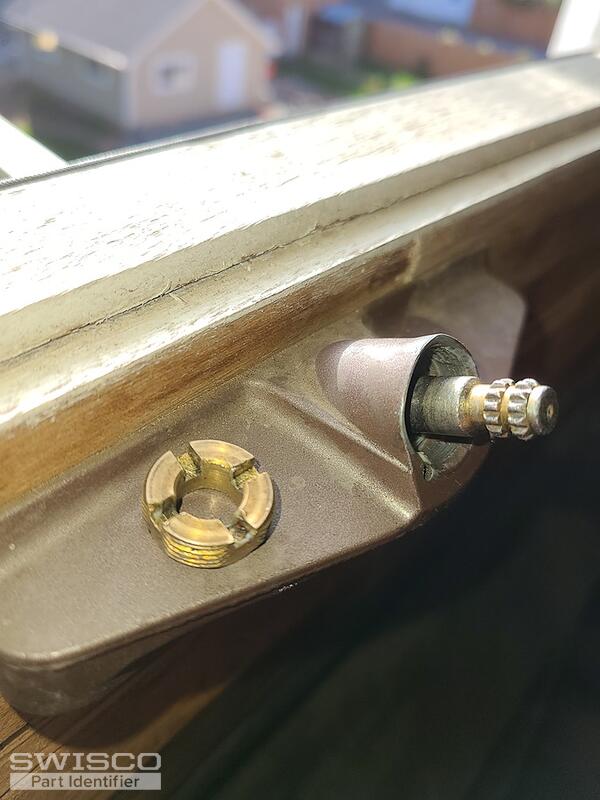

Any idea how to get the round threaded brass piece off /on that holds the spline in place? There seems to be a small hole on the surface where the handle meets the housing that pushes on inner threads of the housing. Any chance there is a set screw meant to hold round brass threaded piece in place? If so any idea what size type? The round piece on one of my operatora came off and spline is not working i cannot get the round piece to thread. Is there an easier way to lubricate thqn taking this round part off?
Thanks!

2 user uploaded images

Casey from SWISCO

May 3, 2021 1:34 pm

Hello,

The work mear show in your photo is not meant to come out and once it breaks, unfortunately, it's time to replace the operator. Take a look and compare our 39-083 awning operator to yours, which appears to be a promising replacement option. Thanks for posting!
