Home Owner from Newfane VT

May 12, 2026 7:08 pm

Hi--I think these windows date to the late 1980s. It's a single arm operator on a casement window. I would like to replace the entire operator, not just the handle. I think this is a right hand operator? But hopefully you can confirm what I need from the photos. Thanks very much.

2 user uploaded images

6 Replies

Jasmine from SWISCO

May 14, 2026 10:59 am

Hello,

The worm gear has become stripped from the base, so you'll need to replace the entire operator to repair the window. I'll need to see a photo of the arm(s), and how the operator is attached to the bottom of the swinging window sash, to identify the correct replacement.

Please let me know if you have any questions.

Home Owner from Newfane VT

May 14, 2026 3:00 pm

Thank you. I don't know if this will give you enough; I can also take a photo of the bottom of the sash where the operator is attached if you need it.

1 user uploaded image

Jasmine from SWISCO

May 14, 2026 3:32 pm

Your operator reminds me of the 39-032 EntryGard Dual Arm Operator. To confirm that this is the correct replacement, carefully look over the specifications and compare them.

The compatible hardware and accessories can be found tagged below.

Dimensions for 39-032

Home Owner from Newfane VT

May 21, 2026 10:47 am

Thank you. After taking measurements, I think you've identified the correct model, but the opposite side, so I'm going to order 39-031. Maybe it's good practice to also replace the handle -- do you have any opinion if that's necessary, based on these photos?

2 user uploaded images

Jasmine from SWISCO

May 21, 2026 12:12 pm

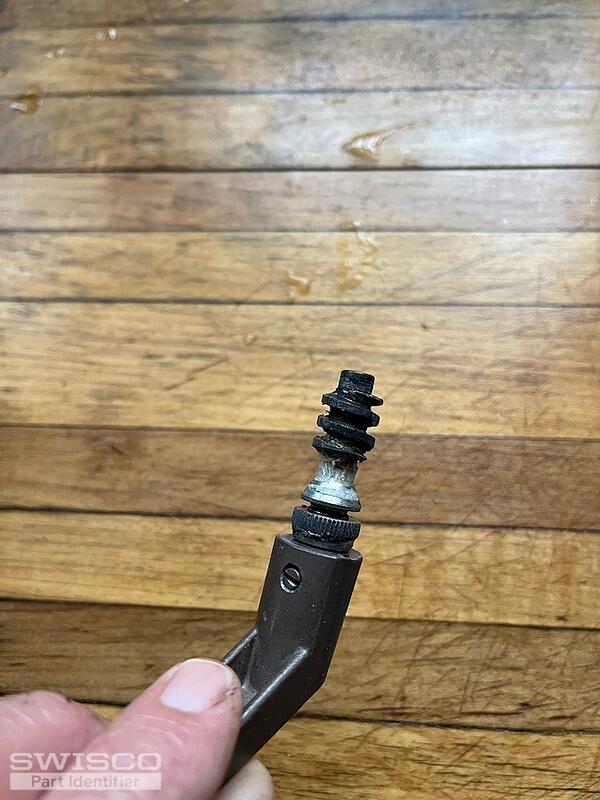

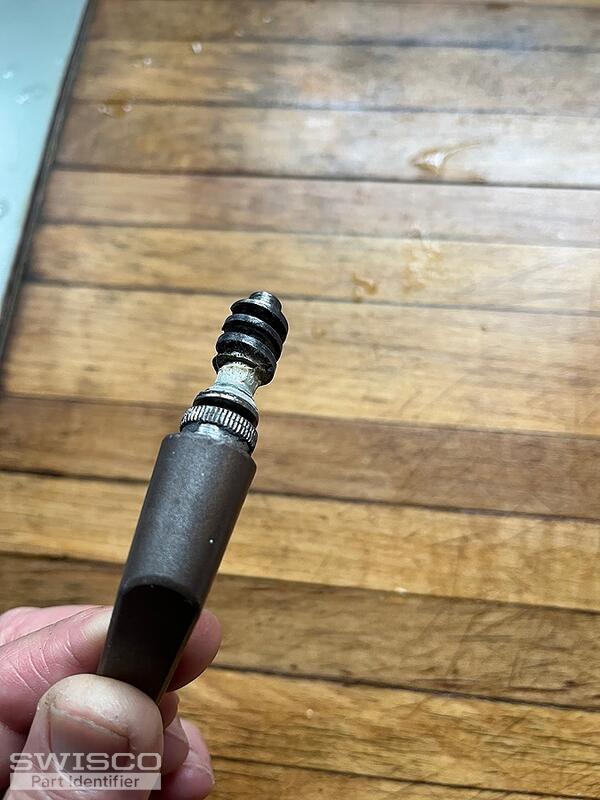

The piece sticking out of the handle is the gear worm from the operator. If you cannot remove it from the handle, you will need to replace it with one of the handles tagged below this thread.
