Truth window isn't closing

Quick Learner from WI

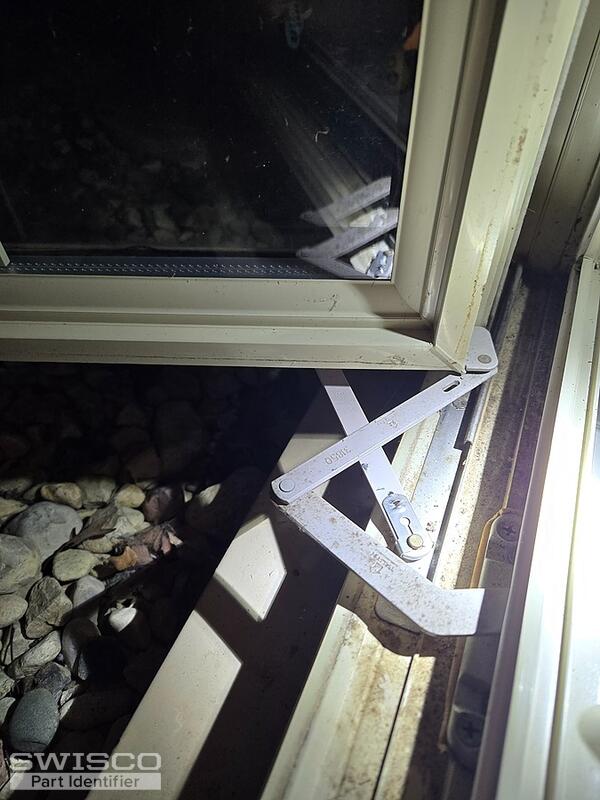

I have a truth casement window that is not closing tight.. the bar guide breaks because the window is so out of alignment. How do you adjust? It's the 31850 system.
1 user uploaded image
3 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thank you for reaching out to us. Please allow us to look further into this. We will reach out as soon as we have more information.

Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

You might need to have the window removed and reinstalled correctly. However, before you go through the expense of reinstalling the window try a few things first. The first thing I suggest is to remove the operator and try opening and closing the window manually by hand to see if the issue is with the operator.

Another idea is on some hinges the attachment stud can be turned using a small wrench. By turning the attachment stud on the hinge it can shift the window slightly. Lastly, try to relocate the hinges in the window by moving the hinge location to help square up the window to help it close properly.
