Trying to Repair Windows

Landlord from Lexington
Jun 22, 2017 10:49 am
I am having a hard time finding replacement parts. Please help if you can.

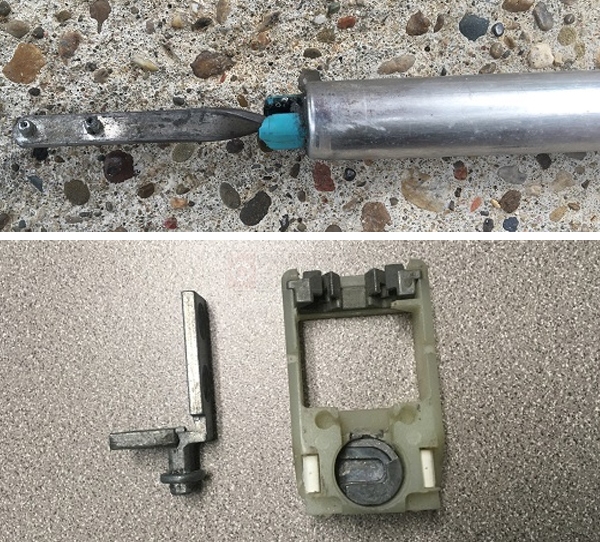

Picture 1: Balance tilt--2 sizes. Size 1 is 17 inches/4 oz. Size 2 is 24 inches/5.9 oz.

Picture 2: The diameter of both tilts

Picture 3: Lock shoe and I don't know the name.
User submitted photos of window hardware.
1 Replies
+ Add a Comment
Paul
Paul from SWISCO
Jun 26, 2017 1:46 pm
SWISCO
EXPERT
Please see our Series 600 spiral balances and 15-178 pivot shoe. I'm afraid I don't recognize the tilt bar. Can you give me its dimensions?
+ Add a Comment
Products and resources found in this discussion
17" Series 600 Spiral Tilt Window Balance
17" Series 600 Spiral Tilt Window Balance
S600-17
$8.42
24" Series 600 Spiral Tilt Window Balance
24" Series 600 Spiral Tilt Window Balance
S600-24
$9.47
Pivot Lock Shoe, Brown Brake Pad
Pivot Lock Shoe, Brown Brake Pad
15-178
$3.70
