new multi-contact lock handle set for patio door

Question

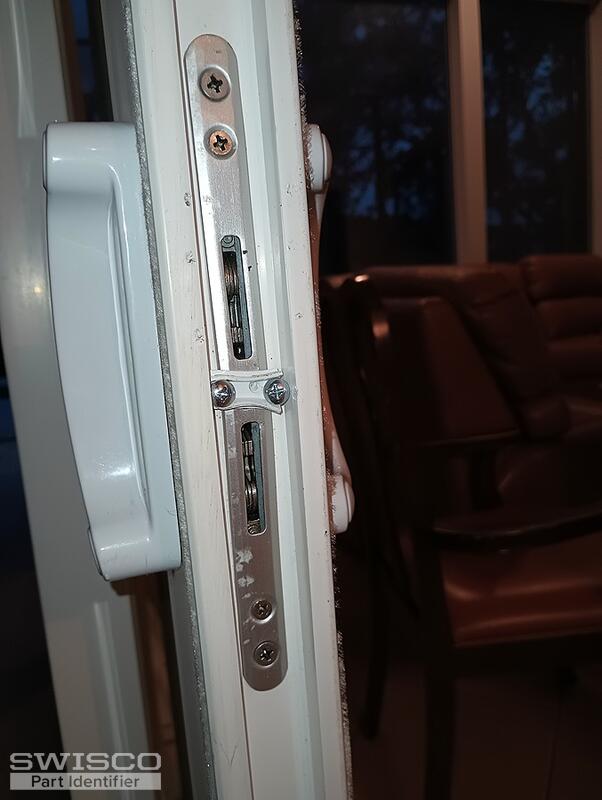

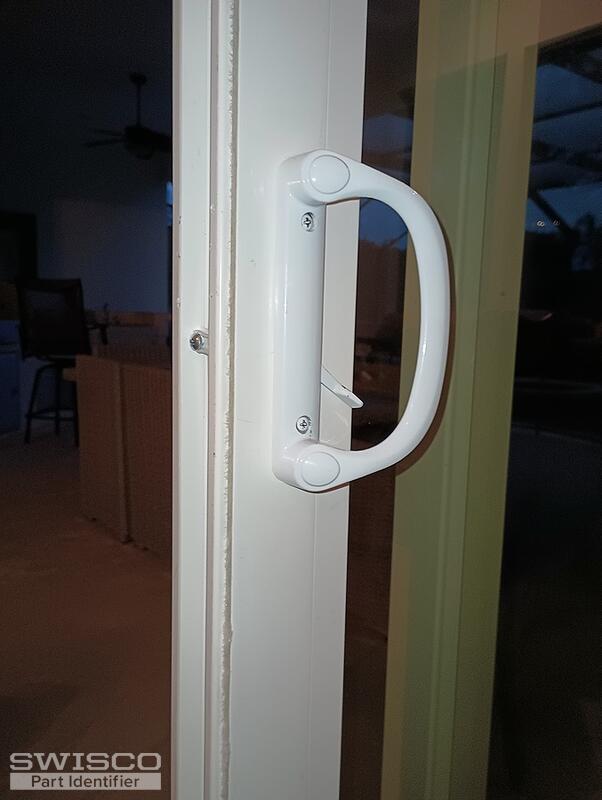

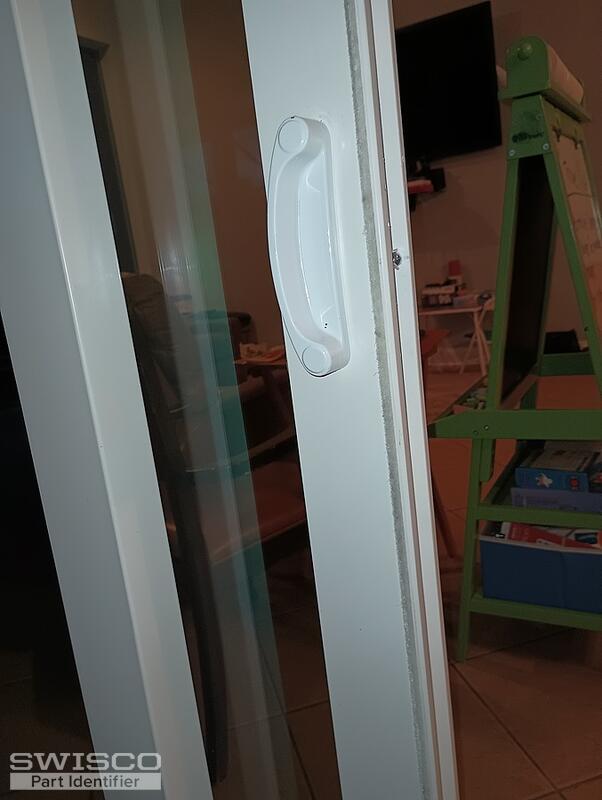

I have no idea what manufacturer this vinyl sliding glass door is and have been unable to find a new handle set that will work on it at Home Depot or Lowe's all I know is that the mortise measures 9 in top to bottom and it's a multi-point I took a few photos the handle set that is shown in these photos was some from Lowe's that were rigged into work but just keep breaking over and over and over I would love to find the correct handle set to go to this door please help Chris

Casey · Accepted Answer

Hello,

I can't be sure without seeing the original handle set but your mortise lock resembles the 82-238, which is commonly used with the 82-080 handle set. Keep in mind that the 4-15/16" hole spacing is a key dimension. Take a look at the specifications below and see what you think.

Alternate image for 82-238

Dimensions for 82-080
