Trying to determine what model to order

Quick Learner from Florida

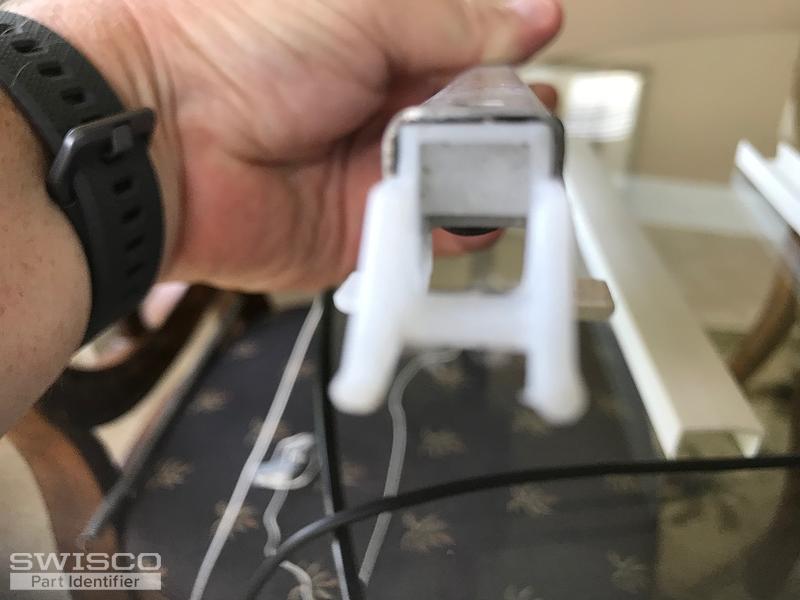

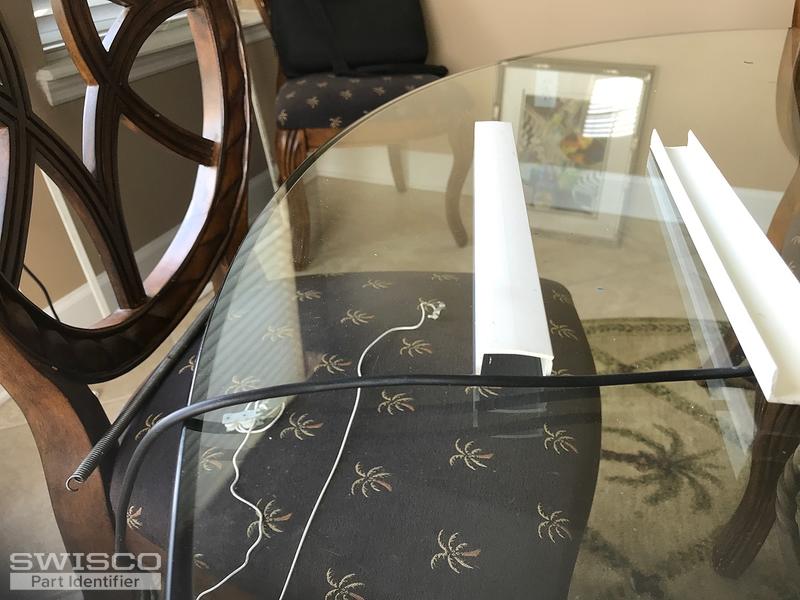

Need 24 of these that are stamped 28C (29" in length). Also need 2 with the exact same nylon ends that are stamped 26D (27" in length). Please help me determine the model # that corresponds with the correct nylon ends. Thank you. I will be placing my order through you
5 user uploaded images
10 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Your balance isn't made anymore, but I believe you can use our Series 380 to replace it. This has a 19-005 top and 15-005 bottom nylon fitting. I know they look a little different, but as long as their dimensions match up then this balance should repair your window.

Quick Learner from Florida
Thanks. I didn't put the dimensions but I think that shoe is 7/8 inch as opposed to 1 in. Product # 15-029 looks like it. Could that be the one I'm looking for?

If so is there an option to put my own ends and rivots on. If you think the other recommendation you had will work I'll try that
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for confirming! If your shoe is only 7/8" then you definitely want our 15-029 instead. We can supply this to you as a custom order, or you can buy our Series 380 and 15-029 separately, drill out the old shoe, then install the 15-029 yourself using a 62-005 rivet and 75-075 rivet tool. It's up to you! The video below will show you how we do it.

Quick Learner from Florida
Perfect. I want to go ahead and order these balances. Do I need to do via a custom order? Price wise is it better for me to custom order where everything comes put together ready to install or have all the balances, rivots, tops and shoes come separately and put together myself. Keeping in mind I'm ordering 30 of everything to replace in 15 windows.

Thanks for all your help
Clay
Tom
Tom from SWISCO
SWISCO
Expert

Makes perfect sense to me, Clay. I'll email you an order link and price quote right now for 30 balances but with a 15-029 shoe installed at the bottom. These will also be using a 2640 stamp option, which should match your old 26D. Two balances with a 2640 option can carry 19 through 26 pounds.

Please note that the price will probably go up if you order fewer than 30. An order of that many qualifies you for a bulk discount that won't apply for lower quantities. I can go into more detail if we happen to cross that bridge, though, I just wanted to let you know ahead of time just in case.

Quick Learner from Florida
One correction on the price quote:
Give me 30- 28C balances not 26D
Then need 2-26D balances

All with the tops and shoes the same as you've outlined in the order form. Can you redo this for me?

Thanks, Tom
Tom
Tom from SWISCO
SWISCO
Expert

Sure, that's no problem at all. I'll email you a new order link for those extra two. To reiterate, our version of the 26D stamp is 2640, and the 26C stamp would similarly be 2630.

Quick Learner from Florida
Tom, the two order forms you've sent me are reversed. I need them redone.

To clarify, I need:
30 of the 2830 channel balance with 19-005 top and 15-029 bottom

2 of the 2640 channel balances with 19-005 top and 15-029 bottom

As soon as I get these I will process my order
Tom
Tom from SWISCO
SWISCO
Expert

My apologies, I'll switch that over right now.
