Trying to figure out spring system in old solid wood double hung windows

Home Owner from Bay Area, California
Jun 5, 2024 2:16 am

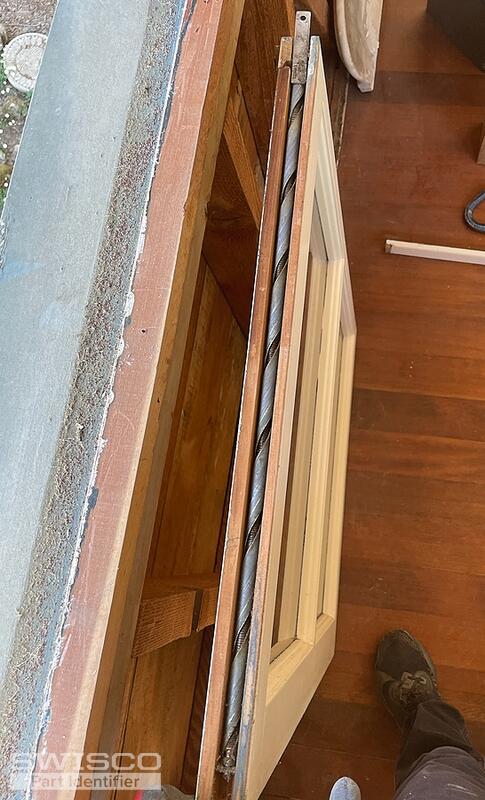

Hi, I have 2 double hung windows (they do not tilt). They are old and solid wood, one does not open and the other does not open well. I removed the window today to understand the spring system, and took some photos. Do you know what type of spring system this is. And if so, do you carry replacement parts?

Please let me know if you need any other information. Thank you!
IMG_7846 IMG_7845 IMG_7833 IMG_7941
4 user uploaded images
1 Replies
Tom
Tom from SWISCO
Jun 6, 2024 3:02 pm
SWISCO
EXPERT

Hello! I do recognize this spring system, yes. This is a very, very old type of balance that hasn't been made for the better part of the last century. The good news is that we have a more modern equivalent that should work just as well with minor alterations. See our Series 500 spiral balance. This can install in the track at the top with a screw, and then mount to the bottom of the sash using our 17-012 bracket (non-refundable).

Your next step is to determine size. First, measure the space available to confirm that you can fit a 9/16" diameter tube where it needs to go. Next, to determine length, measure the height of the visible glass and add 3" for the bottom sash and only 1" if it's the top sash. For example if the visible glass on your bottom sash is 20", you want a 23" long balance; if the top sash visible glass is also 20", you only want 21".

Lastly, to determine the proper spring calibration, you will need to weigh your sash on a scale. We have a chart on every Series 500 store page that tells how much weight each option supports, so all you have to do is pick accordingly.
