Trying to Replace Coil Balances

Quick Learner from Garner NC

Jul 11, 2020 12:39 pm

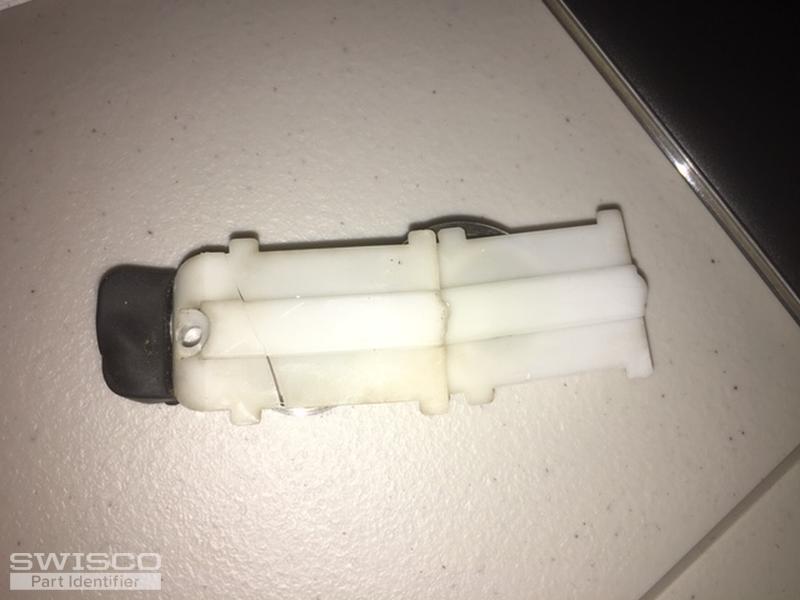

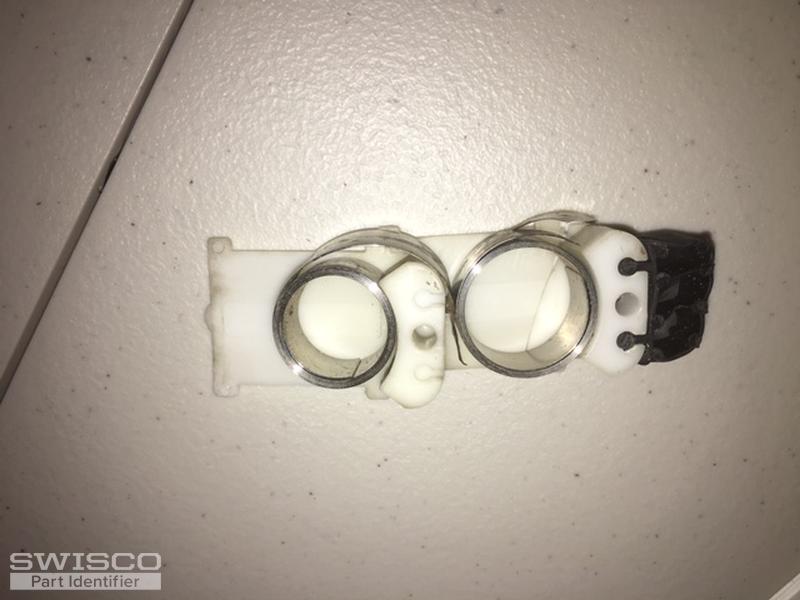

This is a single pane window. And I was wanting to replace all the hardware on both sides. These are Pictures of the existing hardware. If you could help me on what I would need in order to repair my windows. Thanks for your help.

Anthony

5 user uploaded images

2 Replies

Bob from SWISCO

Jul 14, 2020 1:51 pm

This looks like a 15-111 Pivot Shoe. This shoe uses either our Series 160 1/2" Thick Coil Balances or our Series 165 3/8" Thick Coil Balances. Compare their thickness with your old springs to see which you need.
