This pivot bar is from the lower sash window. I could not find any numbers or names for the window manufacturer or the pivot bar itself.
I have 14 windows with 2 pivot bars per window. Most are rusted due to our Florida salt air and need to be replaced.
Thanks for your help.
Susan Shirley
3 Replies
Home Owner from Merritt Island, Florida
Mar 15, 2016 5:24 pm

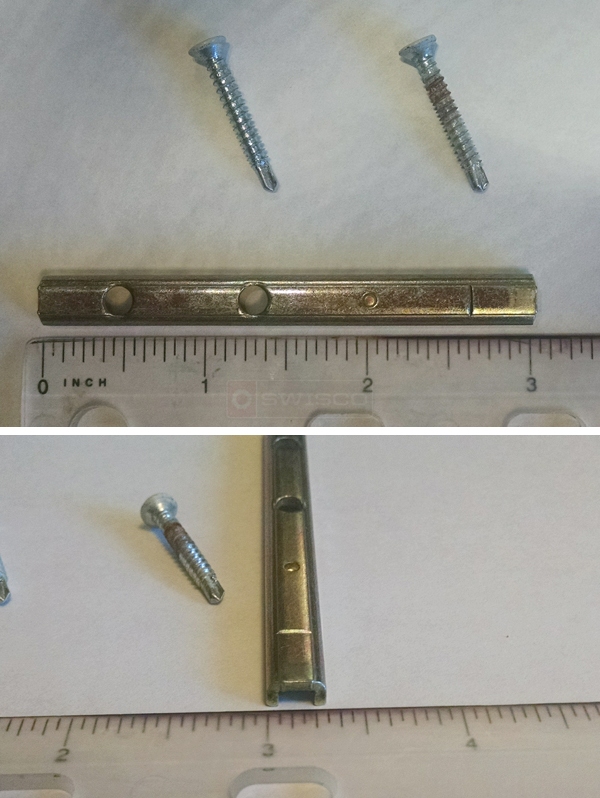

The pivot bars are 3 inches long and have 2 screw holes.
Paul from SWISCO
Mar 17, 2016 1:34 pm
From your photos, looks like the screws go through and tighten to the sash itself. If so, you should consider our 26-063. This has elongated holes, so the screw can pass through the pivot bar. Just remove the set screw that comes with it.
